GLUX9701BSI

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0229
Origin: China
Manufacturer: Gpixel Inc.
Resolution1.3 MPix
Pixel number (H × V)1280 × 1024
Pixel size9.76 × 9.76 µm
Format1"
Format12.493 × 9.994 mm
Format (Diameter)16 mm
Frame Rate30 @ HDR, 25 @ low noise fps
ShutterRolling
ChromaMonochrome
Photosensitive area12.493 × 9.994 mm × mm
Linear Full Well Capacity50 @ HDR LG ke
Temporal Noise1.5 @ HDR HG, 0.8 @ low noise e
Dynamic range90 @ HDR dB

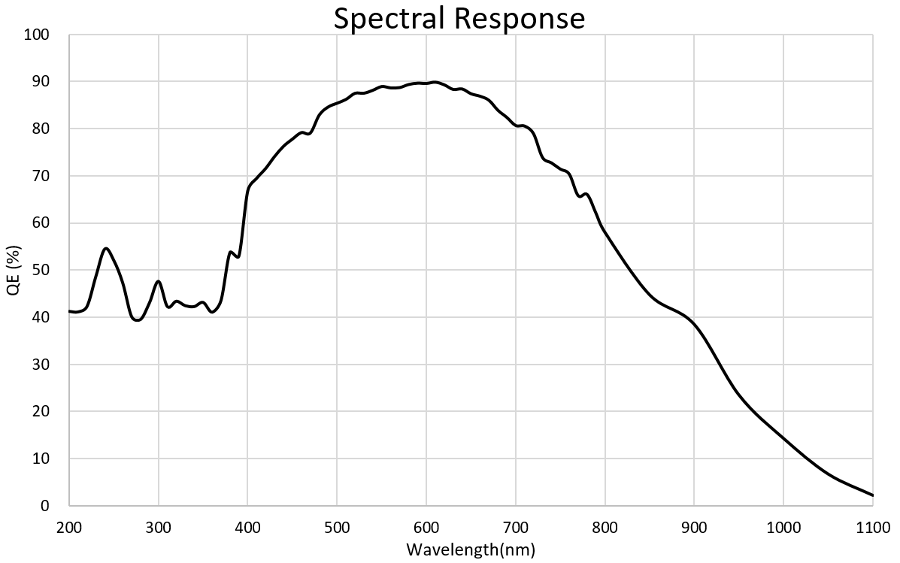

Peak QE90 @ 550 nm %
Angular ResponseT. B. D. °
Dark currentT. B. D. e/pixel/sec
Supply Voltages3.3 V for analog, 1.8 V for digital
Output Format4 pairs of sub-LVDS or 4 pairs of MIPI
Channel Multiplexing4/2/1
Power Consumption350 @ HDR, 18 @ low noise mW

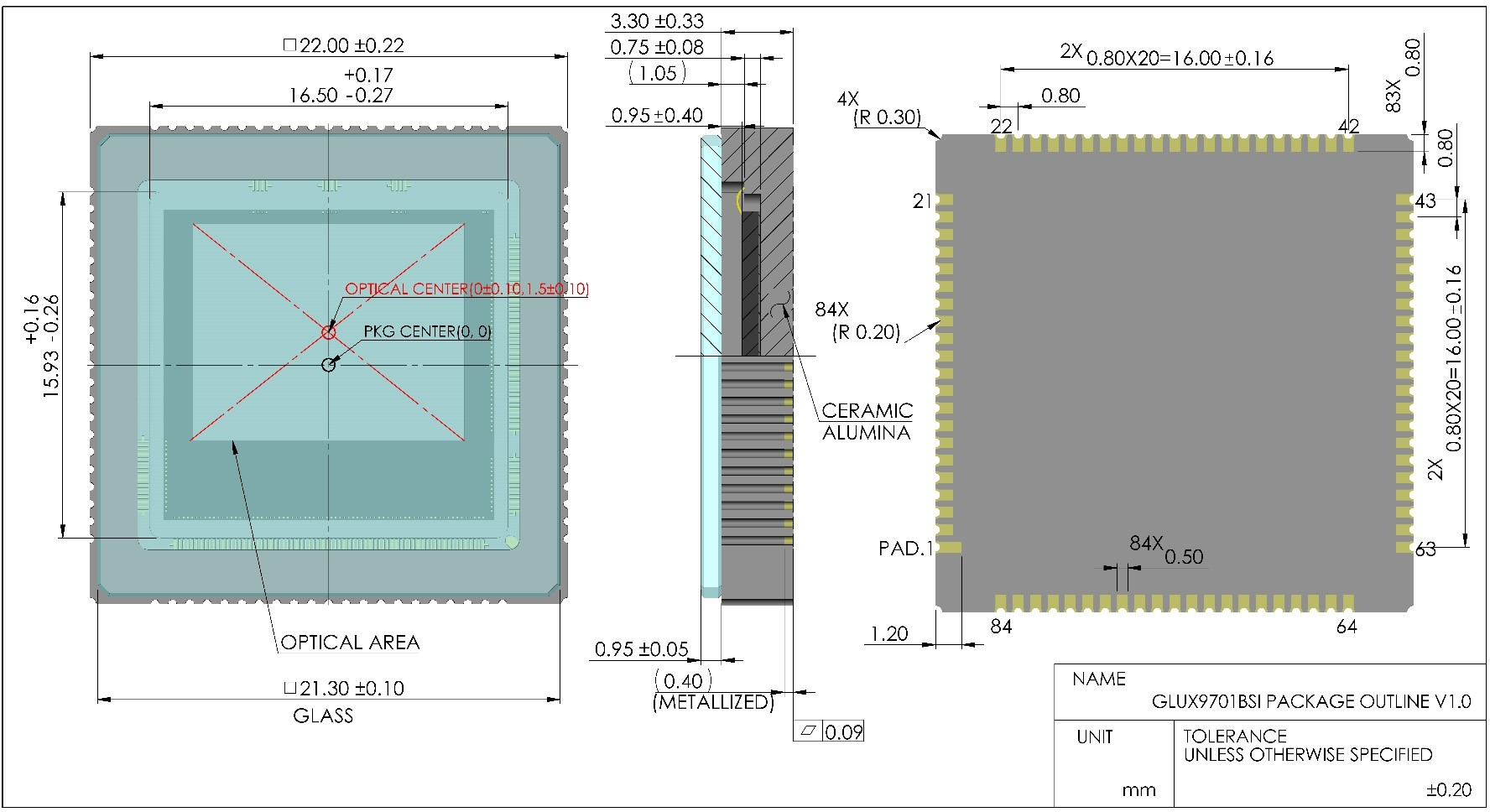

Package84-pin CLCC
Preliminary
Evaluation board available

To the product series

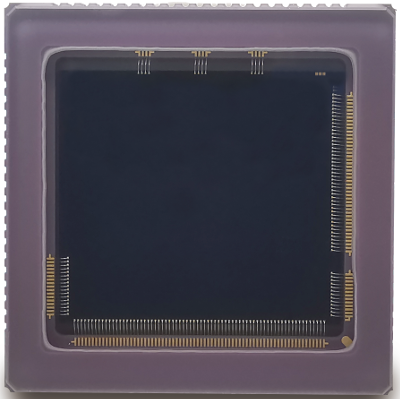

GLUX9701BSI 9.76 µm 1.3 MP Rolling Shutter image sensor. This sensor is available in different versions, for example:

  • GLUX9701BSI-BBM-NCN-ARX: BSI image sensor, 84-pin CLCC package. Removable D263T glass lid without AR coating on both sides.
  • GLUX9701BSI-BBM-NCN-AUX: BSI image sensor, 84-pin CLCC package. UV epoxy sealed D263T glass lid without AR coating on both sides.

Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!






Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics




More pictures of the product:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.21.2022
