LM25HC-VIS-SW

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0296
Origin: Japan
Manufacturer: Kowa
Focal length25 mm

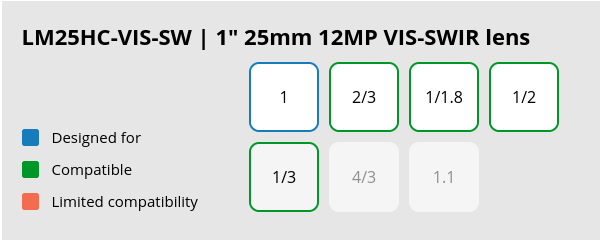

Sensor format1 ″
Pixel size3.1 µm
MountC-Mount
Iris ControlManual
ApertureF1.8–16
TypeFixfocus
Design WavelengthVIS–SWIR (450–2000) nm
Focus range [m]0.2–∞ m
Focus ControlManual
Shooting range at MOD, horizontal29.2 mm
Shooting range at MOD, vertical22 mm
Resolution12 MPix
Distortion−0.97 %
Backfocus [mm]24.5 mm
Filter thread [mm]M27 × P0.5
Dimension [mm]Ø34 × 65.5
Weight160 g
Operating Temperature−10 °C – +50 °C

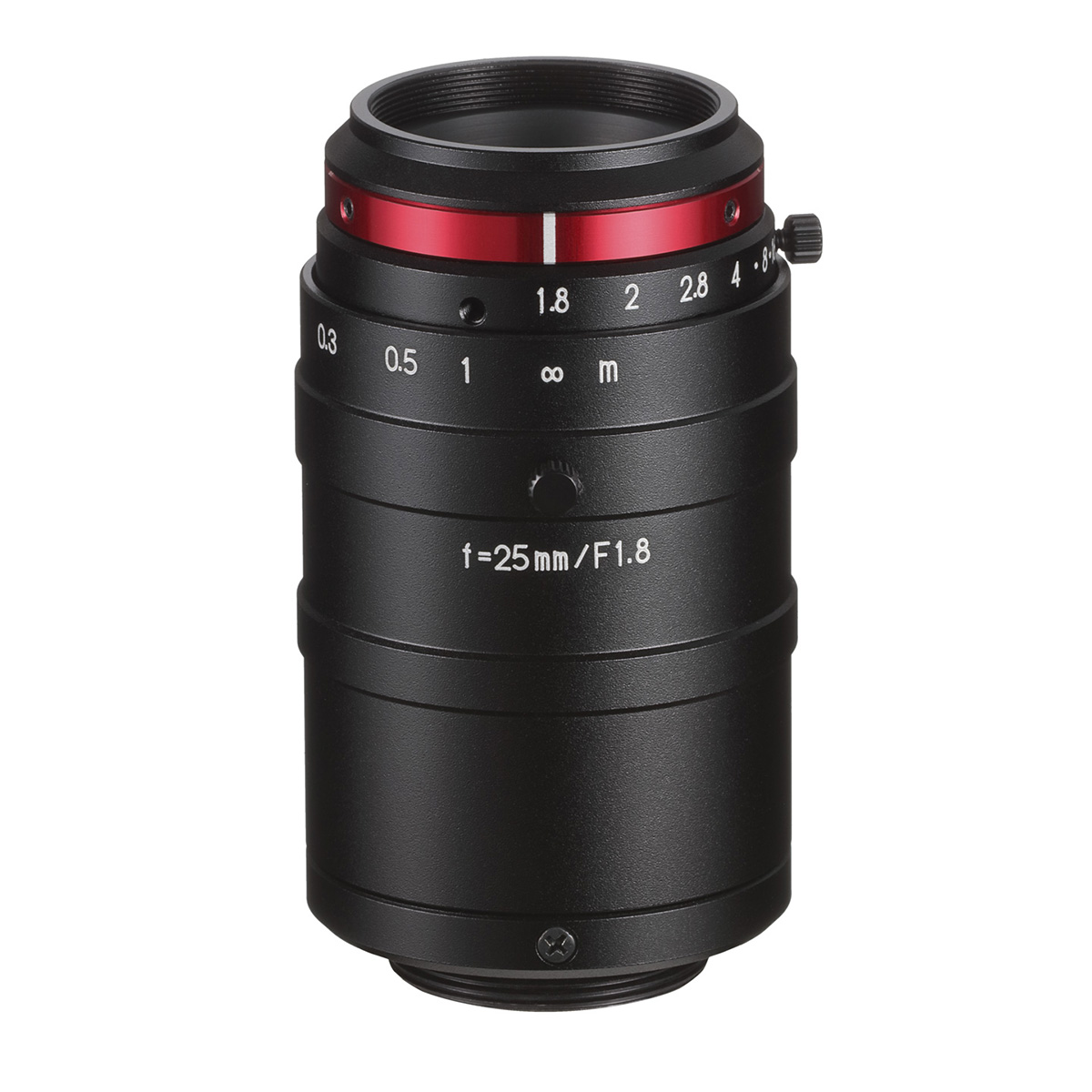

Side view lens

To the product series

  • 1" 12 Megapixel C-mount industrial lens
  • For sensors with a pixel size of 3.1 µm and larger
  • Suitable for Sony IMX990, IMX991 sensors and many more
  • High performance compact lens
  • Very low distortion







Documents for download:

Datasheet
Field Curvature / Distortion
MTF VIS
MTF SWIR
Relative Illumination
Transmission data

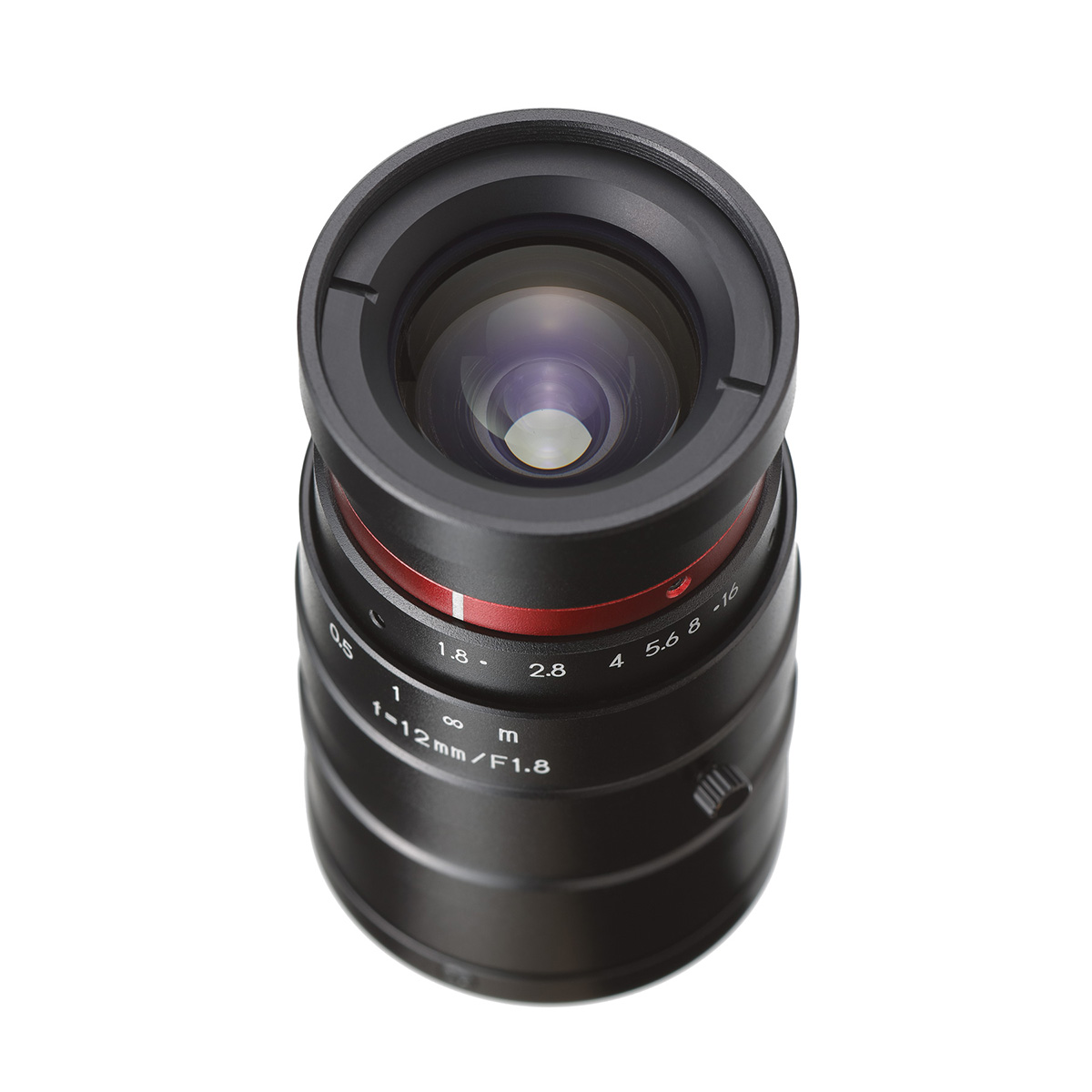

More pictures of the product:



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 08.19.2021
