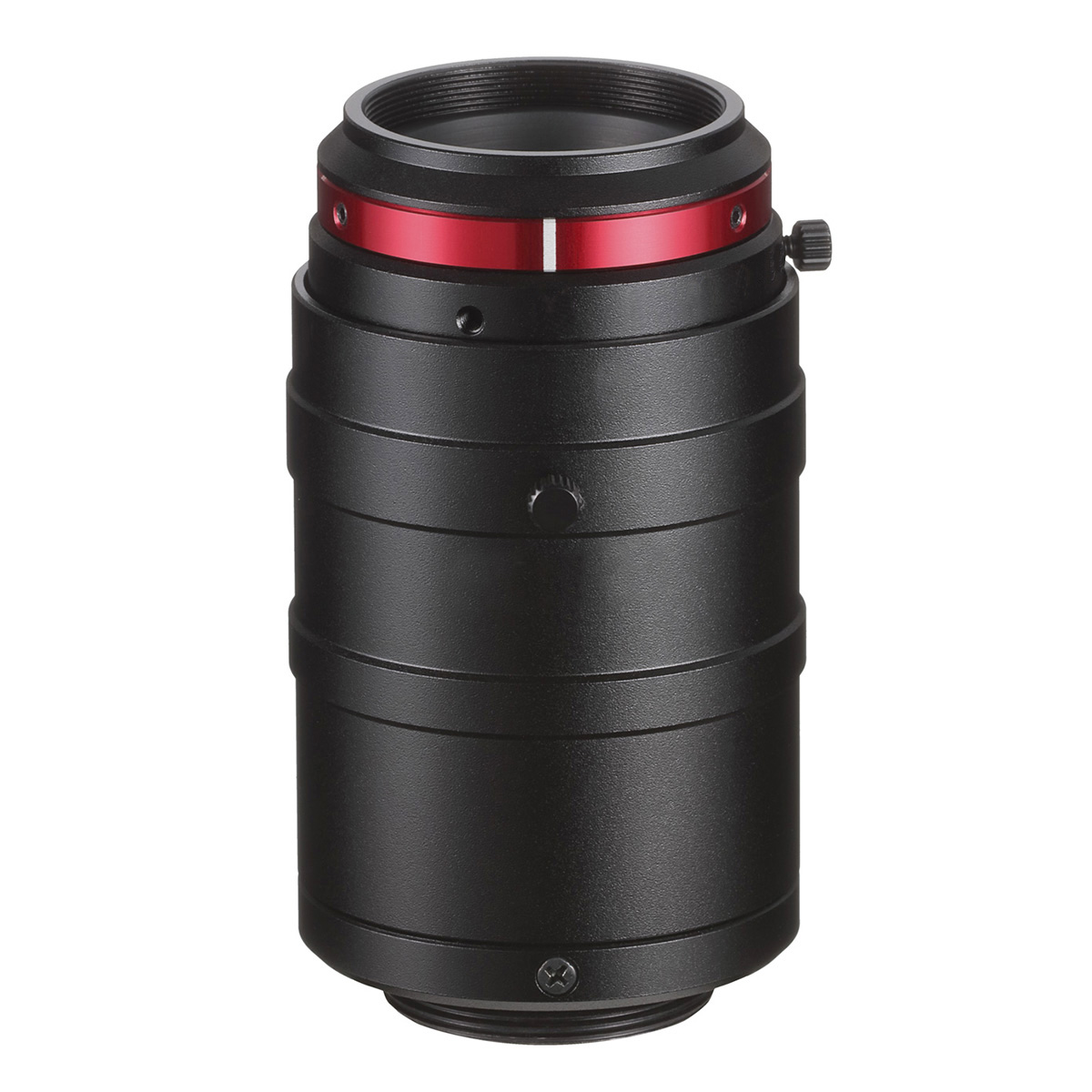

| Description | Lens by Kowa |
| Articlenumber (Eureca): | 06.17.0295 |
| Origin: | Japan |
| Manufacturer: | Kowa |
| Focal length | 16 mm |
| Sensor format | 1 ″ |
| Pixel size | 3.1 µm |
| Mount | C-Mount |
| Iris Control | Manual |
| Aperture | F1.8–16 |
| Type | Fixfocus |
| Design Wavelength | VIS–SWIR (450–2000) nm |
| Focus range [m] | 0.2–∞ m |
| Focus Control | Manual |
| Shooting range at MOD, horizontal | 174 mm |
| Shooting range at MOD, vertical | 129 mm |
| Resolution | 12 MPix |
| Distortion | −1.6 % |
| Backfocus [mm] | 15 mm |
| Filter thread [mm] | M30.5 × P0.5 |
| Dimension [mm] | Ø36 × 78.15 |
| Weight | 175 g |
| Operating Temperature | −10 °C – +50 °C |
Example photo
Documents for download:
Datasheet
Field Curvature / Distortion
MTF VIS
MTF SWIR
Relative Illumination
Transmission data

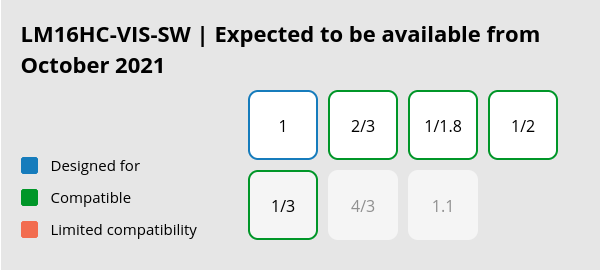

Compatible sensor sizes (inch)
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 08.18.2021
