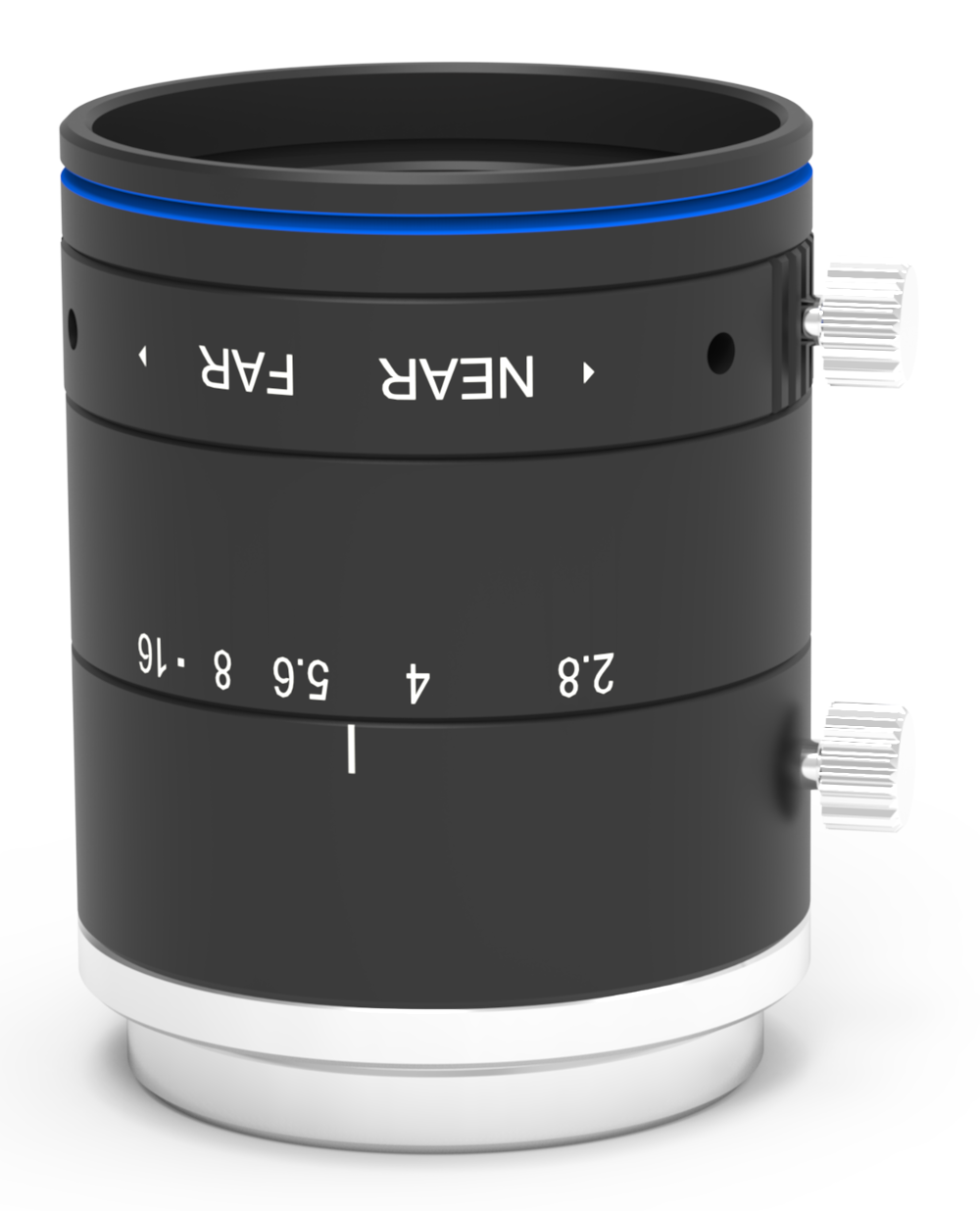

OPT-COB2528

DescriptionCobra2 Fixed Focal Length Lenses
Articlenumber (Eureca):06.23.0156
Origin: China
Manufacturer: OPT
MountC
Focal length25 mm
Aperture2.8–16
Image circle11 mm
Working Distance150–∞ mm
Filter threadM27×P0.5
Distortion0.15 %
Backfocus [mm]16.63 mm
Weight0.05 kg
MountC
FOV angle horizontal (1/3″)11.14 °
FOV angle vertical (1/3″)8.46 °
FOV angle across (1/3″)13.85 °
FOV angle horizontal (1/2.5″)13.31 °
FOV angle vertical (1/2.5″)9.94 °
FOV angle across (1/2.5″)16.50 °
FOV angle horizontal (1/1.8″)16.49 °
FOV angle vertical (1/1.8″)12.31 °
FOV angle across (1/1.8″)20.40 °
FOV angle horizontal (2/3″)19.43 °
FOV angle vertical (2/3″)16.23 °
FOV angle across (2/3″)25.13 °

To the product series

  • Compact design: Ø 29 mm diameter compatible with camera size; lens total length < 42 mm
  • High resolution: Full FOV resolution up to 230 lp/mm; compatible with cameras of pixel size ≥ 2.2 µm and sensor format ≤ 2/3"(Ø 11 mm)
  • Wide spectrum range: 400–1,000 nm optical coating spectrum; compatible with VIS and NIR band
  • Low distortion: TV distortion < 0.2 %
  • High Relative Illumination: Chief ray angle < 5°. Matching with cameras enables to realize high evenness image.

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens

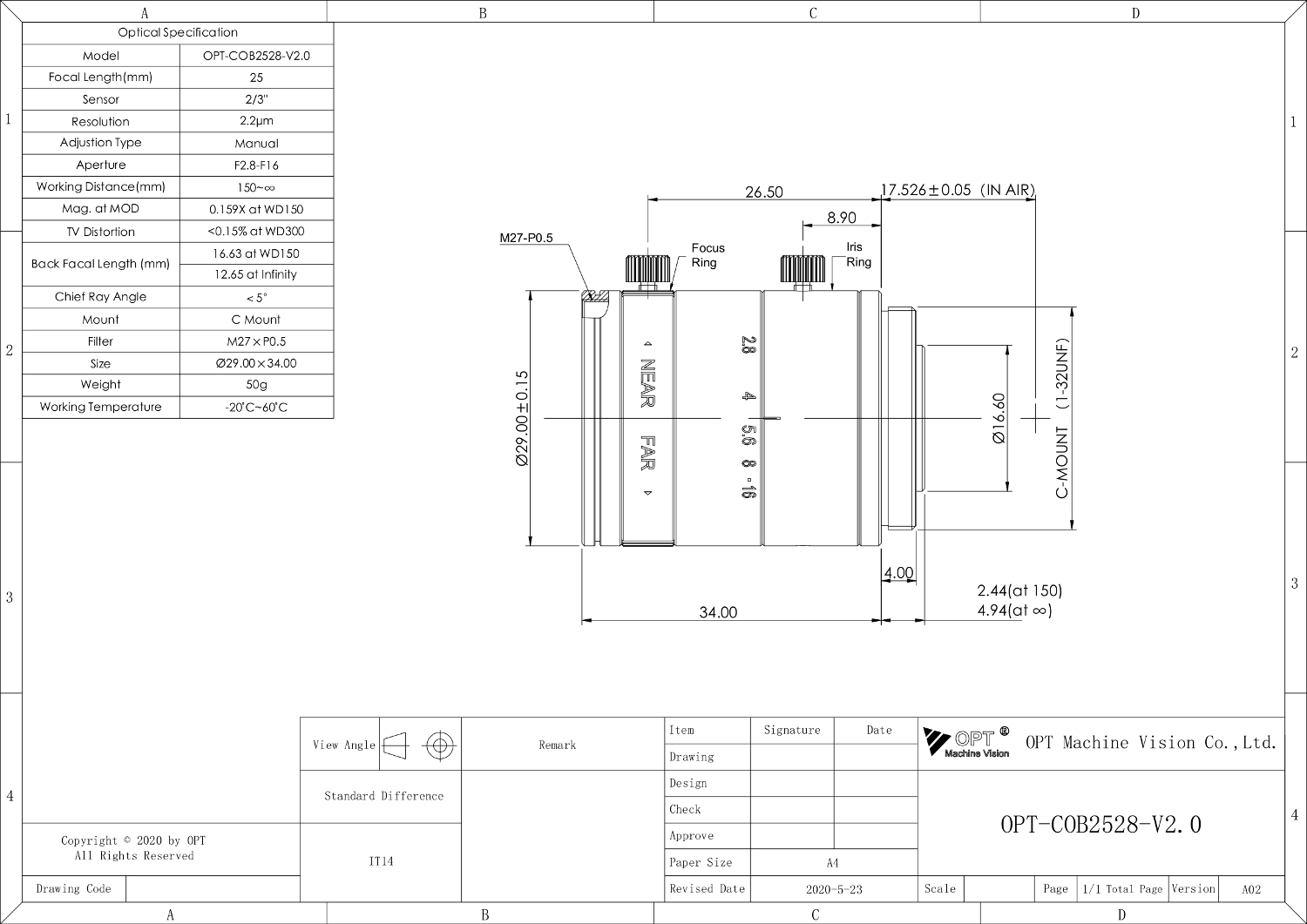

Dimensional Drawnig of the lens

Dimensions


Other versions of the article and matching products:

  • OPT-COB1628: same series, next smaller focal length (16 mm)
  • OPT-COB3528: same series, next larger focal length (35 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.03.2021
