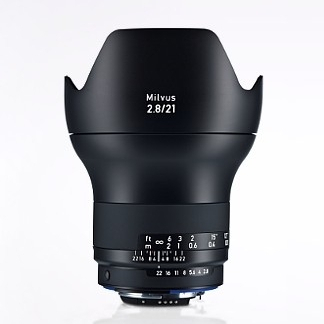

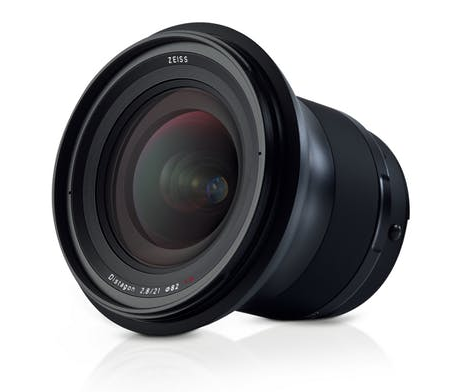

Milvus 2.8/21 ZF.2

DescriptionSLR Lens by Carl Zeiss
Articlenumber (Eureca):06.11.0051
Origin: Germany
Manufacturer: Carl Zeiss
DesignationMilvus 2.8/21 ZF.2
Manufacturer ID2096-548
Focal length21 mm
Aperture range2.8–22
Format compatibilityFull Frame
Focus range [m]0.22–∞ m
Focus range [inch]8.66–∞ ″
Min. free working distance [m]0.09–∞ m
Min. free working distance [inch]3.54–∞ ″
Angular Field diag. / hor. / vert.90 / 81 / 59 ° (24 × 36 mm² Format)
Diameter of image field [mm]43 mm
Diameter of image field [inch]1.69 ″
Image ratio at MOD1:5

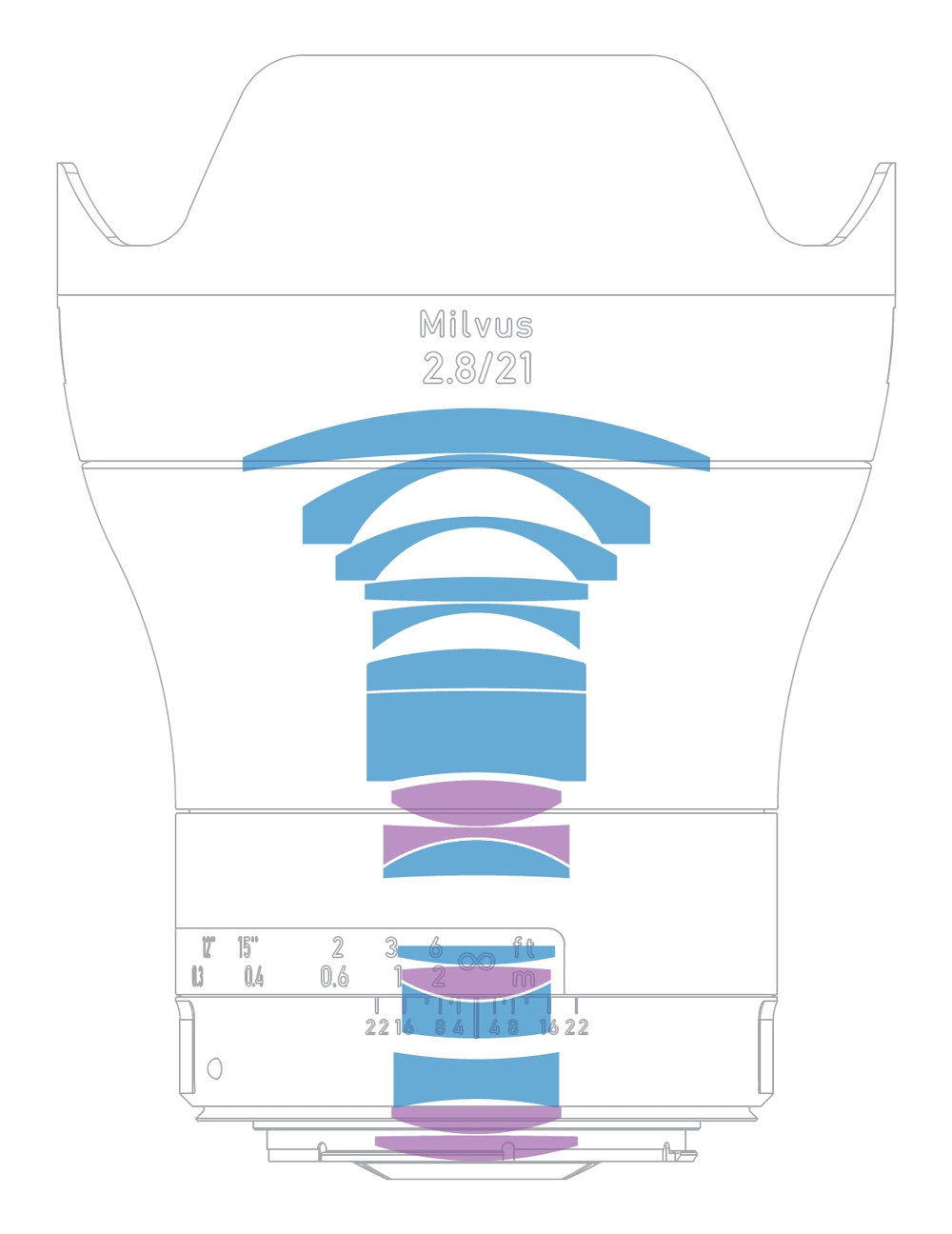

Lens elements / Groups16 / 13

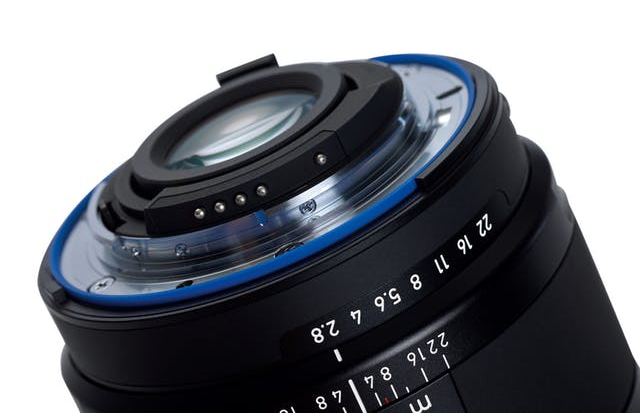

Flange focal distance [mm]46 mm
Flange focal distance [inch]1.83 ″
Entrance pupil position (in front of image plane) [mm]106 mm
Entrance pupil position (in front of image plane) [inch]4.17 ″

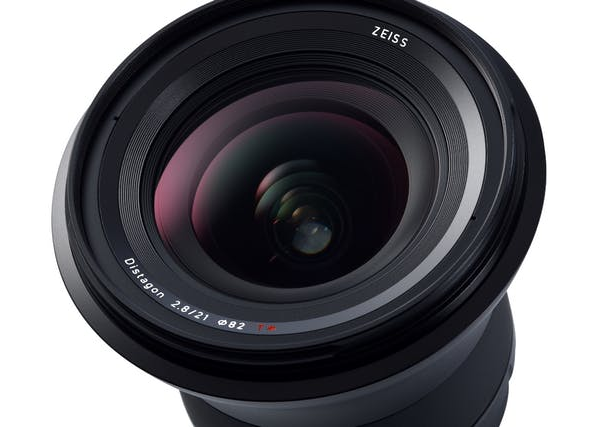

Filter threadM82 × 0.75
Rotation angle of focusing ring (inf – MOD)124 °
Diameter max. [mm]95 mm
Diameter max. [inch]3.75 ″
Diameter of focusing ring [mm]69 mm
Diameter of focusing ring [inch]2.74 ″
Length (with lens cap) [mm]110 mm
Length (with lens cap) [inch]4.31 ″
Length (without lens cap) [mm]93 mm
Length (without lens cap) [inch]3.64 ″
Weight735 g


To the product series

Master of horizons.

When the horizon seems endless, the ZEISS Milvus 2.8/21 is in its element. The super wide-angle lens stages wide landscapes and breathtaking backdrops.

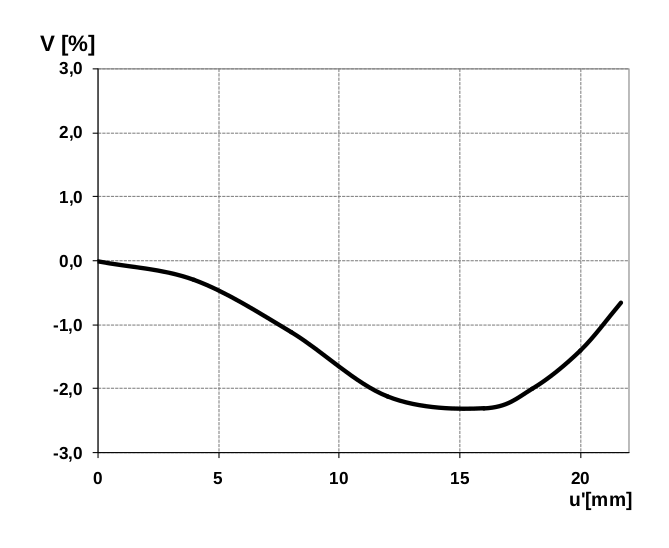

The super wide-angle lens ZEISS Milvus 2.8/21 from the ZEISS Distagon type is the best in its class. Thanks to the aperture of 2.8, the reflection-free and practically distortion-free super wide-angle lens is perfect for spectacular compositions with great variety, dramatic contrasts and bright colors. The further optimization of the lens coating ensures an even lower tendency to ghost images and flare effects, even in critical lighting conditions.

Documents for download:

Data sheet

Other versions of the article and matching products:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.20.2022
