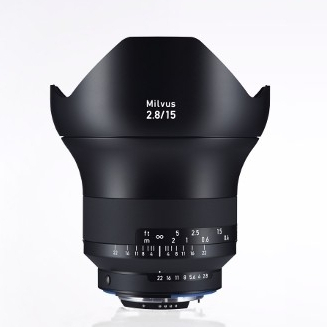

Milvus 2.8/15 ZF.2

DescriptionSLR Lens by Carl Zeiss
Articlenumber (Eureca):06.11.0049
Origin: Germany
Manufacturer: Carl Zeiss
DesignationMilvus 2.8/15 ZF.2
Manufacturer ID2111-789
Focal length15 mm
Aperture range2.8–22
Format compatibilityFull Frame
Focus range [m]0.25–∞ m
Focus range [inch]9.84–∞ ″
Min. free working distance [m]0.09–∞ m
Min. free working distance [inch]3.54–∞ ″
Angular Field diag. / hor. / vert.110 / 100 / 76 ° (24 × 36 mm² Format)
Diameter of image field [mm]43 mm
Diameter of image field [inch]1.69 ″
Image ratio at MOD1:9
Lens elements / Groups15 / 12
Flange focal distance [mm]46 mm
Flange focal distance [inch]1.83 ″
Entrance pupil position (in front of image plane) [mm]113 mm
Entrance pupil position (in front of image plane) [inch]4.43 ″
Filter threadM95 × 1.0
Rotation angle of focusing ring (inf – MOD)119 °
Diameter max. [mm]102 mm
Diameter max. [inch]4.03 ″
Diameter of focusing ring [mm]80 mm
Diameter of focusing ring [inch]3.15 ″
Length (with lens cap) [mm]114 mm
Length (with lens cap) [inch]4.49 ″
Length (without lens cap) [mm]99 mm
Length (without lens cap) [inch]3.90 ″
Weight880 g


To the product series

Your imagination knows no boundaries.

Endlessly wide horizons, cramped interiors or the imaging of small objects in a large environment – the ZEISS Milvus 2.8/15 enables every photographer to deliberately stage extreme perspectives.

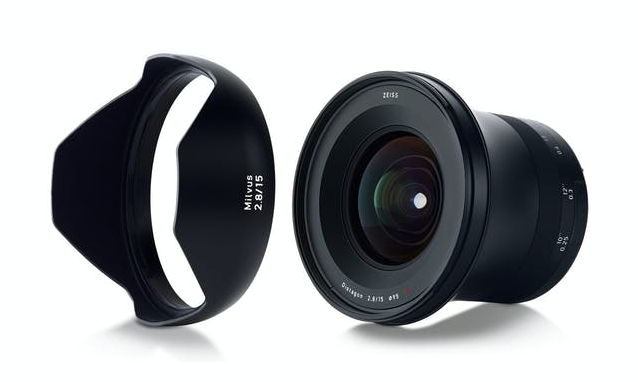

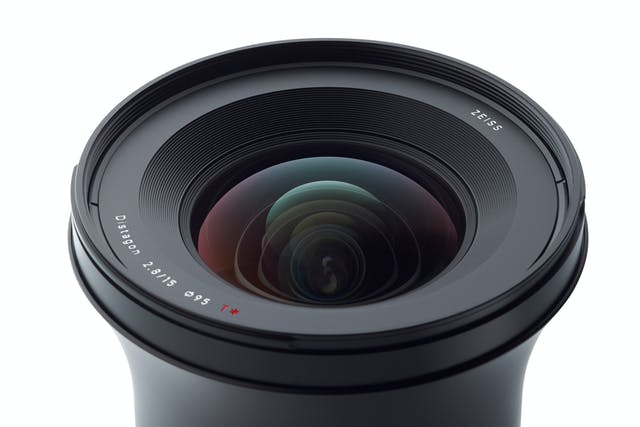

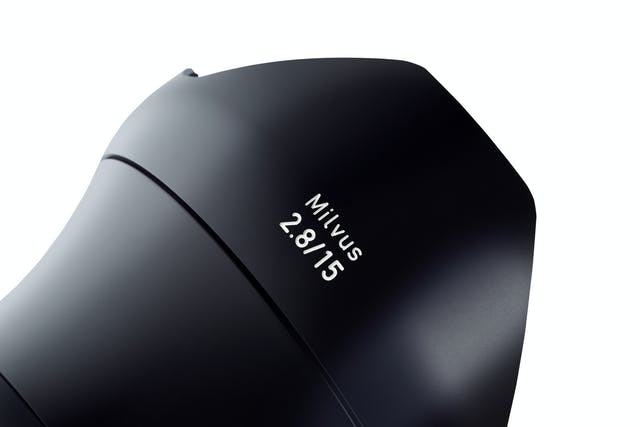

With an angle of view of 110 degrees, the super wide angle is your ideal companion when it comes to capturing events in a lively and extraordinary way. A removable lens hood and the 95 millimeter filter thread make it an ideal companion for special applications with additional slide-in filter holders or in underwater housings. The particularly long rotation angle of the focus ring offers outstanding setting accuracy for photography and film.

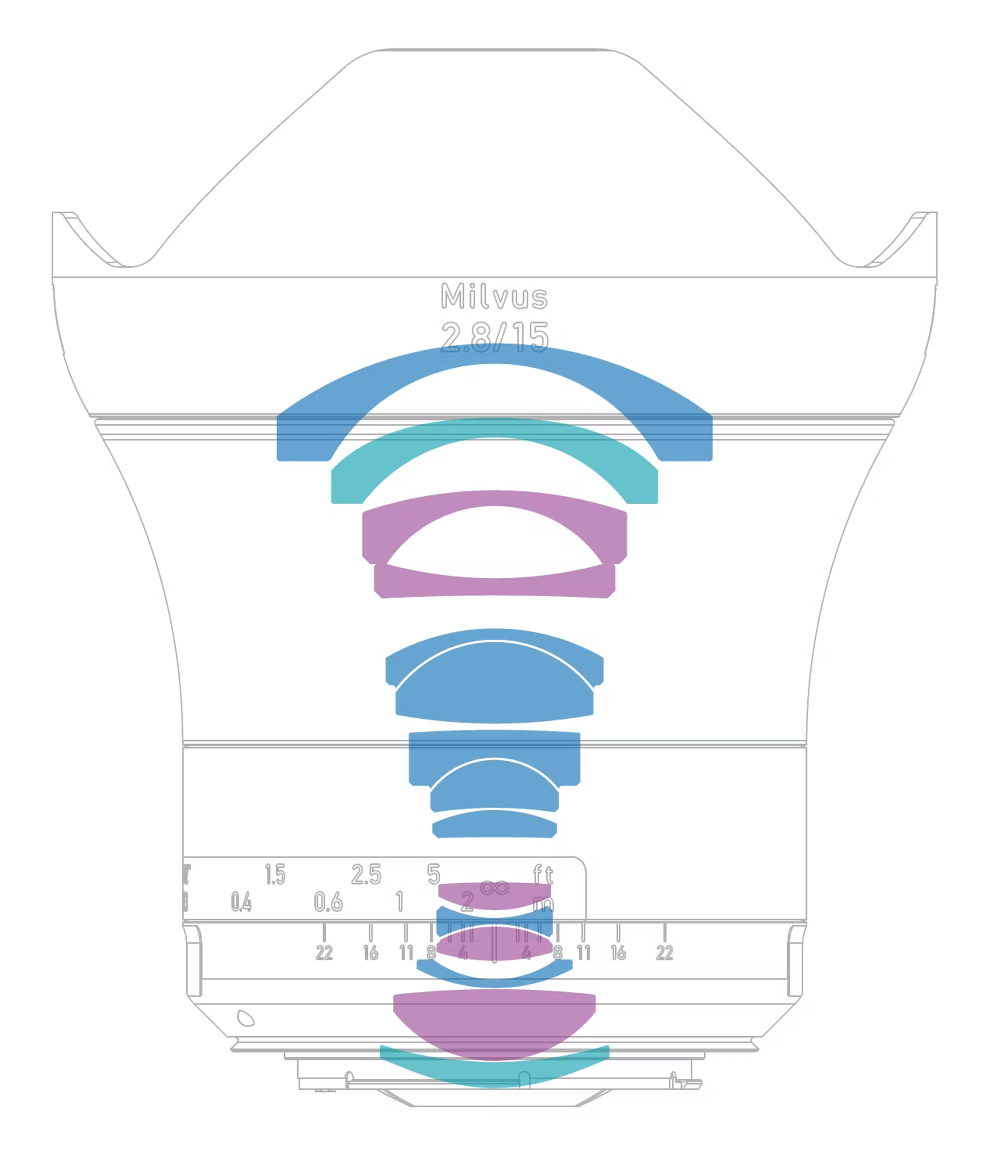

Technically, the ZEISS Milvus 2.8/15 impresses with its outstanding color error correction and prevents color fringes caused by chromatic aberration almost without exception. Two aspherical lenses, special glasses with abnormal partial dispersion and the floating element design guarantee high imaging performance from the close-up limit to infinity. The imagination knows no limits.

Documents for download:

Data sheet

Other versions of the article and matching products:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.19.2022
