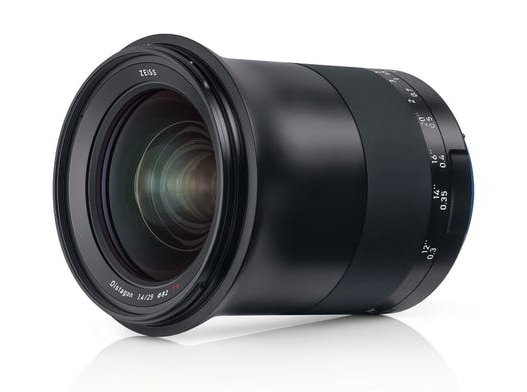

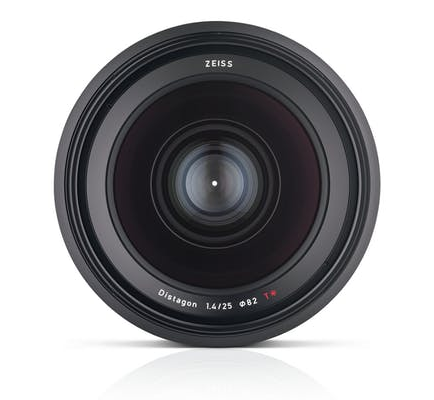

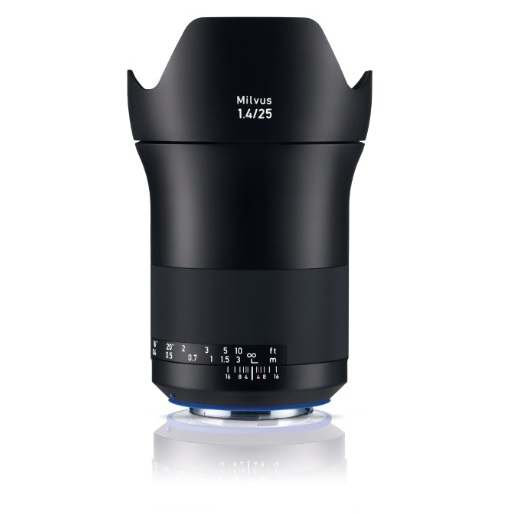

Milvus 1.4/25 ZE

DescriptionSLR Lens by Carl Zeiss
Articlenumber (Eureca):06.11.0114
Origin: Germany
Manufacturer: Carl Zeiss
DesignationMilvus 1.4/25 ZE
Manufacturer ID2096-551
Focal length25 mm
Aperture range1.4–16
Format compatibilityFull Frame
Focus range [m]0.25–∞ m
Focus range [inch]9.93–∞ ″
Min. free working distance [m]0.09–∞ m
Min. free working distance [inch]3.66–∞ ″
Angular Field diag. / hor. / vert.81 / 71 / 50 ° (24 × 36 mm² Format)
Diameter of image field [mm]43 mm
Diameter of image field [inch]1.69 ″
Image ratio at MOD1:4.6

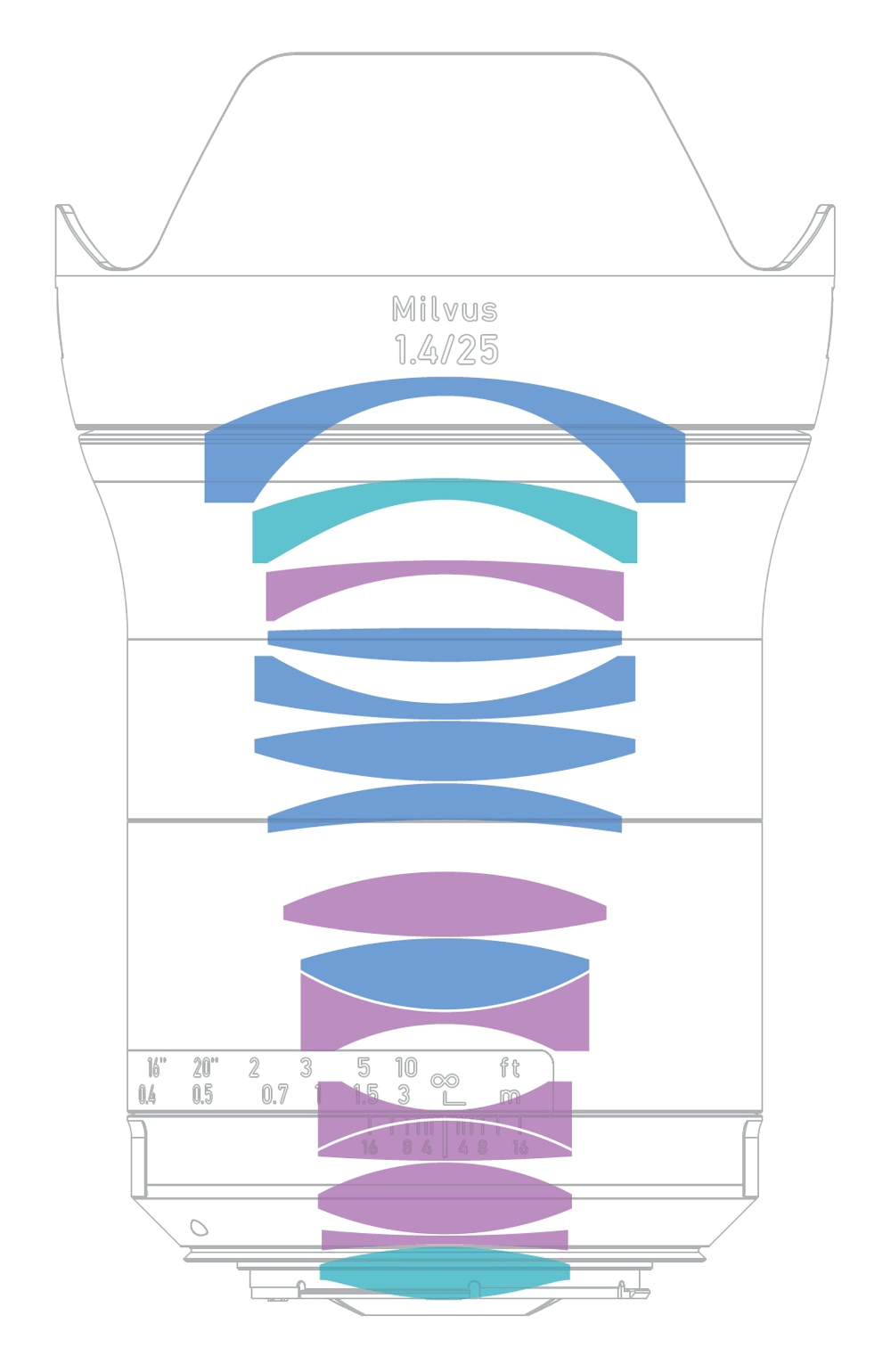

Lens elements / Groups15 / 13

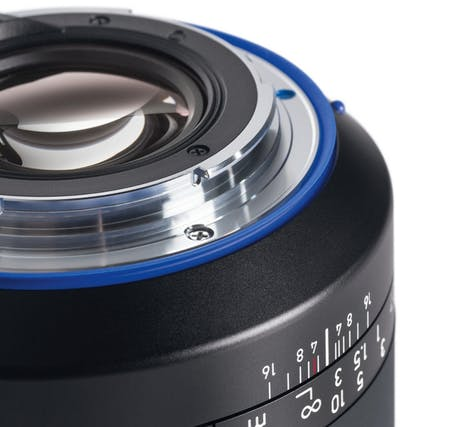

Flange focal distance [mm]44 mm
Flange focal distance [inch]1.73 ″
Entrance pupil position (in front of image plane) [mm]127 mm
Entrance pupil position (in front of image plane) [inch]5.00 ″

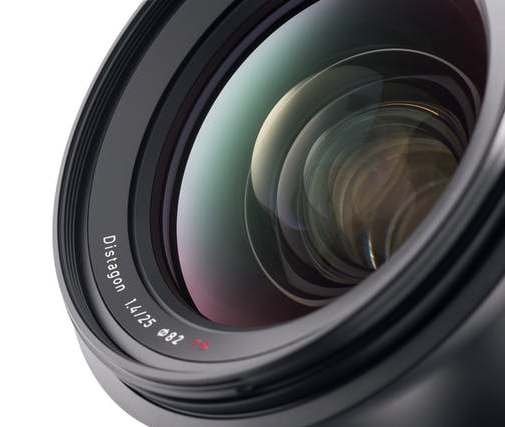

Filter threadM82 × 0.75
Rotation angle of focusing ring (inf – MOD)172 °
Diameter max. [mm]95 mm
Diameter max. [inch]3.75 ″
Diameter of focusing ring [mm]83 mm
Diameter of focusing ring [inch]3.25 ″
Length (with lens cap) [mm]140 mm
Length (with lens cap) [inch]5.52 ″
Length (without lens cap) [mm]123 mm
Length (without lens cap) [inch]4.82 ″
Weight1225 g


To the product series

A Wide-Angle Lens with an Eye for Detail.

The mission of this lens is to capture enchanting moods with perfect foreground details. The excellent imaging performance can be seen right up to the edges and ensures grandiose shots, regardless of whether they are landscapes or architectural elements.

The ZEISS Milvus 1.4/25 with a completely redesigned optical design impresses with its extraordinarily constant performance in several respects: Impressive imaging performance over the entire image field enables you to see your main subject far positioned away from the center of the image. Even with the aperture wide open, you can achieve excellent image results with high contrast and excellent sharpness – the range of applications therefore also extends to applications with unfavorable lighting conditions. The advanced floating elements design of the ZEISS Milvus 1.4/25 perfectly reproduces both the finest structures of motif details in the close-up range and distant image elements.

Documents for download:


Other versions of the article and matching products:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.20.2022
