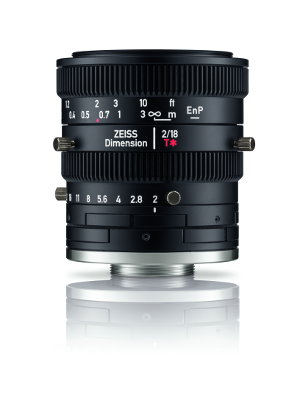

| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0124 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | ZEISS Dimension 2/18 C |
| Manufacturer ID | 2229-926 |
| Focal length | 18 mm |
| Mount | C |
| Aperture range | 2–22 |
| Lens elements / Groups | 13 / 9 |
| Format | 4/3 ″ |
| Focus range [mm] | 170.5–∞ mm |
| Focus range [ft] | 0.56–∞ ft |
| Min. free working distance [mm] | 91.1 mm |
| Min. free working distance [ft] | 0.30 ft |
| Angle of view diag. / hor. / vert. 1" | 47.38 / 39.99 / 27.13 ° (1″ Format) |
| Angle of view diag. / hor. / vert. 4/3" | 62.12 / 51.22 / 39.42 ° (4/3″ Format) |
| Diameter of image field 1″ [mm] | 16 mm |
| Diameter of image field 1″ [inch] | 0.63 ″ |
| Diameter of image field 4/3″ [mm] | 21.64 mm |
| Diameter of image field 4/3″ [inch] | 0.83 ″ |
| Flange focal distance [mm] | 17,526 mm |
| Flange focal distance [inch] | 0.69 ″ |
| Coverage at close range (1 ″) [mm] | 73.8 x 49.1 mm × mm |
| Coverage at close range (4/3 ″) [mm] | 97.0 x 72.7 mm × mm |
| Coverage at close range (1 ″) [inch] | 2.91 x 1.93 ″ |
| Coverage at close range (4/3 ″) [inch] | 3.82 x 2.86 ″ |
| Image ratio at close range | 1:5.6 |
| Entrance pupil position (in front of image plane) [mm] | 60.4 mm |
| Entrance pupil position (in front of image plane) [inch] | 2.38 ″ |
| Exit pupil position (in front of image plane) [inch] | 1.54 ″ |
| Exit pupil position (in front of image plane) [mm] | 39,2 mm |
| Length (front to mount contact surface) (at inf.) [mm] | 61,2 mm |
| Length (front to mount contact surface) (at MOD) [mm] | 61.2 mm |
| Length (front to mount contact surface) (at inf.) [inch] | 2.41 ″ |
| Length (front to mount contact surface) (at MOD) [inch] | 2.41 ″ |
| Diameter (lens only) [mm] | 57.0 mm |
| Diameter (with fixation screws) [mm] | 63.0 mm |
| Diameter (lens only) [inch] | 2.24 ″ |
| Diameter (with fixation screws) [inch] | 2.48 ″ |
| Filter thread | M43 × 0.75 |
| Weight | 291 g |
Lens
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.14.2022
