LM16FC24M

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0265
Origin: Japan
Manufacturer: KOWA
Focal length16 mm
Format1.1″
MountC-Mount
Pixel size2.5 µm
Iris ControlManual
Aperture1.8–16
Lens typeFixed Focal Lens
Design WavelengthVIS 380–780; Broad Band Coating 380–1000 nm
Focus range [m]0.1–∞ m
Focus ControlManual
Shooting range at MOD, horizontal102 mm
Shooting range at MOD, vertical77 mm
Resolution, Center200 lp/mm
Resolution, Corner100 lp/mm
Resolution24 MPix
Distortion−0.4 %
Backfocus [mm]11.9 mm
Filter thread [mm]M35.5 × P0.5
Dimension [mm]Ø43 × 65.7
Weight200 g
Operating Temperature−10 °C – +50 °C
Application scopeITS/Traffic monitoring, Broadcast, Machine Vision

Side View

To the product series

Product Information:

  • 1.1″ 24 Megapixel C-mount Industrial Lens
  • Focal length 16 mm
  • For sensors with a pixel size from 2.5 µm
  • Suitable for Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more
  • Floating mechanism to eliminate optical aberrations
  • Broadband Coating: Transmission from VIS to NIR







Documents for download:

Datasheet
Distortion
MTF
Relative Illumination
Transmission

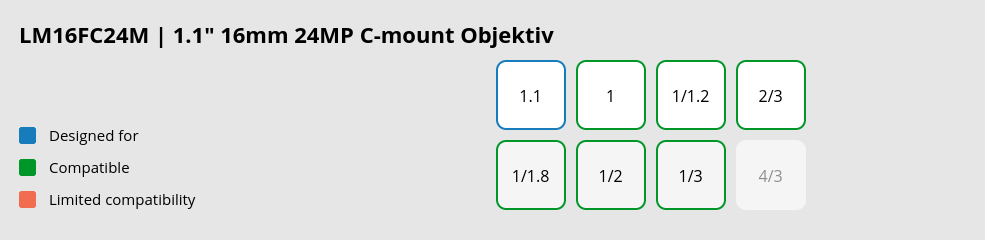

Compatible sensor sizes (inch)



Other versions of the article and matching products:

  • LM12FC24M: same series, next smaller focal length (12 mm)
  • LM25FC24M: same series, next larger focal length (25 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 11.09.2020
