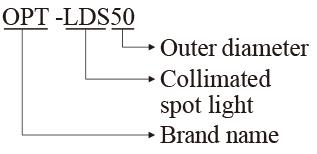

OPT-LDS50

DescriptionCollimated Spot Lights OPT-LDS by OPT
Articlenumber (Eureca):09.03.0362
Origin: China
Manufacturer: OPT
Output W1V / 3.2W
Output R1V / 2.7W
Output G1V / 3.75W
Output B1V / 3.3W
Recommended ControllerOPT-DPA2005E

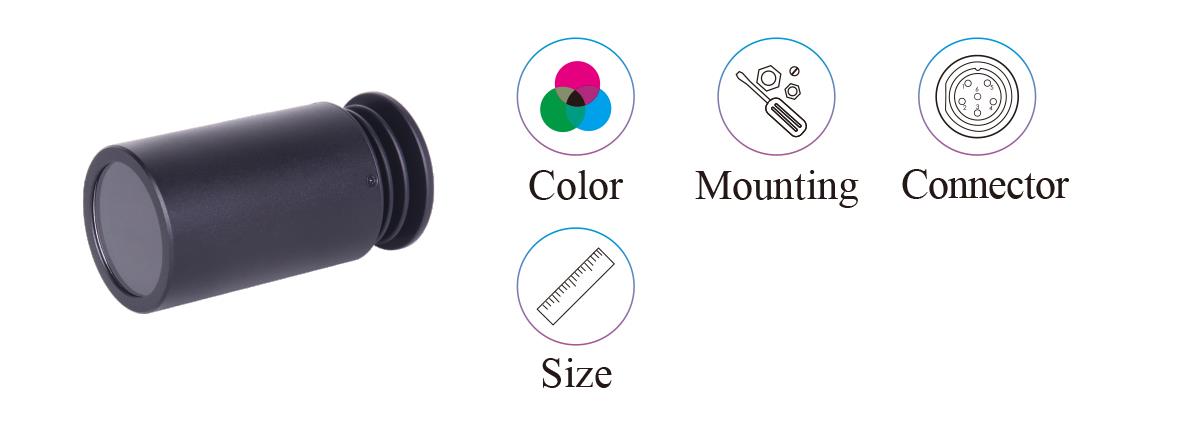

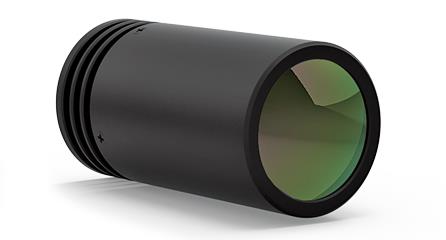

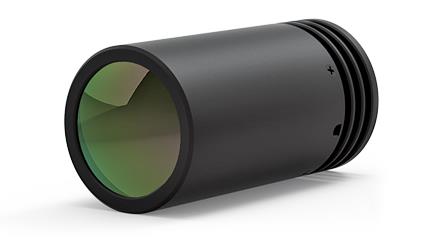

Example photo

To the product series

Product Features

  • Long work distance, large effective illumination area
  • Customized work distance and lighting area

Application Cases

  • Contour gauging for workpieces
  • Surface scratches detection



Please choose out of four available colour versions: -R, -W, -G, -B.




Documents for download:

2D Drawing of the Lighting
Series Catalogue with full details

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 09.08.2020
