| Description | CIS module by CMOS Sensor Inc. |
| Articlenumber (Eureca): | 01.13.0011 |
| Origin: | USA |
| Manufacturer: | CMOS Sensor Inc. |
| Pixel number | 1728 |
| Resolution | 200 dpi |
| Sensor length | 216 mm |

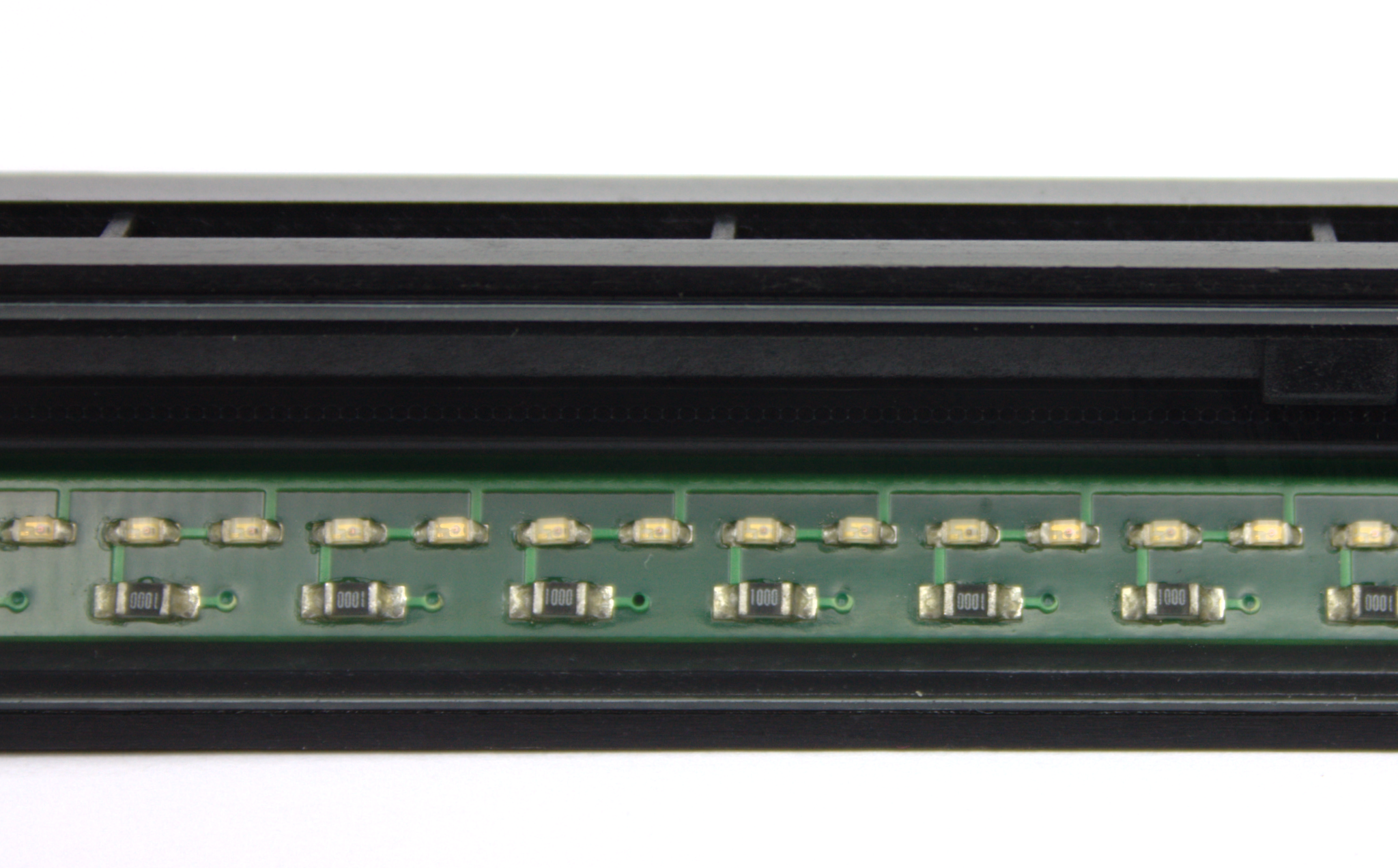

| LED | R |
| Outputs | 1 |
| Typical clock rate | 4.0 MHz |
| Readout time (per line and colour) | 500 µs |
| Power supply | 5 V |

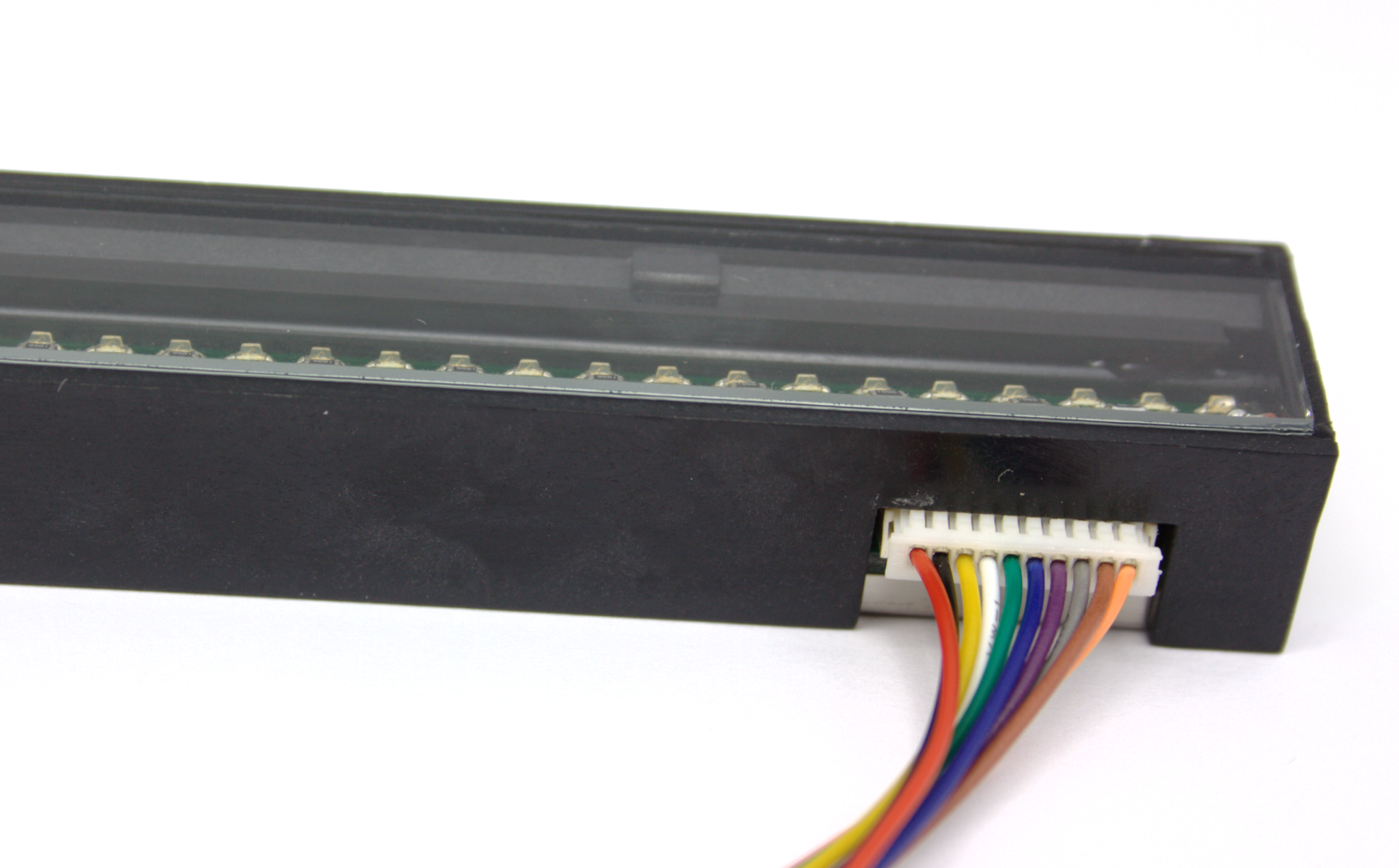

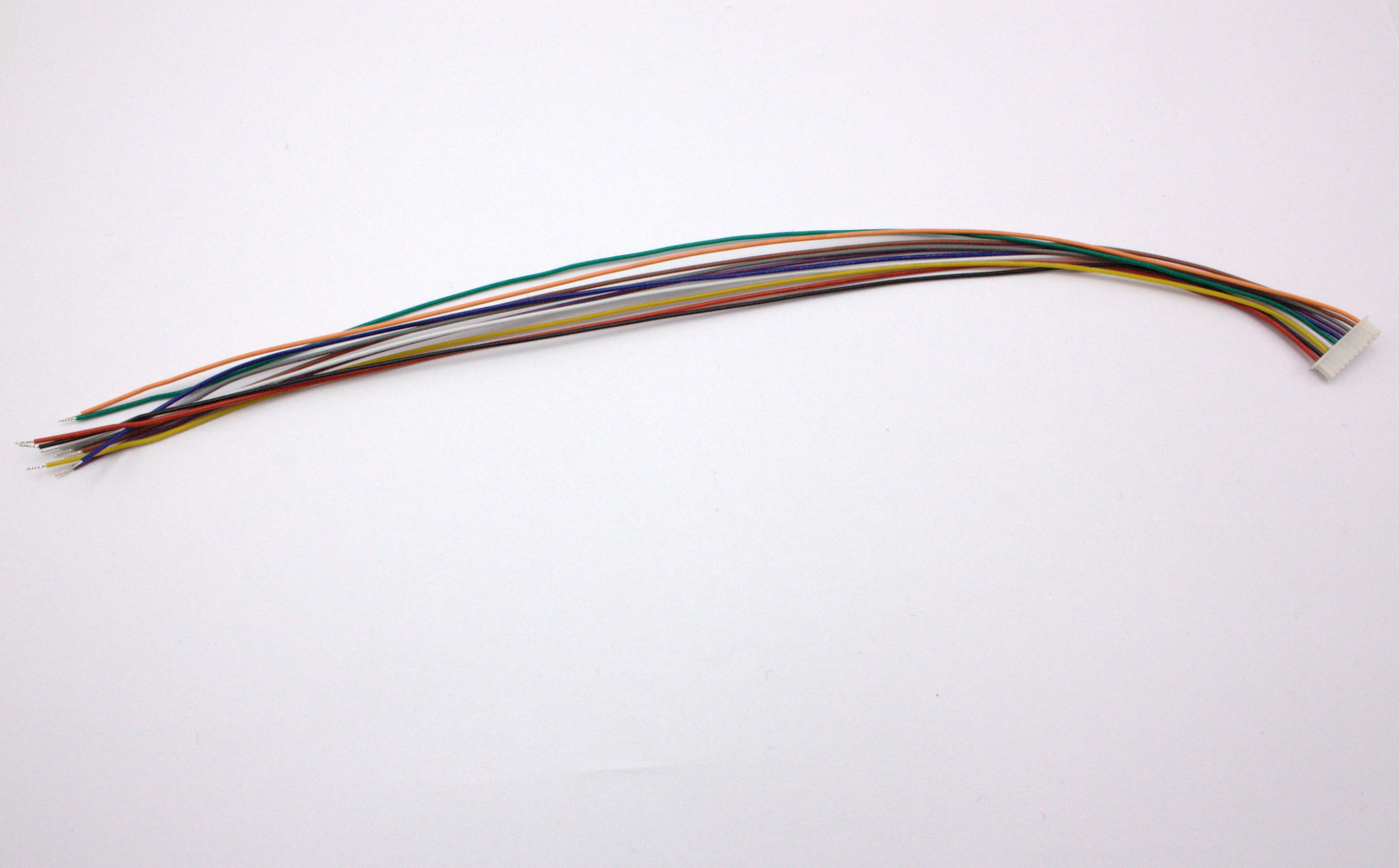

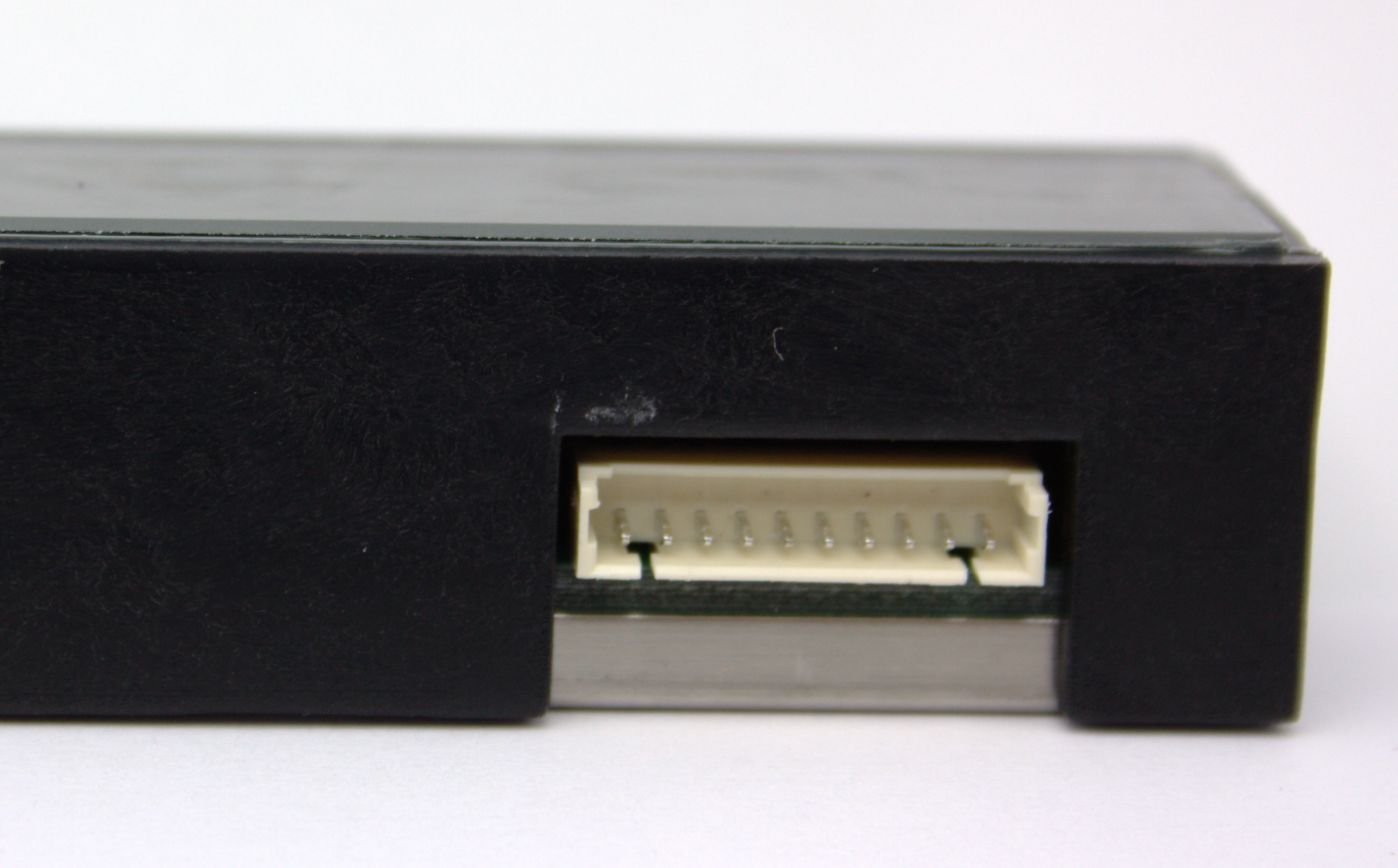

| Plug | 10 pin |

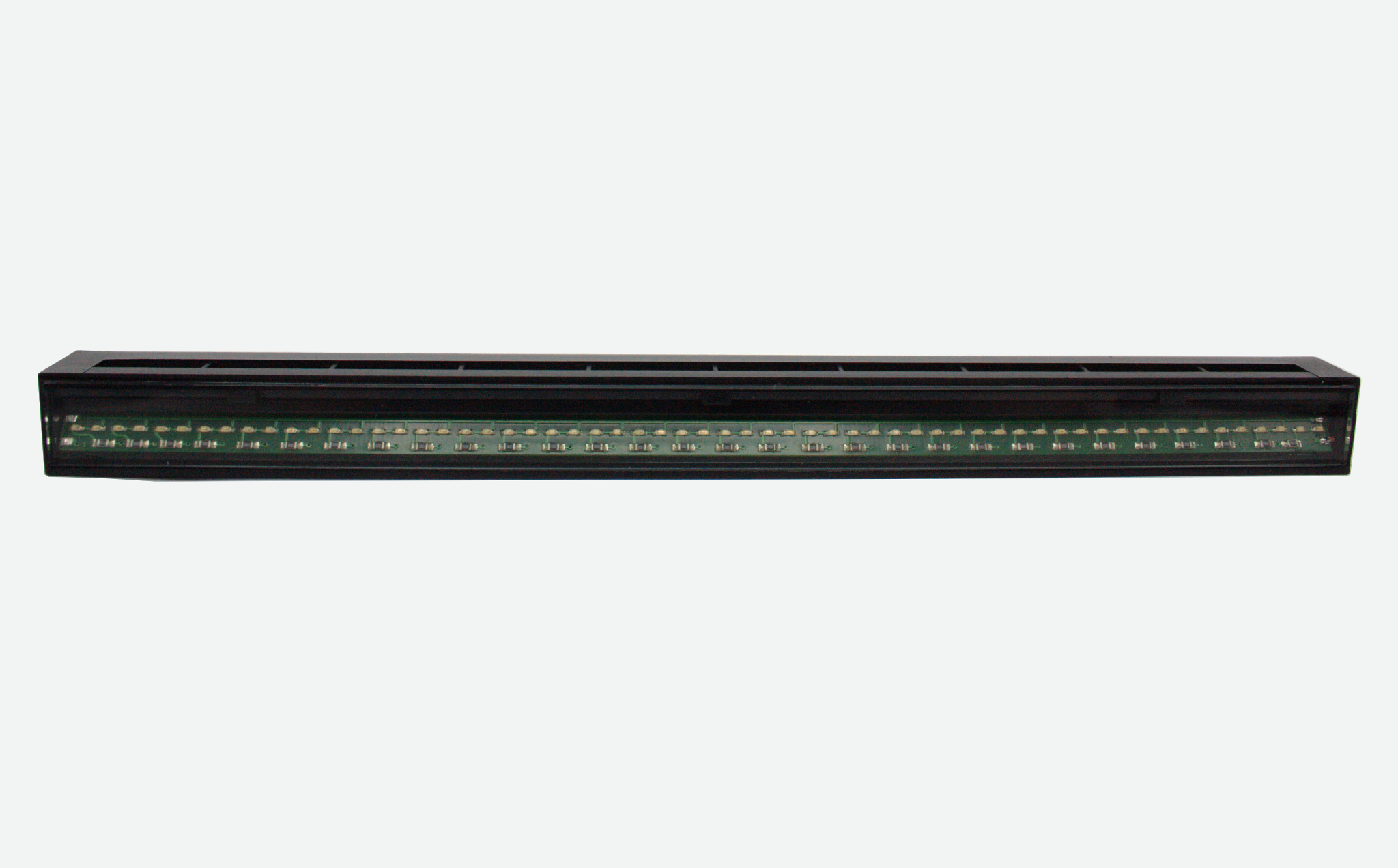

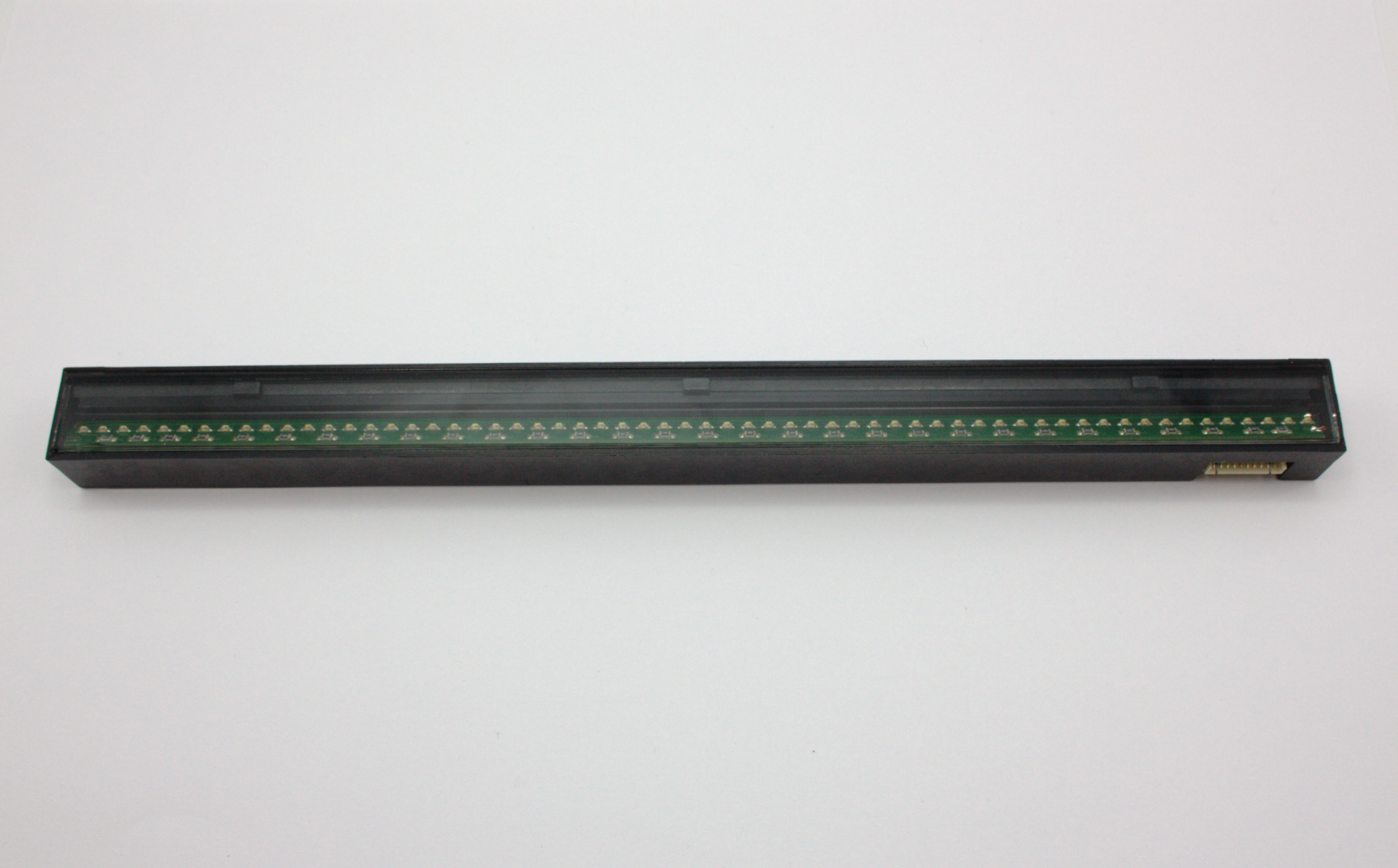

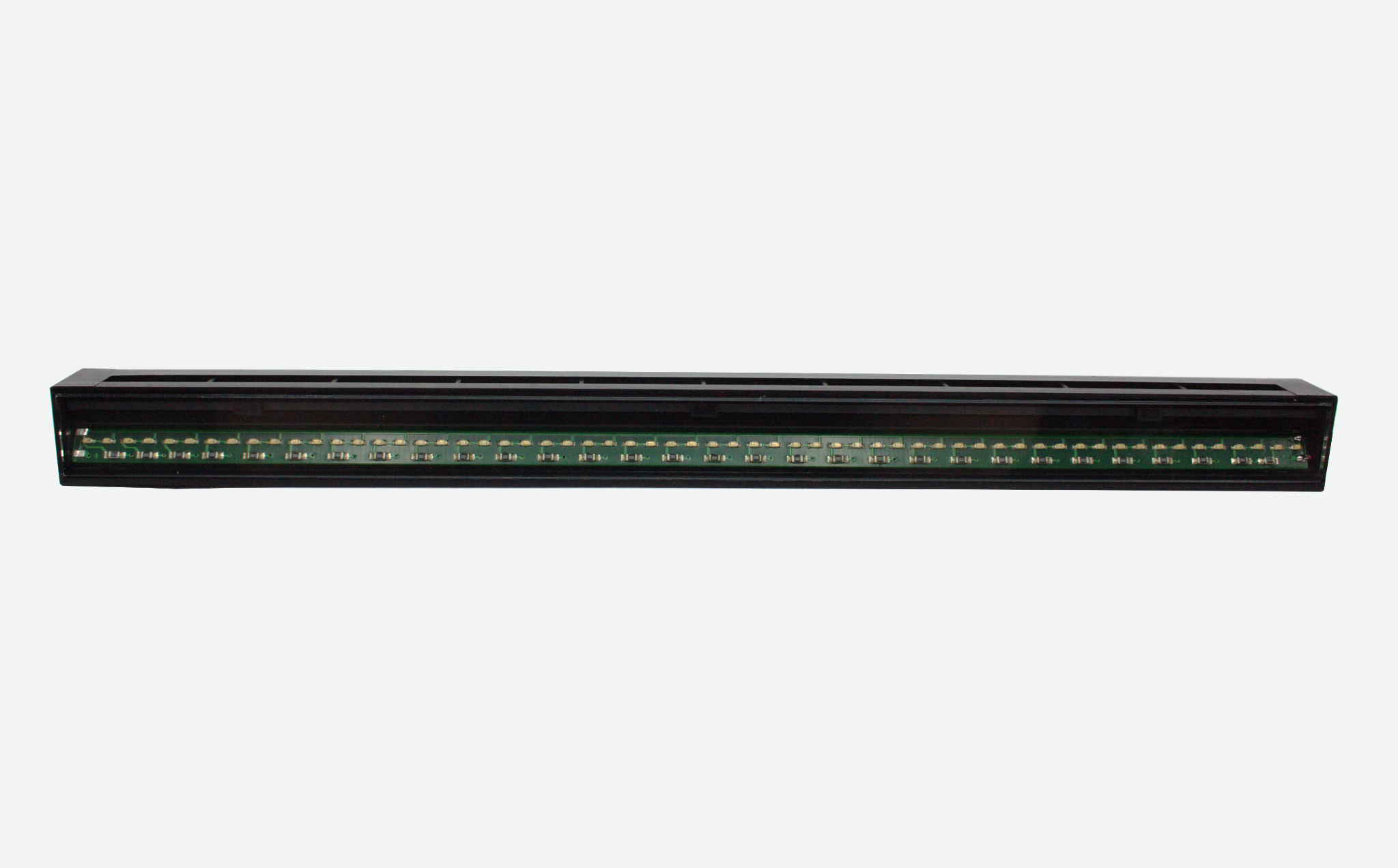

Sample picture

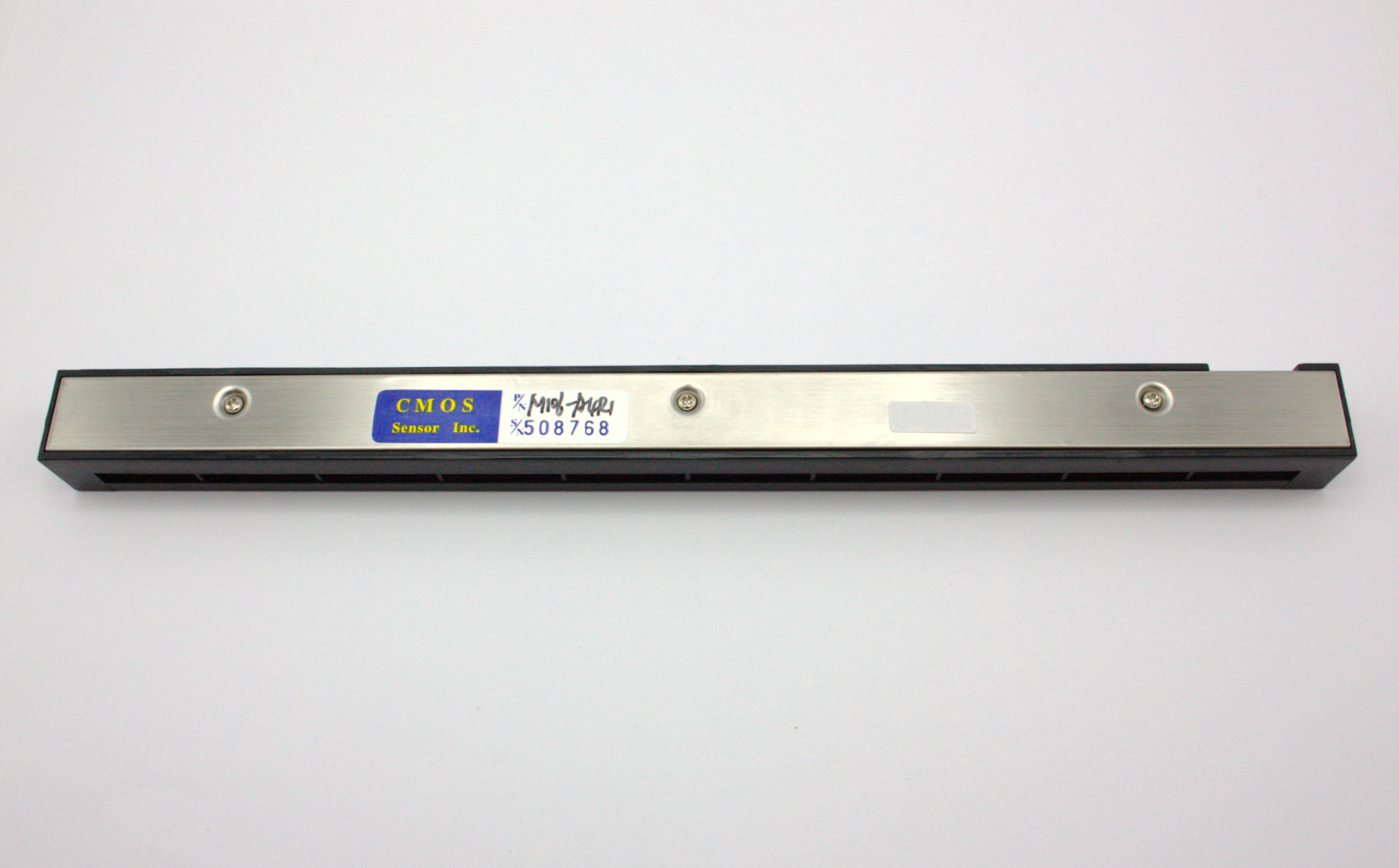

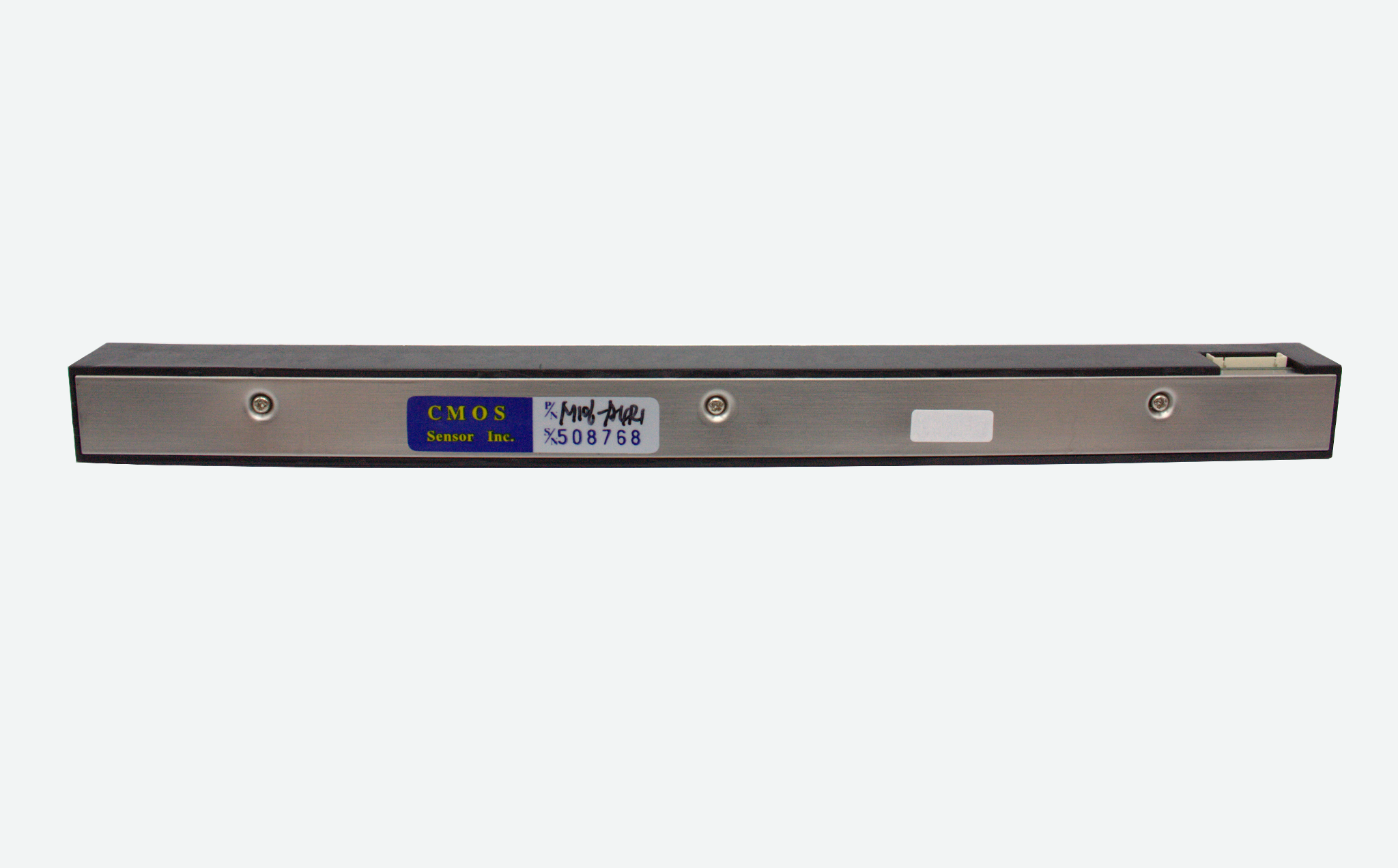

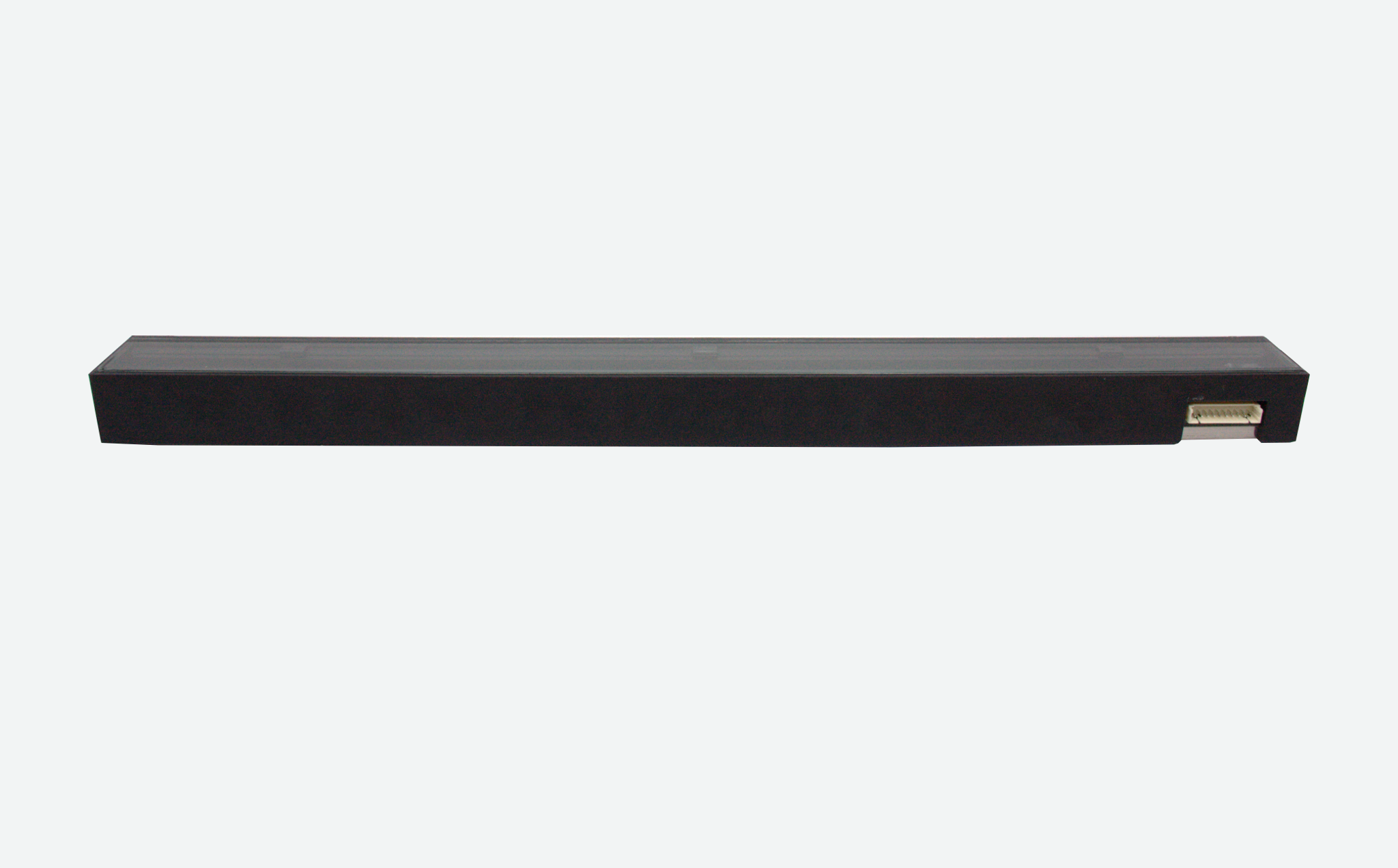

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 09.09.2022
