TCD1205DG-X

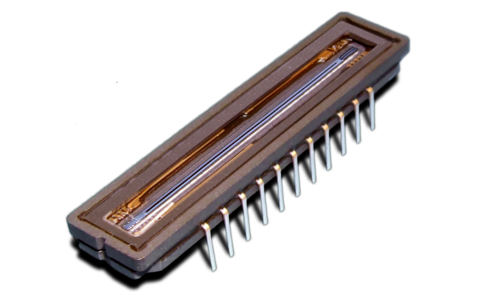

DescriptionCCD linear sensor by Toshiba, glass cover removed
Articlenumber (Eureca):01.04.0005
Origin: Japan
Manufacturer: Toshiba
Colour versionmonochrome
Pixel number2048
Pixel size x14 µm
Pixel size y200 µm
Sensitivity (V/lx・s) (B/W)80
Dynamic range400:1
Maximum Data Rate monochrome [MHz]N/A MHz
Supply Voltages5 V
Package22 pin CERDIP
Linewidth [mm]28.70 mm
Remarkwithout cover glass
basic sensor discontinued on May 25th, 2024!

To the product series

Discontinued on May 25th, 2024! Contact us for existing stocks or alternatives, our team will be happy to support you.




Documents for download:

Datasheet

Rear view of the sensor (sample picture)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 06.13.2023
