| Description | CCD linear sensor (B/W) by Toshiba |
| Articlenumber (Eureca): | 01.04.0101 |
| Origin: | China |
| Manufacturer: | Toshiba |
| Colour version | monochrome |
| Pixel number | 2500 |
| Pixel size x | 5.25 µm |
| Pixel size y | 64 µm |
| Sensitivity (V/lx･s) (B/W) | 103 |
| Dynamic range | 400:1 |
| Maximum Data Rate monochrome [MHz] | 2 MHz |
| Supply Voltages | 4 V |
| Application scope | Barcode readers |
| Package | 16pin GLCC |
| Linewidth [mm] | 13.10 mm |
| Features | 3V single power supply voltage / Electronic shutter (ICG) function / Sample-and-hold circuit |

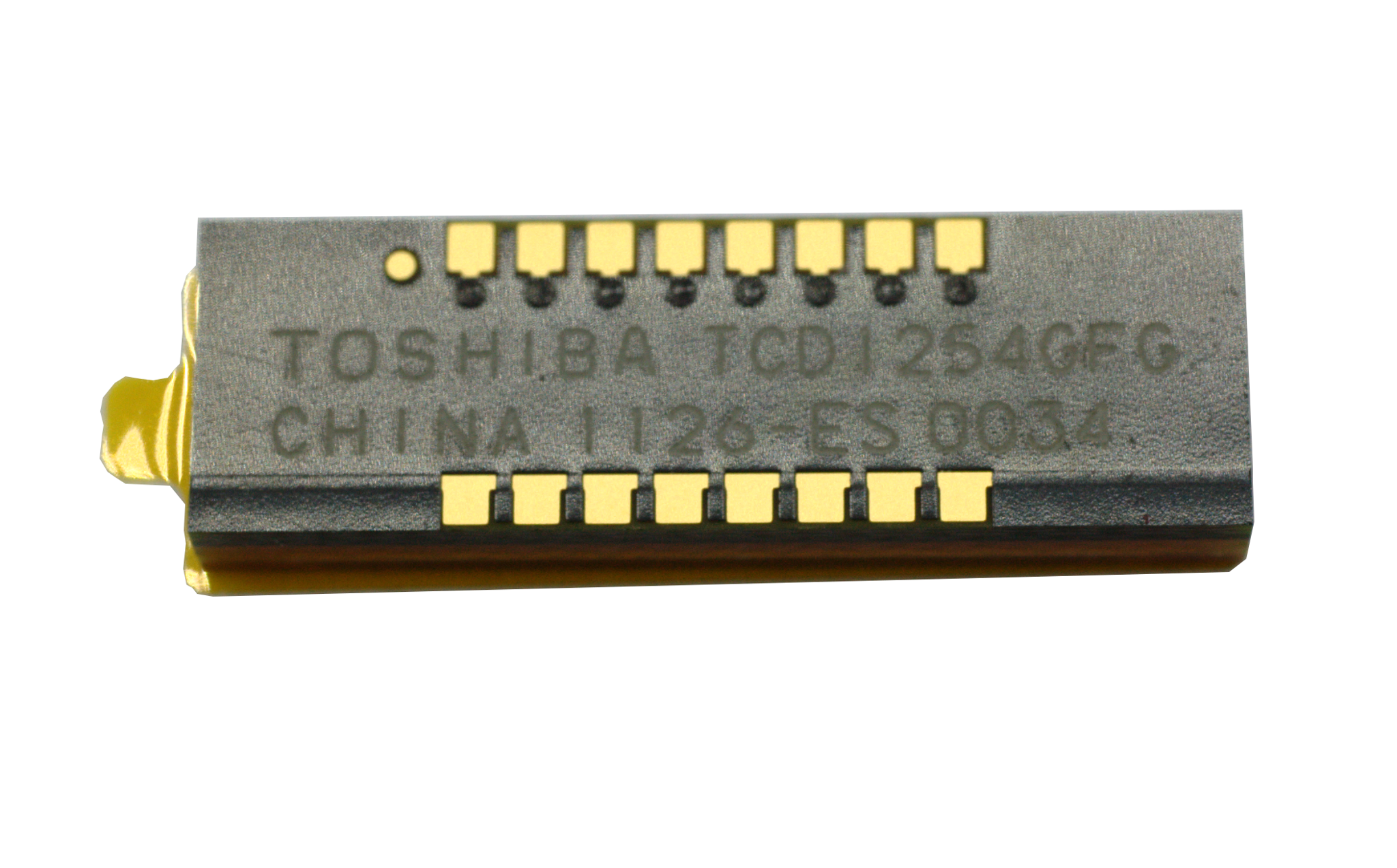

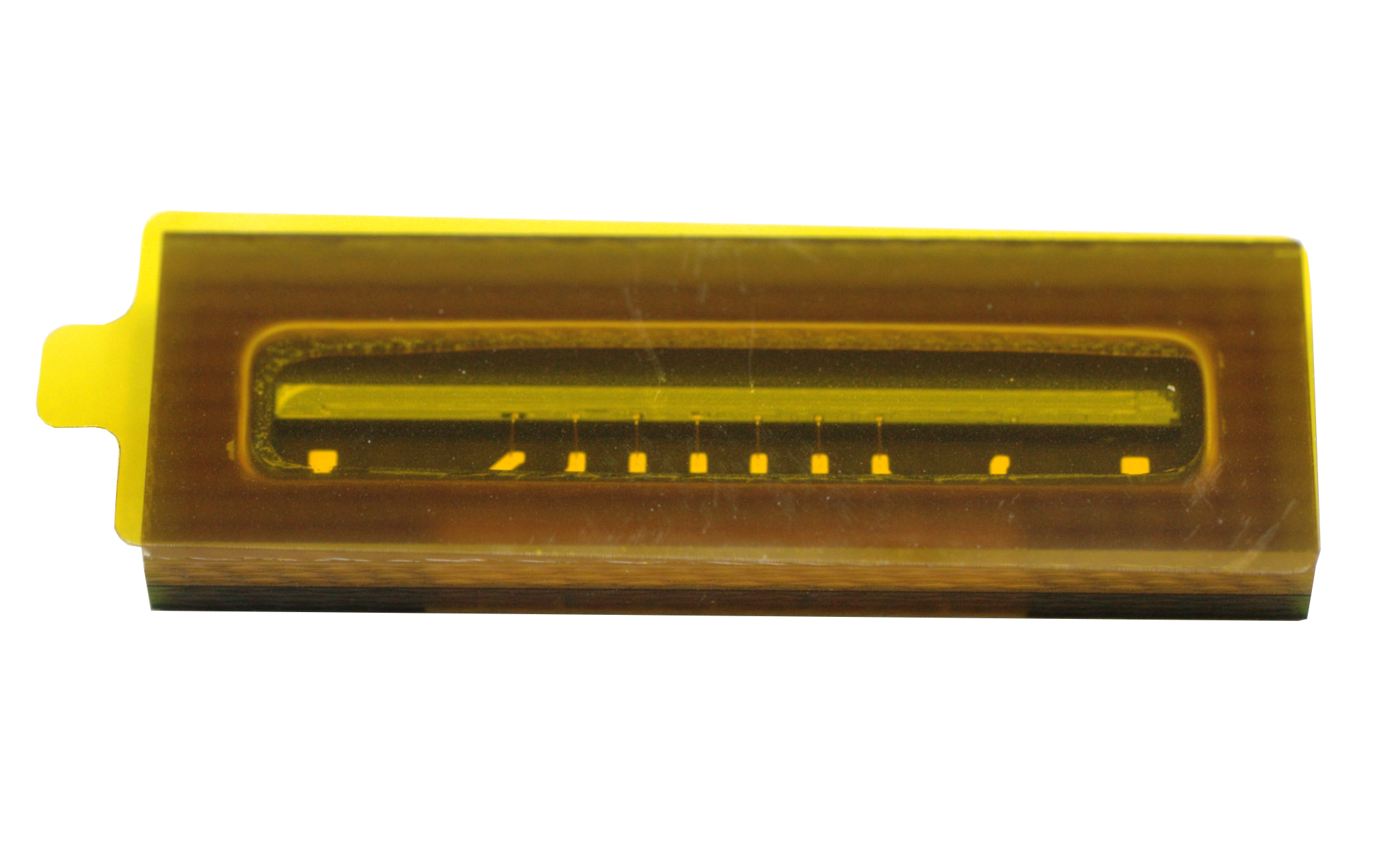

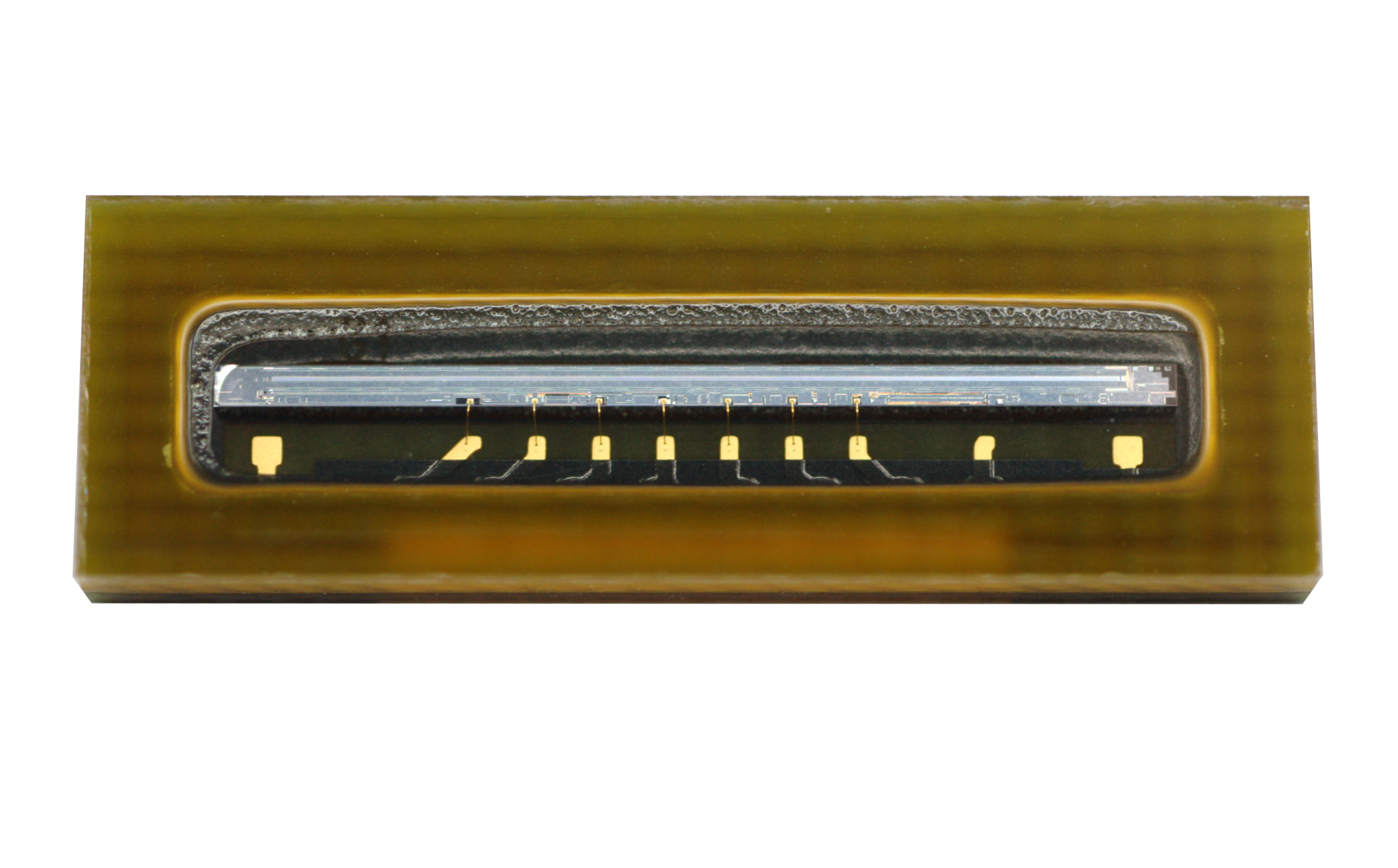

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.28.2020
