| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0123 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 8 kPix |
| Pixel number (H × V) | 8322 × 16 |
| Pixel size | 5 × 5 µm |
| Format (Length) | 41.61 mm |
| Line Rate | 200 (11bit 2-line), 100 (10bit 4-line) kHz |
| Shutter | Global |
| Chroma | Mono, RGB Color |
| Photosensitive area | 41.61 × 0.08 mm × mm |
| Linear Full Well Capacity | 17 @ PGA Gain ×2.7 @11bit, 15 @ PGA Gain ×1.2 @ 10bit ke− |
| Temporal Noise | 13 @ PGA Gain ×2.7 @11bit, 17 @ PGA Gain ×1.2 @ 10bit e− |
| Dynamic range | 62 @ PGA Gain ×2.7 @11bit, 58.9 @ PGA Gain ×1.2 @ 10bit dB |

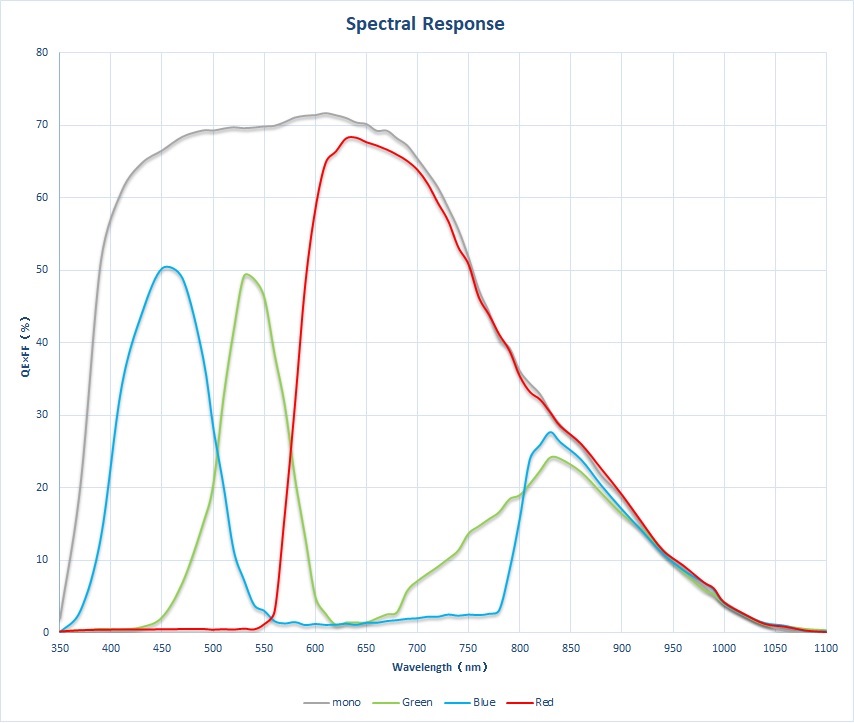

| Peak QE | 71 (mono with microlens) @ 600 nm % |
| Angular Response | 20 (80 % response) ° |
| Dark current | 6 @ 76 °C @11bit, 25 @ 76 °C @10bit e−/pixel/sec |

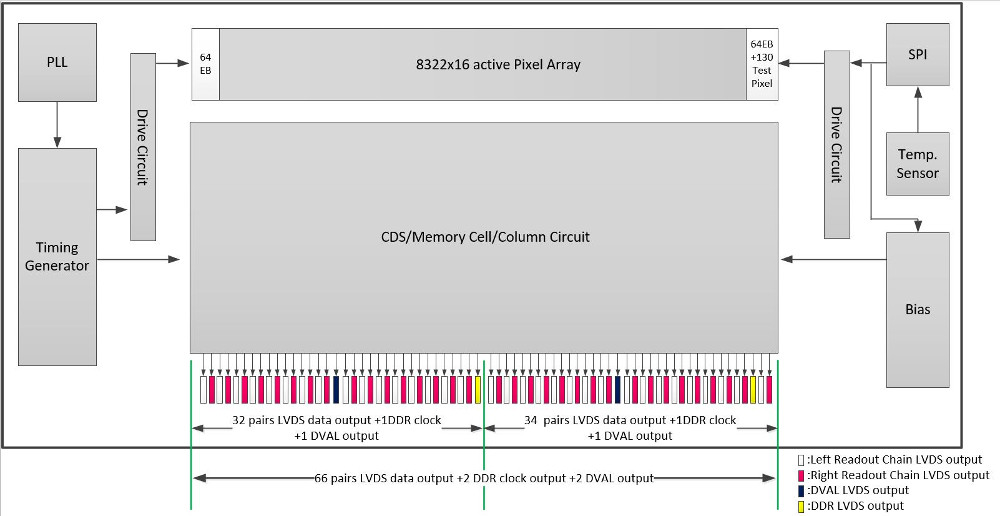

| Output Format | 66 pairs LVDS data, 2 pair DDR clock, 2 pair control |
| Power Consumption | 3.8 @ 11bit 2-line mode, 3.7 @ 10bit 4-line mode W |

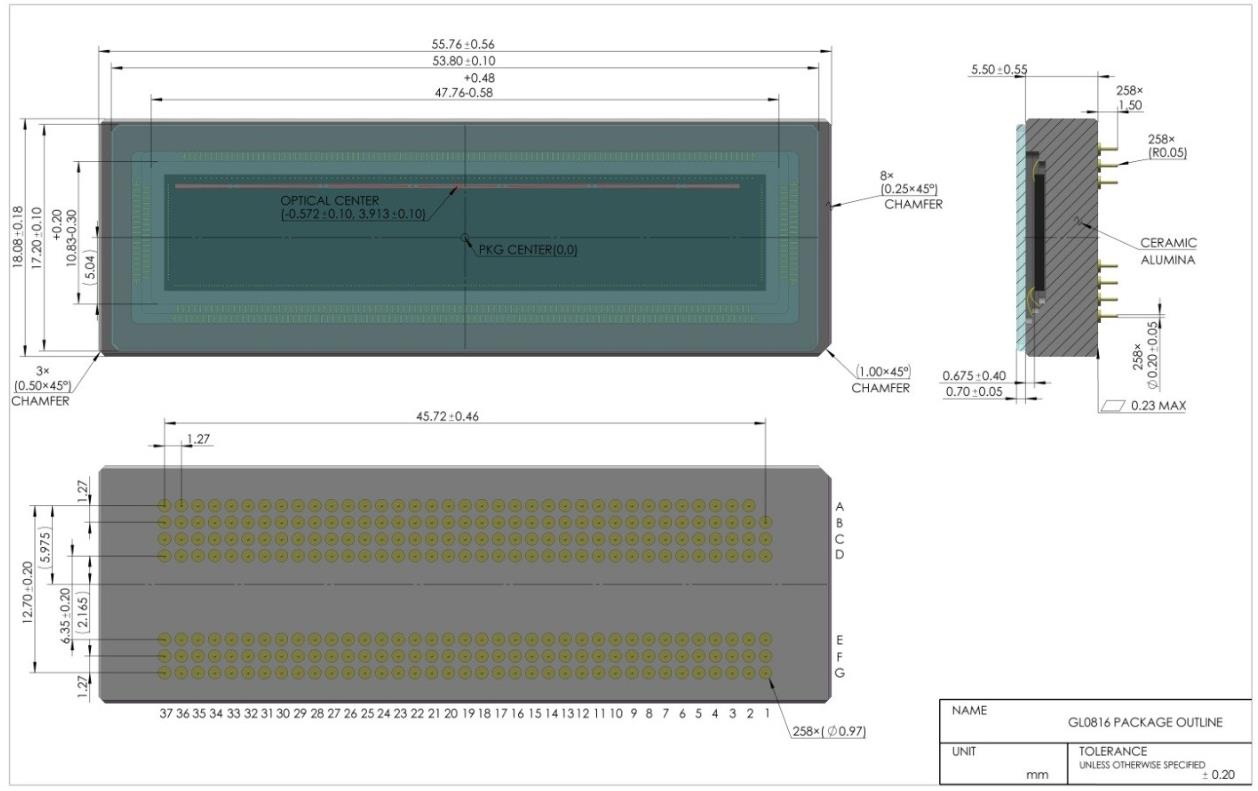

| Package | 259-pin µPGA |

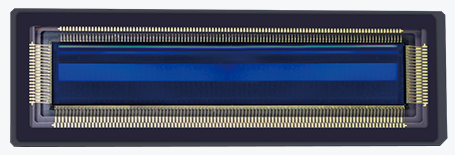

GL0816 5 µm 8 K Global Shutter Line Scan Image Sensor. This sensor is available in different versions, for example:
Note: The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:
More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
