| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0061 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 2 / 6 kPix |
| Pixel number (H × V) | 6300 × 4 2100 × 8 |
| Pixel size | 14.01 × 14.01 4.67 × 4.67 µm |
| Format (Length) | 31.5 mm |
| Line Rate | 46 (2-line / RGB 1-line), 20 (RGB 2-line) kHz |
| Shutter | Global |
| Chroma | Mono, RGB Color |
| Photosensitive area | 31.5 mm × mm |
| Linear Full Well Capacity | 330 @ PGA Gain ×1.4, 173 @ PGA Gain ×2.32 ke− |
| Temporal Noise | 124 @ PGA Gain ×1.4, 70 @ PGA Gain ×2.32 e− |
| Dynamic range | 68.4 @ PGA Gain ×1.4, 67.8 @ PGA Gain ×2.32 dB |

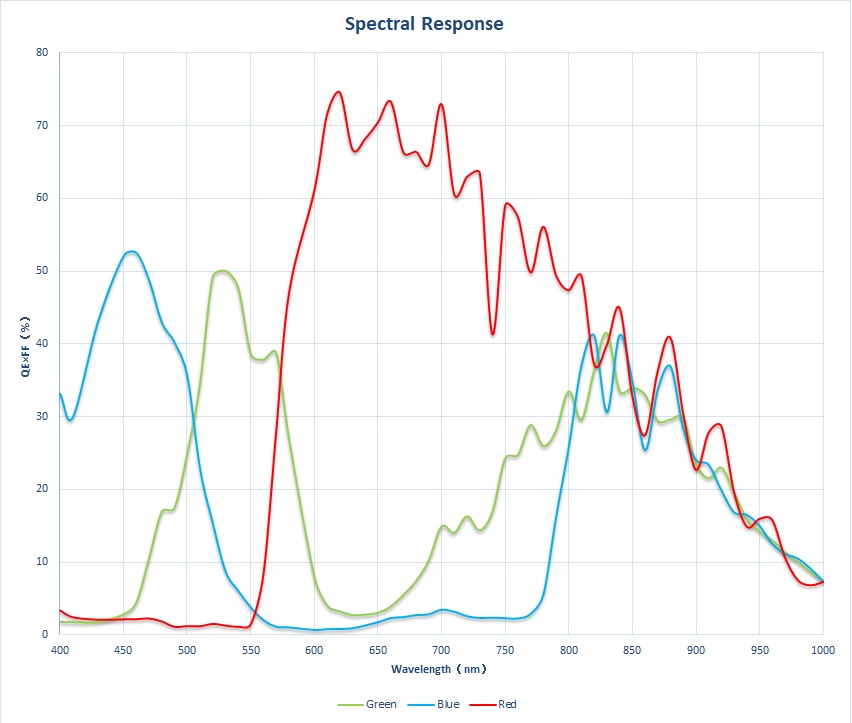

| Peak QE | 78.7 @mono, 56.6 @blue, 58 @green, 67.9 @red % |
| Dark current | 32.5 @ 68 °C e−/pixel/sec |
| Output Format | 12 pairs LVDS data, 1 pair DDR clock, 1 pair control |
| Power Consumption | 1 W |

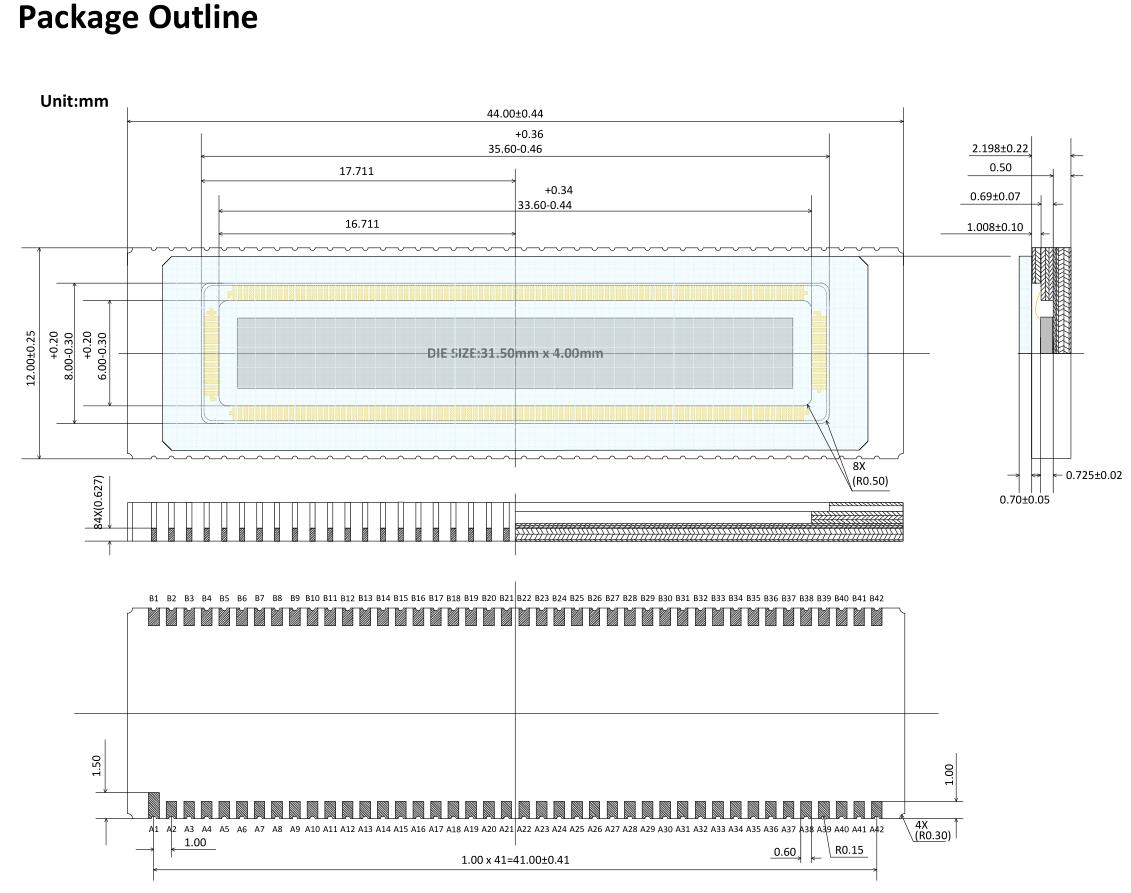

| Package | 84-pin CLCC |

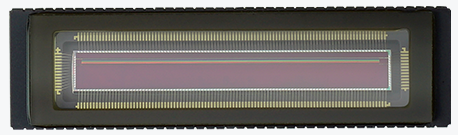

GL0816 14.01 µm 2 K / 4.67 µm 6 K Global Shutter Line Scan Image Sensor. This sensor is available in different versions, for example:
Note: The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:
More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
