GMAX0505

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0120
Origin: China
Manufacturer: Gpixel Inc.
Resolution26.2 MPix
Pixel number (H × V)5120 × 5120
Pixel size2.5 × 2.5 µm
Format1.1 ″
Format12.8 × 12.8 mm
Format (Diameter)18.1 mm
Frame Rate (10bit)150 fps
Frame Rate (12bit)42 fps
ShutterGlobal
ChromaMono, RGB Color
Photosensitive area12.8 × 12.8 mm × mm
Linear Full Well Capacity6.5 @ PGA Gain ×1 ke
Temporal Noise<1.6 e
Dynamic range>60 @ 10-bit mode, >65 @ 12-bit mode dB
Peak QE65.5 (mono with microlens) %
Parasitic Light Sensitivity<−80 dB
Angular Response>13 (80 % response) °
Dark current1 @ 30 °C e/pixel/sec
Supply Voltages3.3 V / 1.3 V for analog, 1.8–3.3 V for IO, 1.3 V for digital
Output Format48 pairs sLVDS data, 1 pair DDR clock, 1 pair control
Channel Multiplexing48/24/16/12/8/6/4/2 @ 10-bit mode, 16/12/8/6/4/2 @ 12-bit mode
Power Consumption<1.5 @ 10-bit mode, <1.1 @ 12-bit mode W

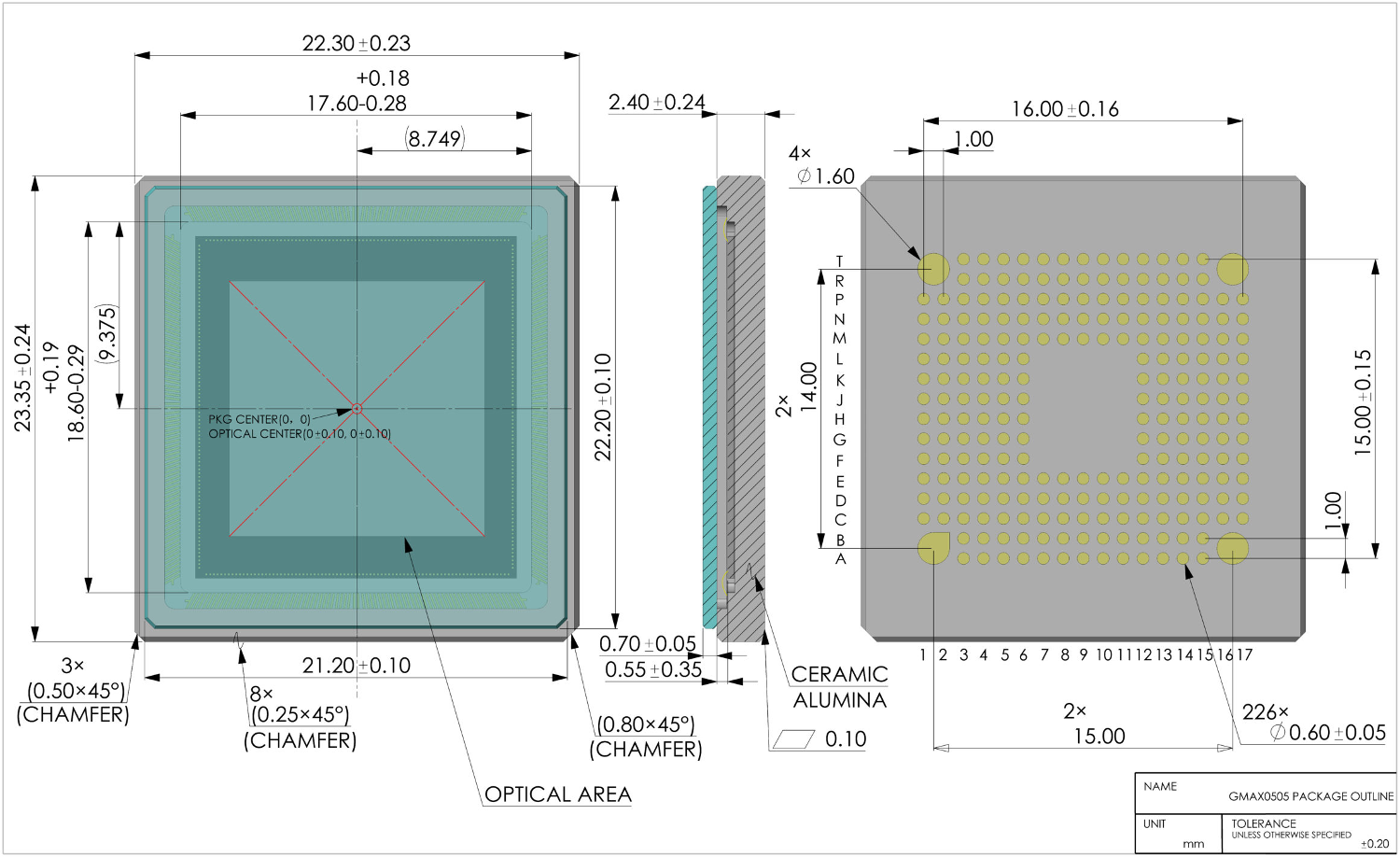

Package226-pin LGA
Evaluation board available

To the product series

GMAX0505 2.5 µm 26 MP Global Shutter Image Sensor. This sensor is available in different versions, for example:

  • GMAX0505-DVM-HLT-AUx: Monochrome, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 150 fps @ 10bit 48 x LVDS
  • GMAX0505-DVC-HLT-AUx: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 150 fps @ 10bit 48 x LVDS
  • GMAX0505-DVM-HLT-ARx: Monochrome, microlens, ceramic 226 pins LGA,Removable D263T glass with no AR coating. High speed version, 150 fps @ 10bit 48 x LVDS
  • GMAX0505RF-DNM-NLT-AUx: Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating. Normal speed version, 42 fps @ 12bit 16 x LVDS
  • GMAX0505-DVM-NLT-AUx: Monochrome, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, Normal speed version, 42 fps @ 12 bit 16x LVDS
  • GMAX0505-DVC-NLT-AUx: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, Normal speed version, 42 fps @ 12 bit 16x LVDS
  • GMAX0505-DVM-NLT-ARx: Monochrome, microlens, ceramic 226 pins LGA, Removable D263T glass with no AR coating. Normal speed version, 42 fps @ 12bit 16 x LVDS
  • GMAX0505RF-DNM-HLT-AUx: Red Fox Technology, Monochrome, Microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating. High speed version, 150 fps @ 10bit 48 x LVDS

Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!






Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics

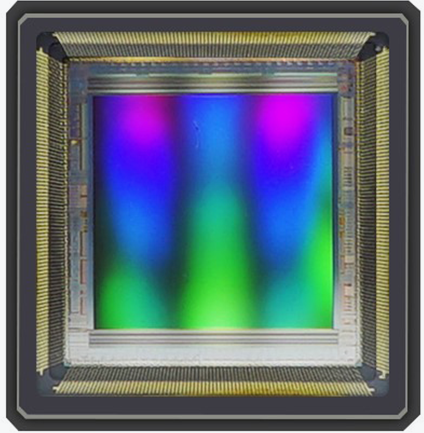

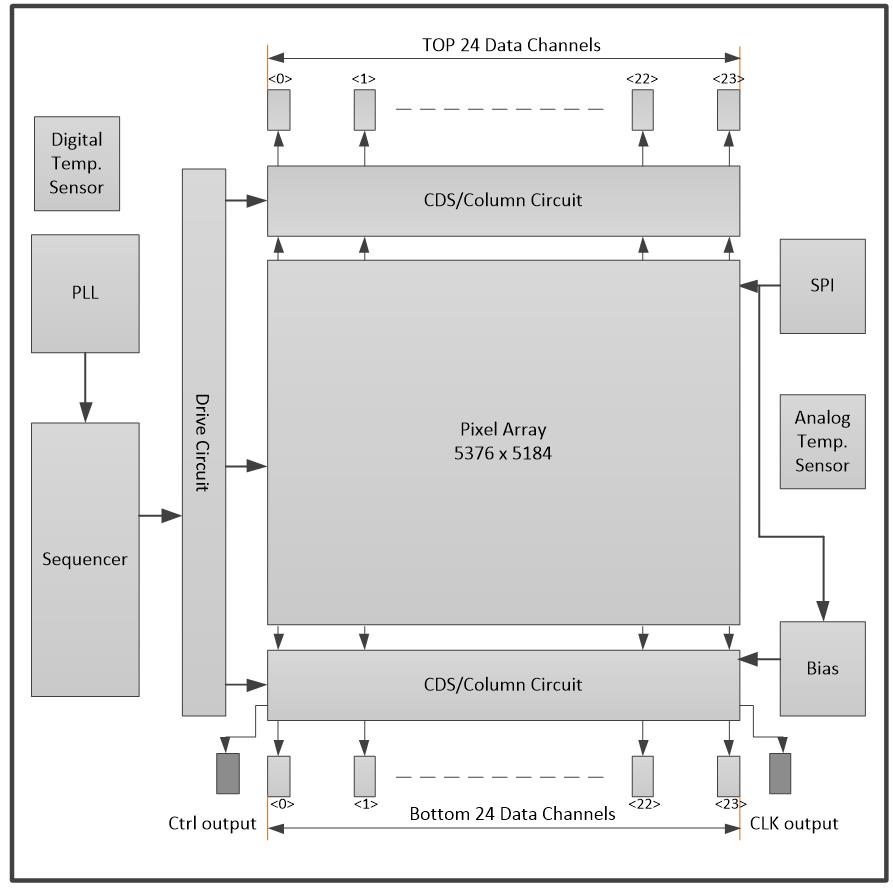

More pictures of the product:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.21.2022
