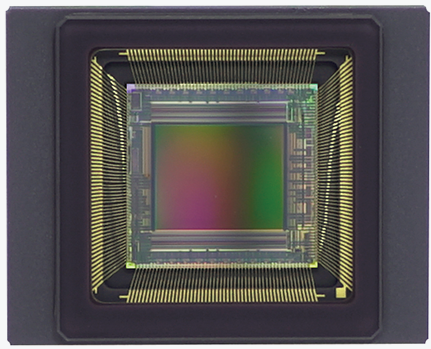

GMAX2505

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0118
Origin: China
Manufacturer: GPixel Inc.
Resolution5 MPix
Pixel number (H × V)2600 × 2160
Pixel size2.5 × 2.5 µm
Format1/2 ″
Format6.5 × 5.4 mm
Format (Diameter)8.5 mm
Frame Rate (10bit)290 fps
Frame Rate (12bit)121 fps
ShutterGlobal
ChromaMono, RGB Color
Photosensitive area6.5 × 5.4 mm × mm
Linear Full Well Capacity6.7 @ PGA Gain ×1 ke−
Temporal Noise<1.8 @ PGA Gain ×4 e−
Dynamic range>62 @ 10-bit mode, >65 @ 12-bit mode dB
Peak QE65.5 (mono with microlens) %
Parasitic Light Sensitivity<−80 dB
Angular Response>13 (80 % response) °
Dark current1.2 @ 30 °C e−/pixel/sec
Supply Voltages3.3 V / 1.3 V for analog, 1.8 V–3.3 V for IO, 1.3 V for digital
Output Format20 pairs sLVDS data, 1 pair DDR clock
Channel Multiplexing20/10/8/6/4/2 @ 10-bit mode, 10/8/6/4/2 @ 12-bit mode
Power Consumption<0.9 @ 10-bit mode, <0.6 @ 12-bit mode W
Package226-pin LGA

To the product series

GMAX2505 2.5 µm 5 MP Global Shutter Image Sensor. This sensor is available in different versions, for example:

  • GMAX2505-AVM-HLT-AUx: Monochrome, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 290fps @ 10bit 20 x LVDS
  • GMAX2505-BVC-HLT-AUxx: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 290fps @ 10bit 20 x LVDS
  • GMAX2505-AVM-NLT-AUx: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 290fps @ 10bit 20 x LVDS
  • GMAX2505-BVC-NLT-AUx: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, Normal speed version, 121 fps @ 12 bit 10x LVDS

Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!





Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics



More pictures of the product:

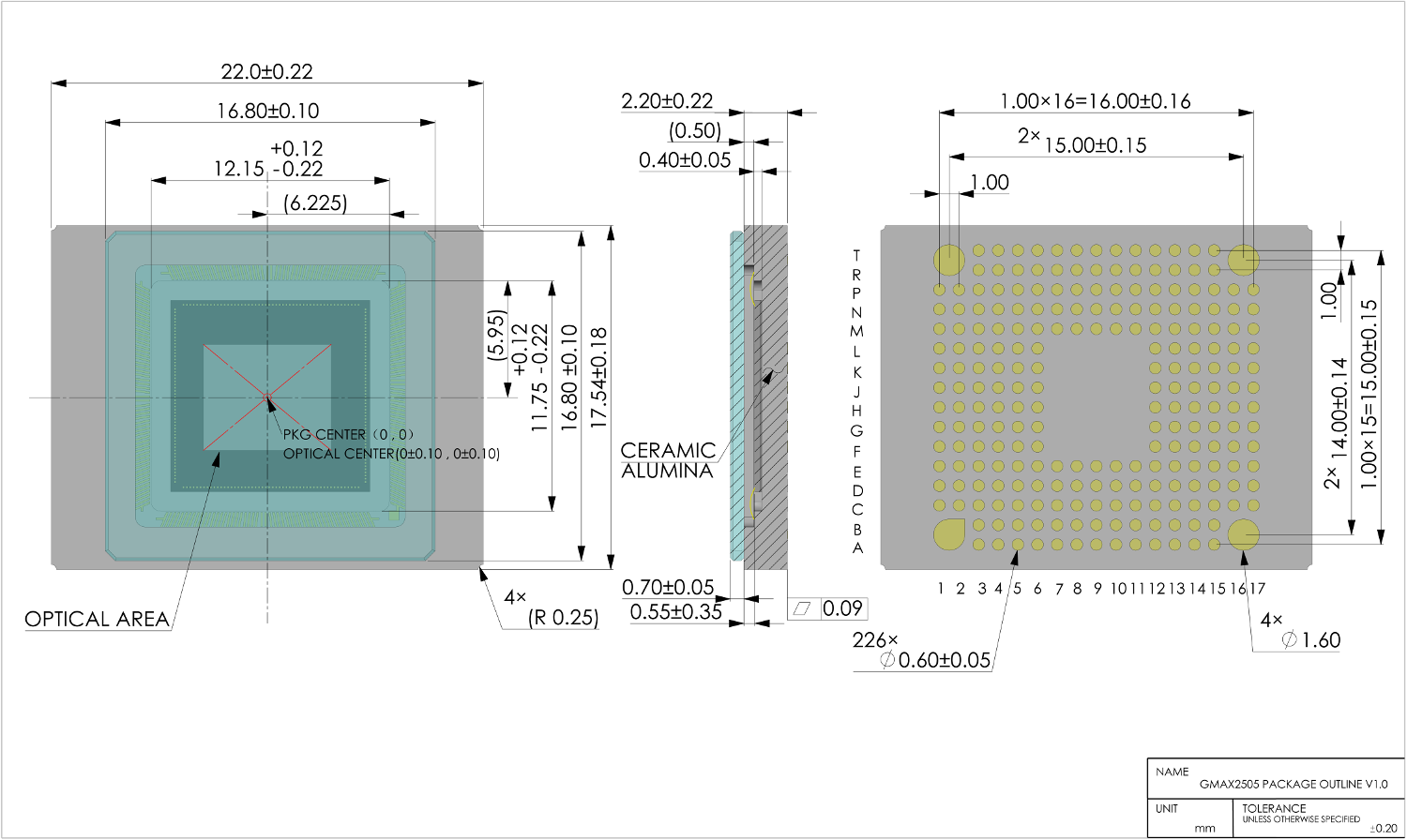

Package Drawing

Package Drawing

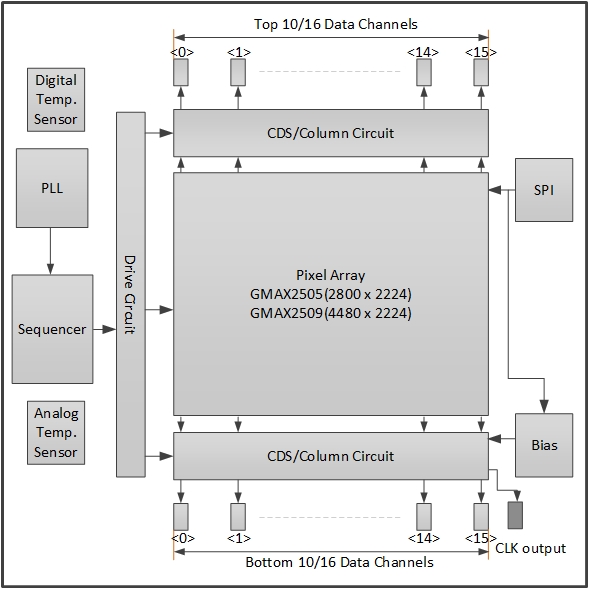

Block diagram

Block diagram

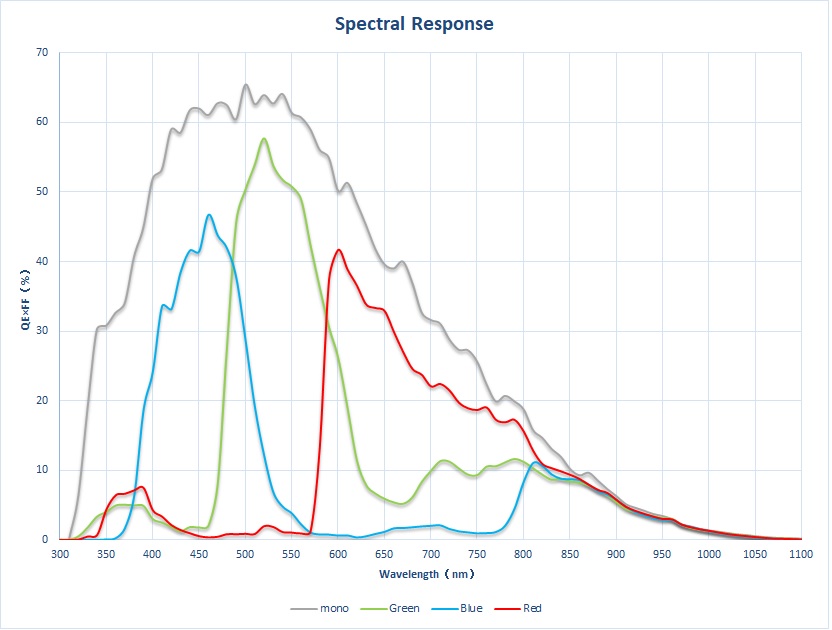

QE Diagram

QE Diagram

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.21.2022
