GSENSE4040

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0065
Origin: China
Manufacturer: Gpixel Inc.
Resolution16 MPix
Pixel number (H × V)4096 × 4096
Pixel size9 × 9 µm
Format3.3 ″
Format36.8 × 36.8 mm
Format (Diameter)52 mm
Frame Rate HDR24 fps
Frame Rate HDR (2×2 binning)96 fps
ShutterRolling
ChromaMonochrome
Photosensitive area36.8 × 36.8 mm × mm
Linear Full Well Capacity74 @ PGA Gain ×2.8 ke
Temporal Noise3.7 @ PGA Gain ×16.5 e
Dynamic range86 @ HDR mode dB

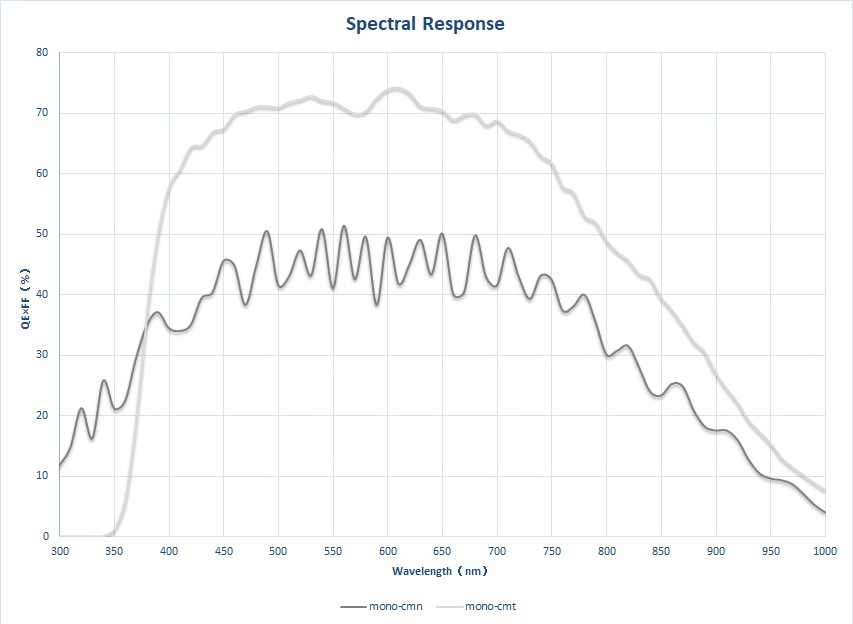

Peak QE74@ 600 nm (microlens) / 50 @ 600 nm (no microlens) %
Angular Response>25 (80 % response) °
Dark current12.2 @ 25 °C e/pixel/sec
Supply Voltages3.3 V for analog, 1.8 V for digital
Output Format18 pairs LVDS data, 1 pair control
Power Consumption1.2 W

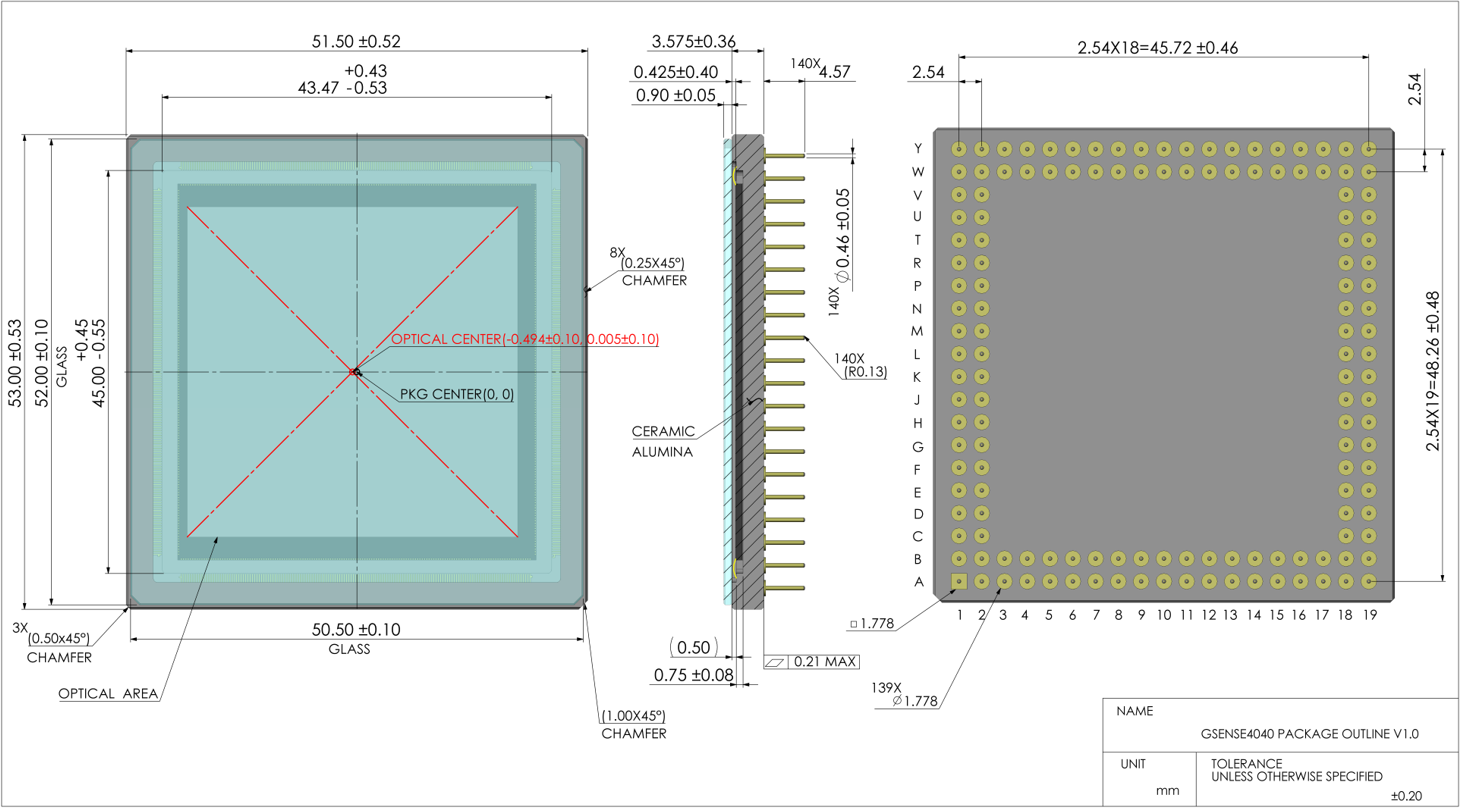

Package140-pin PGA
On request only
Evaluation board available

To the product series

GSENSE4040 9 µm 16 MP Rolling Shutter Image Sensor. This sensor is available in different versions, for example:

  • GSENSE4040-CVM-NPN-ARx: Monochrome version without microlenses 140-pin PGA package Removable D263T glass lid without AR coating
  • GSENSE4040-CVM-NPT-BBx: Monochrome version with microlenses 140-pin PGA package Sealed D263T glass lid with AR coating on both sides

Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!






Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics

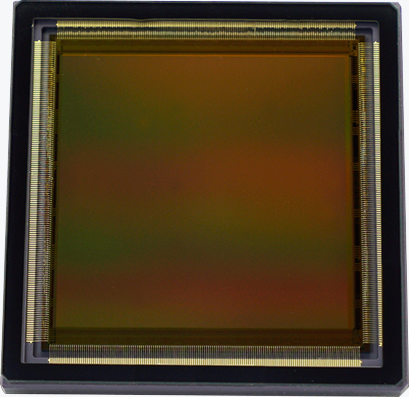

More pictures of the product:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.21.2022
