| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0167 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 4 kPix |
| Pixel number (H × V) | 4096 × 2 |
| Pixel size | 7 × 7 µm |
| Format (Length) | 28.67 mm |
| Line Rate | 100 (2-line), 200 (1-line) kHz |
| Shutter | Global |
| Chroma | Mono, Bayer Color |
| Photosensitive area | 28.67 mm × mm |
| Linear Full Well Capacity | 27.5 @ low gain, 10 @ high gain ke− |
| Temporal Noise | 13 @ low gain, 5.2 @ high gain e− |
| Dynamic range | 66.5 @ low gain, 65.6 @ high gain dB |

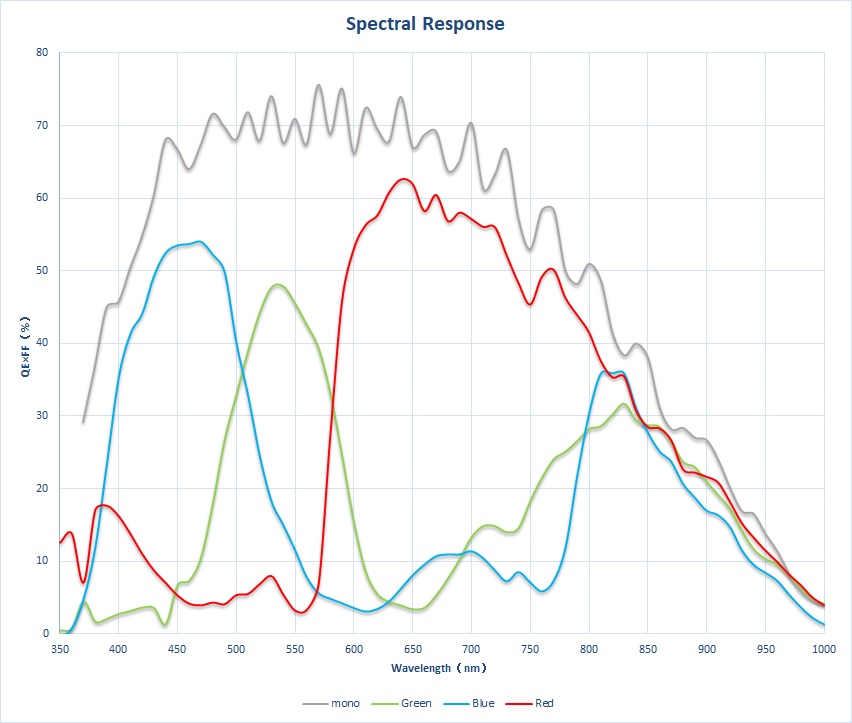

| Peak QE | 70 (mono without microlens) @ 550 nm % |
| Angular Response | 20 (80 % response) ° |
| Dark current | 10 @ 70 °C e−/pixel/sec |
| Output Format | 12 pairs LVDS data, 1 pair DDR clock, 1 pair control |
| Channel Multiplexing | 12/6 |
| Power Consumption | 2.2 @ 1-line mode W |

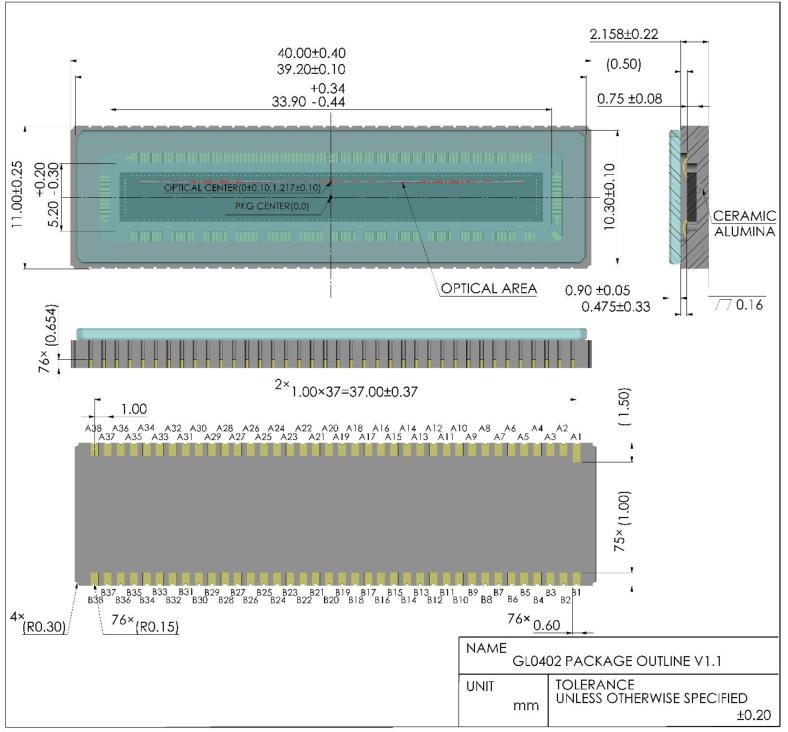

| Package | 76-pin CLCC |

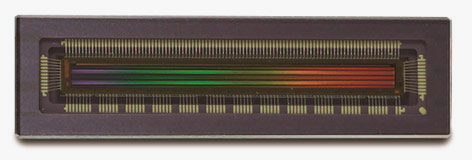

GL0402 7 µm 4 K Global Shutter Line Scan Image Sensor. This sensor is available in different versions, for example:
Note: The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:
More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
