| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0165 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 4 MPix |
| Pixel number (H × V) | 2048 × 2048 |
| Pixel size | 11 × 11 µm |
| Format | 2 ″ |
| Format | 22.5 × 22.5 mm |
| Format (Diameter) | 31.9 mm |
| Frame Rate HDR | 24 fps |
| Frame Rate STD | 48 fps |
| Shutter | Rolling |
| Chroma | Monochrome |
| Photosensitive area | 22.528 × 22.528 mm × mm |
| Linear Full Well Capacity | 91 @ PGA Gain ×1.29 ke− |
| Temporal Noise | 1.45 @ PGA Gain ×7.25 e− |
| Dynamic range | 96 @ HDR mode, 68.4 @ STD mode dB |

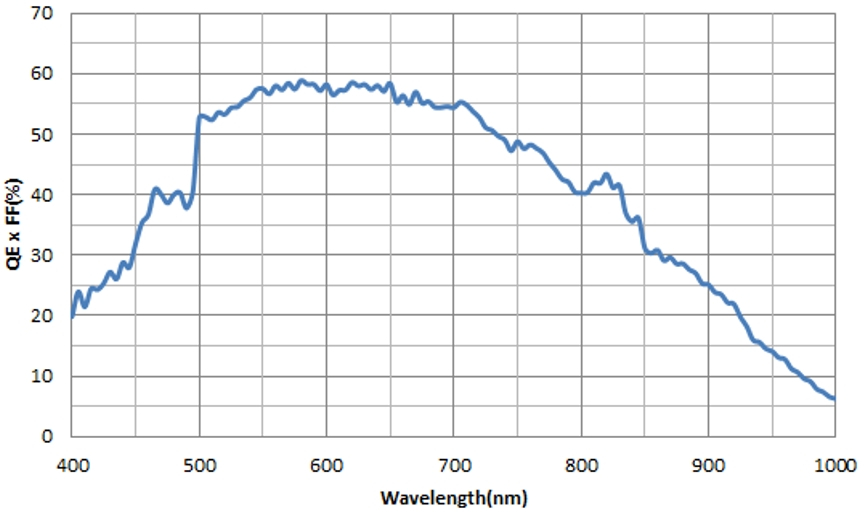

| Peak QE | 60 @ 600 nm % |
| Dark current | 31 @ 25 °C e−/pixel/sec |
| Supply Voltages | 3.3 V for analog, 1.8 V for digital |
| Output Format | 8 pairs LVDS data, 1 pair control |
| Power Consumption | <600 mW |

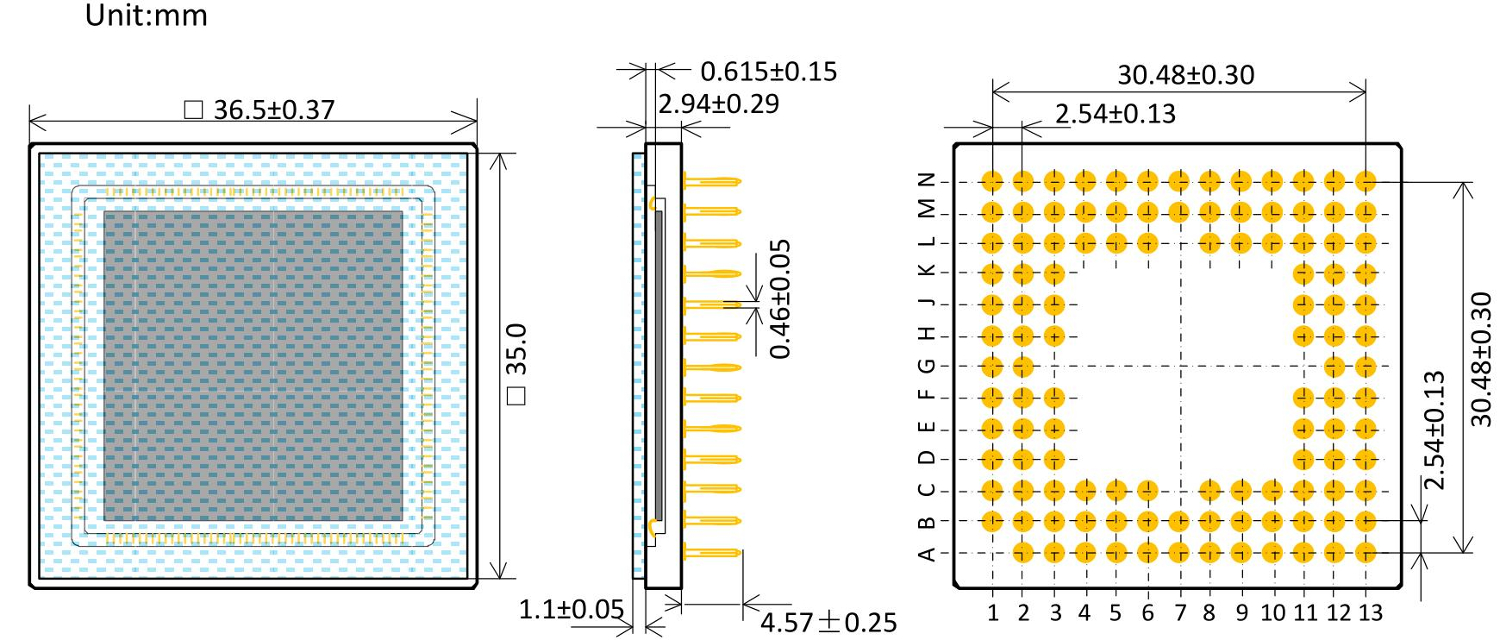

| Package | 115-pin PGA |
The GSENSE400 is a 2k × 2k, 11 µm pixel scientific-grade CMOS sensor with 1.45 e− read noise, 91 ke− full well capacity and a dynamic range of 96 dB. This sensor is available in different versions, for example:
Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:

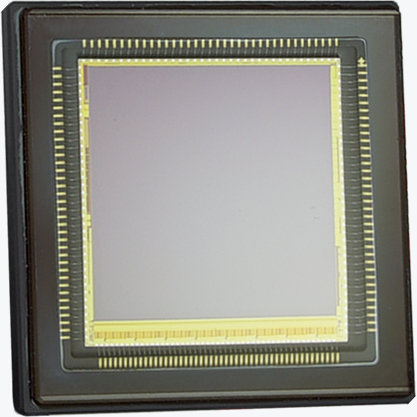

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
