| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0164 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 2 MPix |
| Pixel number (H × V) | 2048 × 1152 |
| Pixel size | 6.5 × 6.5 µm |
| Format | 1 ″ |
| Format | 13.3 × 7.5 mm |
| Format (Diameter) | 15.2 mm |
| Frame Rate Rolling HDR 12bit | 83 fps |
| Frame Rate Global DDS 10bit | 653 fps |
| Shutter | Rolling |
| Chroma | Monochrome |
| Photosensitive area | 13.3 × 7.5 mm × mm |
| Linear Full Well Capacity | 45 @ Rolling shutter ke− |
| Temporal Noise | <2 @ Rolling HDR, 29 @ Global DDS e− |
| Dynamic range | 87 @ Rolling HD dB |

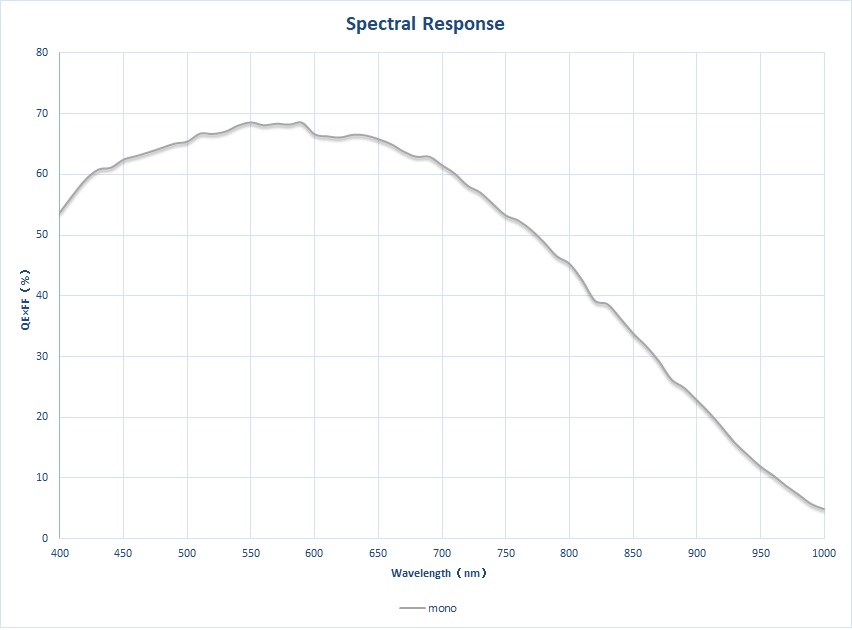

| Peak QE | 72 % |
| Dark current | 13 @ 30 °C e−/pixel/sec |
| Supply Voltages | 3.3 V for analog, 1.8 V for digital |
| Output Format | 8 pairs LVDS for Rolling HDR & 32 pairs LVDS data for Global DDS |
| Power Consumption | <0.85 @ Rolling HDR W |
| Package | 153-pin µPGA |
| Evaluation board available | ✔ |

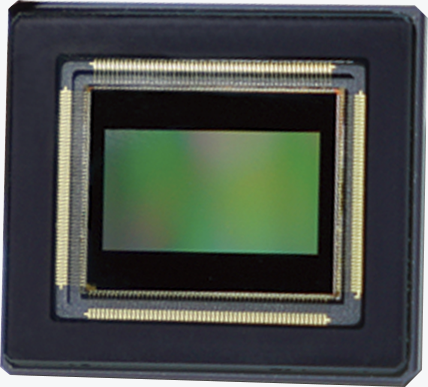

GSENSE2011 6.5 µm 2 MP Rolling Shutter Image Sensor. This sensor is available in different versions, for example:
Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:
More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
