| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0162 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 37 MPix |
| Pixel number (H × V) | 6144 × 6144 |
| Pixel size | 10 × 10 µm |
| Format | 5.4 ″ |
| Format | 61.44 × 61.44 mm |
| Format (Diameter) | 86.8 mm |
| Frame Rate STD 12bit | 26 fps |
| Frame Rate HDR 12bit | 11 fps |
| Frame Rate STD 14bit | 8 fps |
| Shutter | Rolling |
| Chroma | Monochrome |
| Photosensitive area | 61.44 × 61.44 mm × mm |
| Linear Full Well Capacity | 102 @ PGA Gain ×2 ke− |
| Temporal Noise | 3 @ PGA Gain ×6.6 e− |
| Dynamic range | 90 @ 12bit HDR mode, 73 @ 12bit STD mode 77 @ 14bit STD mode dB |

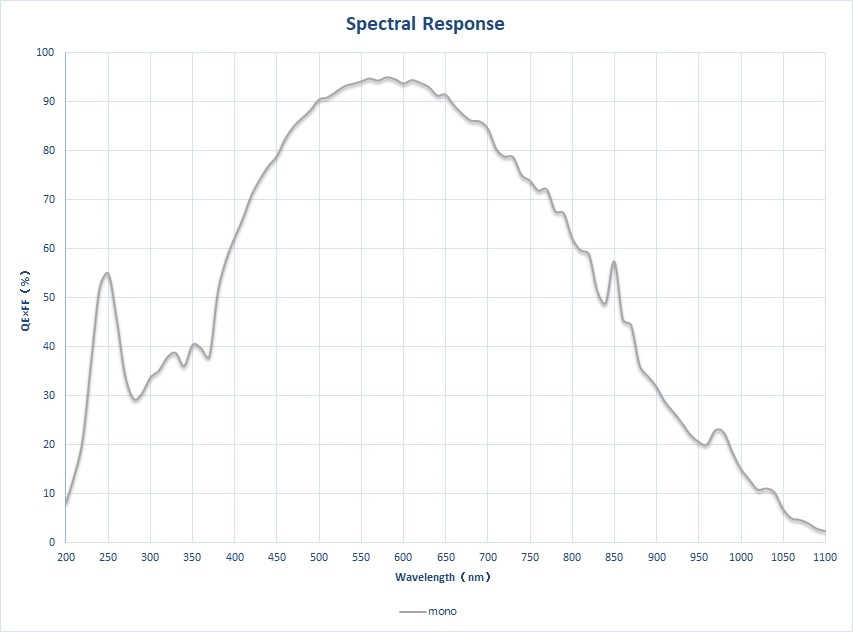

| Peak QE | 95 @ 580 nm % |
| Dark current | 20 @ 25 °C, 0.02 @ −55 °C e−/pixel/sec |
| Supply Voltages | 6.5 V for analog, 1.85 V for digital |
| Output Format | 52 pairs LVDS data, 2 pair control |
| Channel Multiplexing | 52/14 |
| Power Consumption | 4 @ 12bit HDR mode, 4.5 @ 12bit STD mode, 3.5 @ 14bit STD mode W |

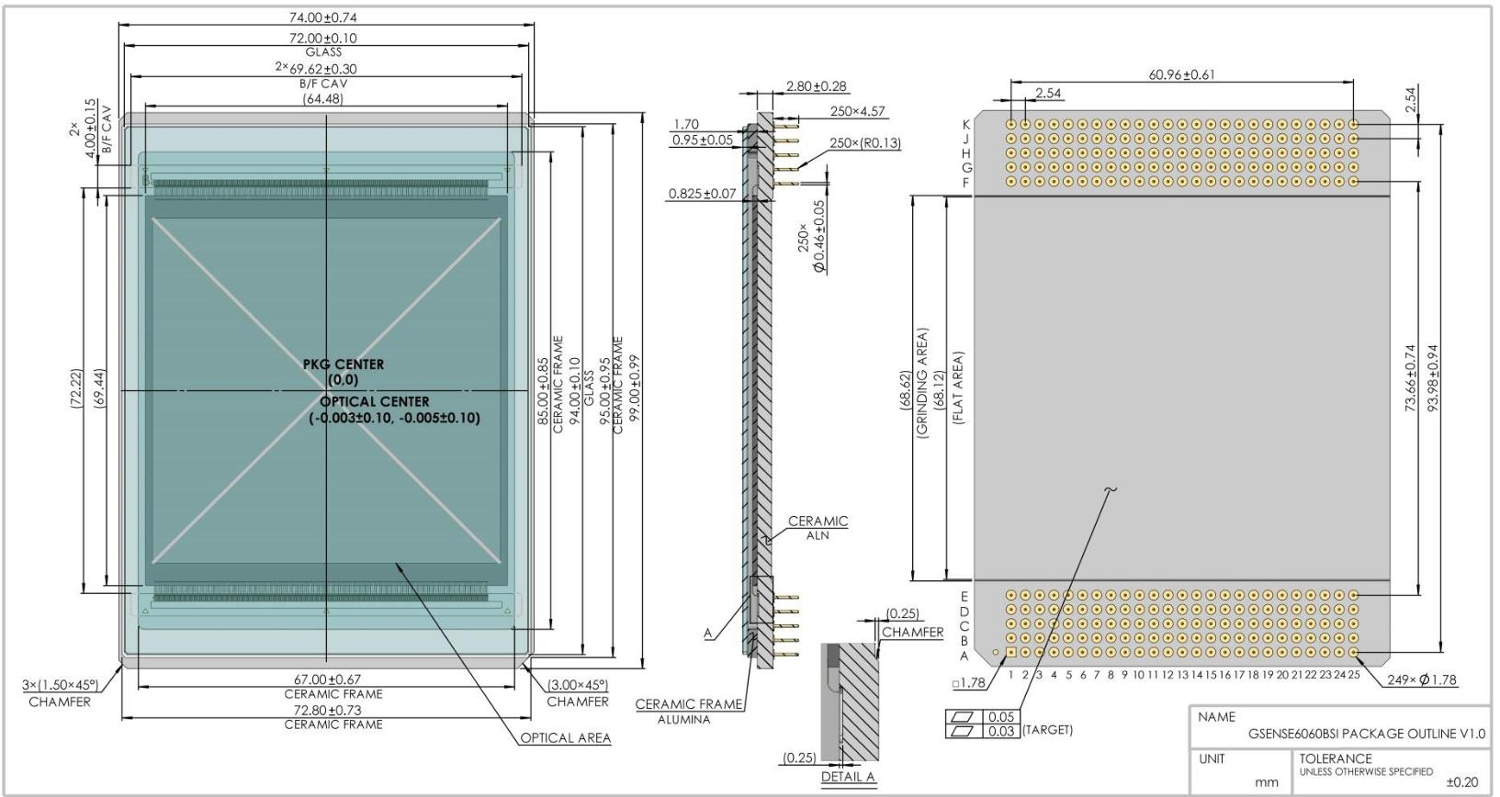

| Package | 250-pin PGA (ALN) |
| On request only | ✔ |

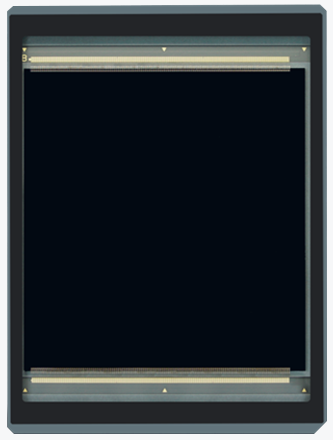

GSENSE6060BSI 10 µm 37 MP Rolling Shutter Image Sensor. This sensor is available in different versions, for example:
Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:

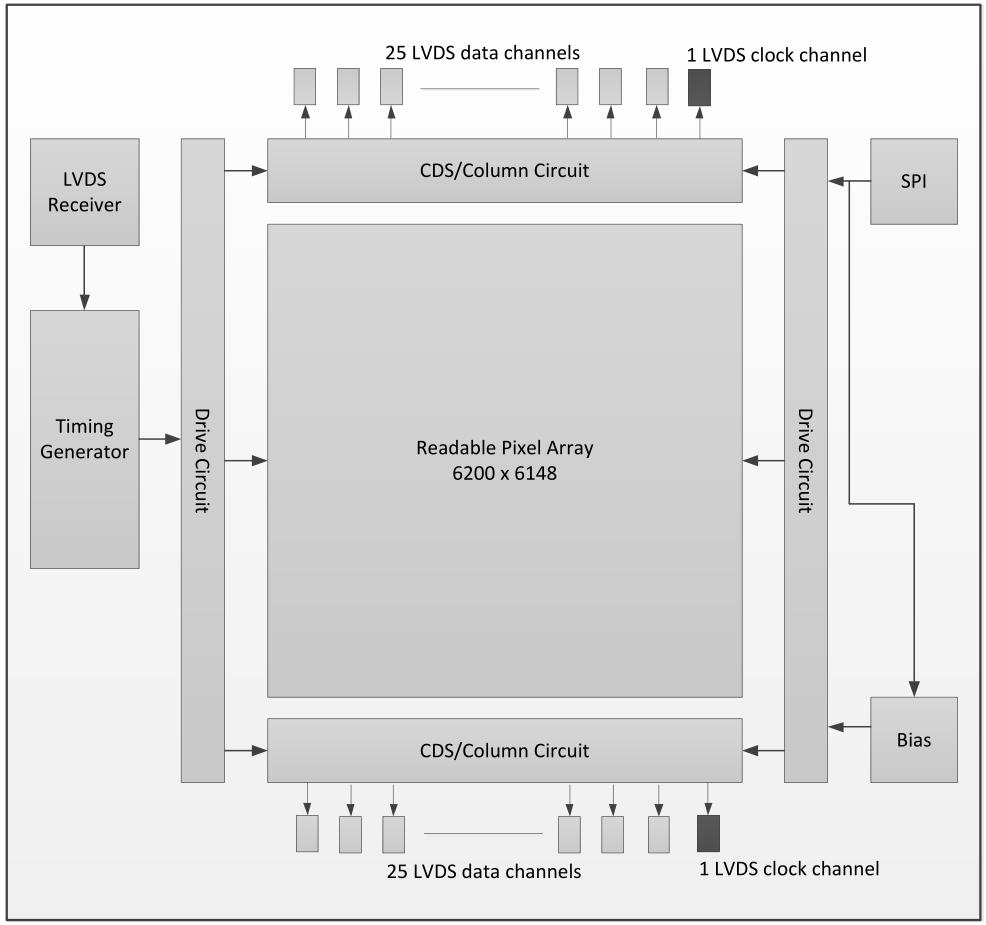

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
