| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0161 |
| Origin: | China |
| Manufacturer: | GPixel Inc. |
| Resolution | 4 MPix |
| Pixel number (H × V) | 2048 × 2048 |
| Pixel size | 11 × 11 µm |
| Format | 2 ″ |
| Format | 22.5 × 22.5 mm |
| Format (Diameter) | 31.9 mm |
| Frame Rate HDR | 24 fps |
| Frame Rate STD | 48 fps |
| Shutter | Rolling |
| Chroma | Monochrome |
| Photosensitive area | 22.528 × 22.528 mm × mm |
| Linear Full Well Capacity | 91.2 @ low gain ke− |
| Temporal Noise | 1.6 @ high gain e− |
| Dynamic range | 94 @ HDR mode dB |

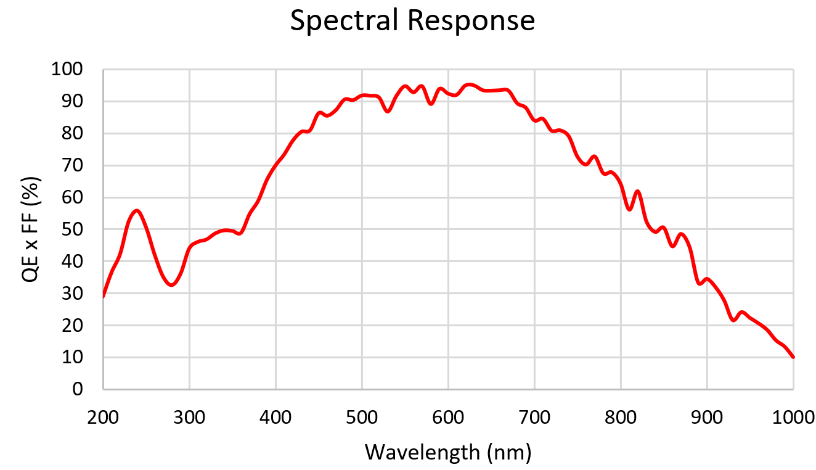

| Peak QE | 95 @ 570 nm % |
| Dark current | 42 @ 30 °C e−/pixel/sec |
| Supply Voltages | 3.3 V for analog, 1.8 V for digital |
| Output Format | 8 pairs LVDS data, 1 pair control |
| Power Consumption | 626 @ HDR mode, 644 @ STD mode mW |

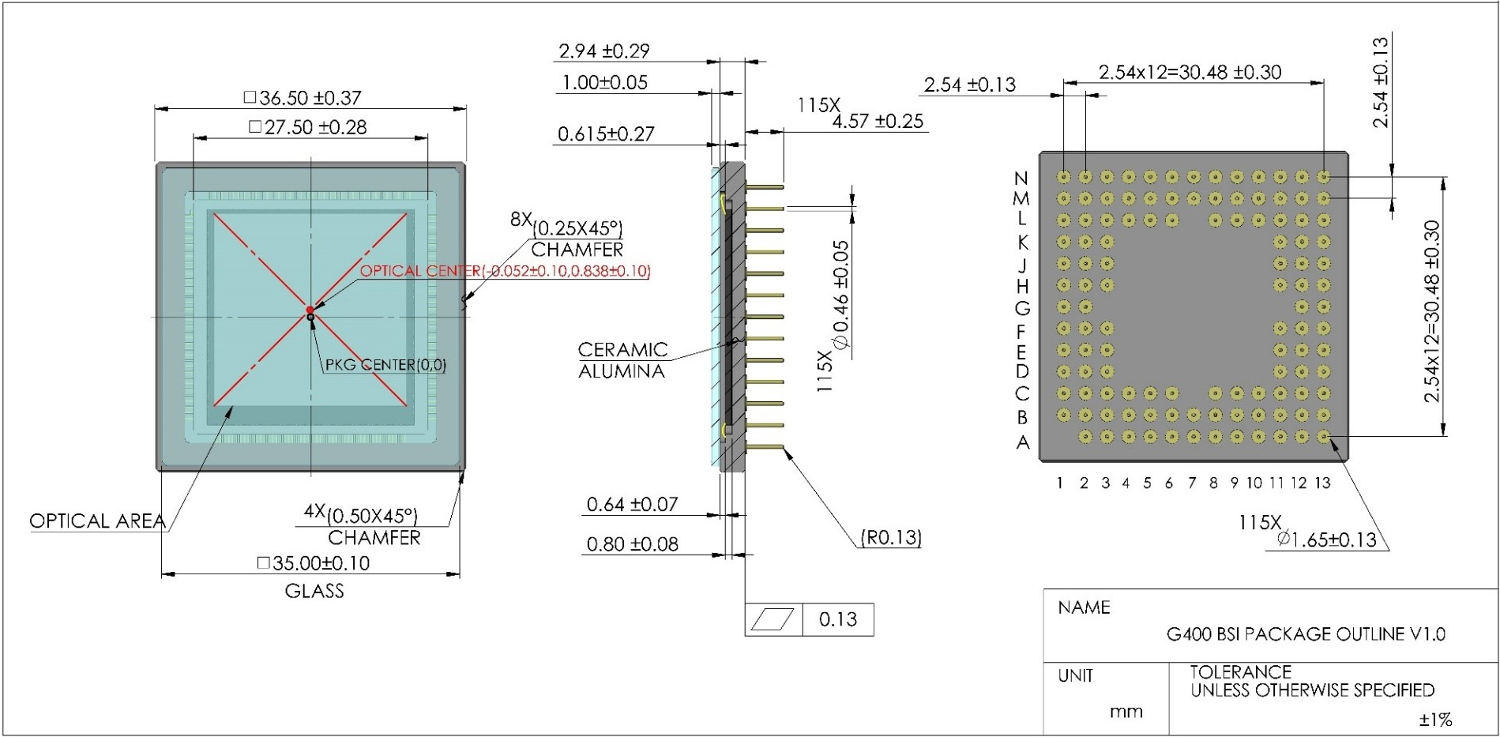

| Package | 115-pin PGA |
| Evaluation board available | ✔ |

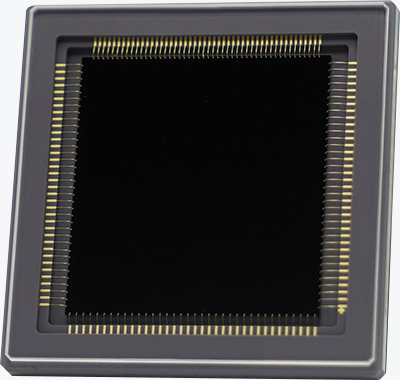

GSENSE400BSI 11 µm 4 MP Rolling Shutter Image Sensor. This sensor is available in different versions, for example:
Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:
More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
