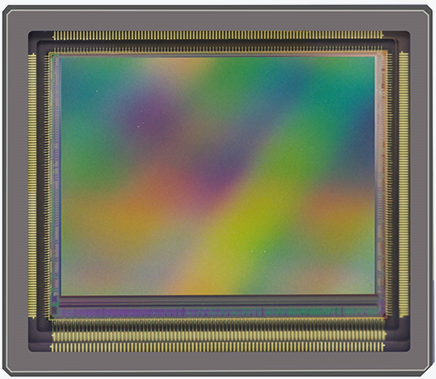

GMAX3265

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0160
Origin: China
Manufacturer: GPixel Inc.
Resolution65 MPix
Pixel number (H × V)9344 × 7000
Pixel size3.2 × 3.2 µm
Format2.3 ″
Format29.9 × 22.4 mm
Format (Diameter)37.4 mm
Frame Rate (10bit)71 fps
Frame Rate (12bit)31 fps
ShutterGlobal
ChromaMono, RGB Color
Photosensitive area29.9 × 22.4 mm × mm
Linear Full Well Capacity10.9 @ PGA gain ×0.75 ke−
Temporal Noise1.9 @ PGA gain ×6 e−
Dynamic range >62.3 @ 10-bit mode, >66 @ 12-bit mode dB
Peak QE65.3 (mono with microlens) %
Parasitic Light Sensitivity<−89 dB
Angular Response>15 (80 % response) °
Dark current5.3 @ 40 °C e−/pixel/sec
Supply Voltages3.3 V / 1.3 V for analog, 1.8–3.3 V for IO, 1.3 V for digital
Output Format56 pairs sLVDS data, 1 pair DDR clock, 1 pair control
Channel Multiplexing56/28/14/8/7/4/2/1 @ 10-bit mode, 28/14/7/4/2/1 @ 12-bit mode
Power Consumption<2.3 @ 10-bit mode, <2.1 @ 12-bit mode W
Package239-pin µPGA
On request only✔
Evaluation board available✔

To the product series

GMAX3265 3.2 µm 65 MP Global Shutter Image Sensor. This sensor is available in different versions, for example:

  • GMAX3265-BVM-HUT-BUx: Monochrome, with microlens, ceramic 239 pins uPGA, Sealed D263T glass with AR coating, High speed version, 71fps @ 10bit 56 x LVDS
  • GMAX3265-BVC-HUT-BUx: Bayer color, with microlens, ceramic 239 pins uPGA, Sealed D263T glass with AR coating, High speed version, 71fps @ 10bit 56 x LVDS
  • GMAX3265-BVM-HUT-BRx: Monochrome, with microlens, ceramic 239 pins uPGA, Taped D263T glass with AR coating, High speed version, 71fps @ 10bit 56 x LVDS
  • GMAX3265-BVM-NUT-BUx: Monochrome, with microlens, ceramic 239 pins uPGA, Sealed D263T glass with AR coating, Normal speed version, 31fps @ 12bit 28 x LVDS
  • GMAX3265-BVC-NUT-BUx: Bayer color, with microlens, ceramic 239 pins uPGA, Sealed D263T glass with AR coating, Normal speed version, 31fps @ 12bit 28 x LVDS
  • GMAX3265-BVM-NUT-BRx Monochrome, with microlens, ceramic 239 pins uPGA, Taped D263T glass with AR coating, Normal speed version, 31fps @ 12bit 28 x LVDS

Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!





Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics



More pictures of the product:

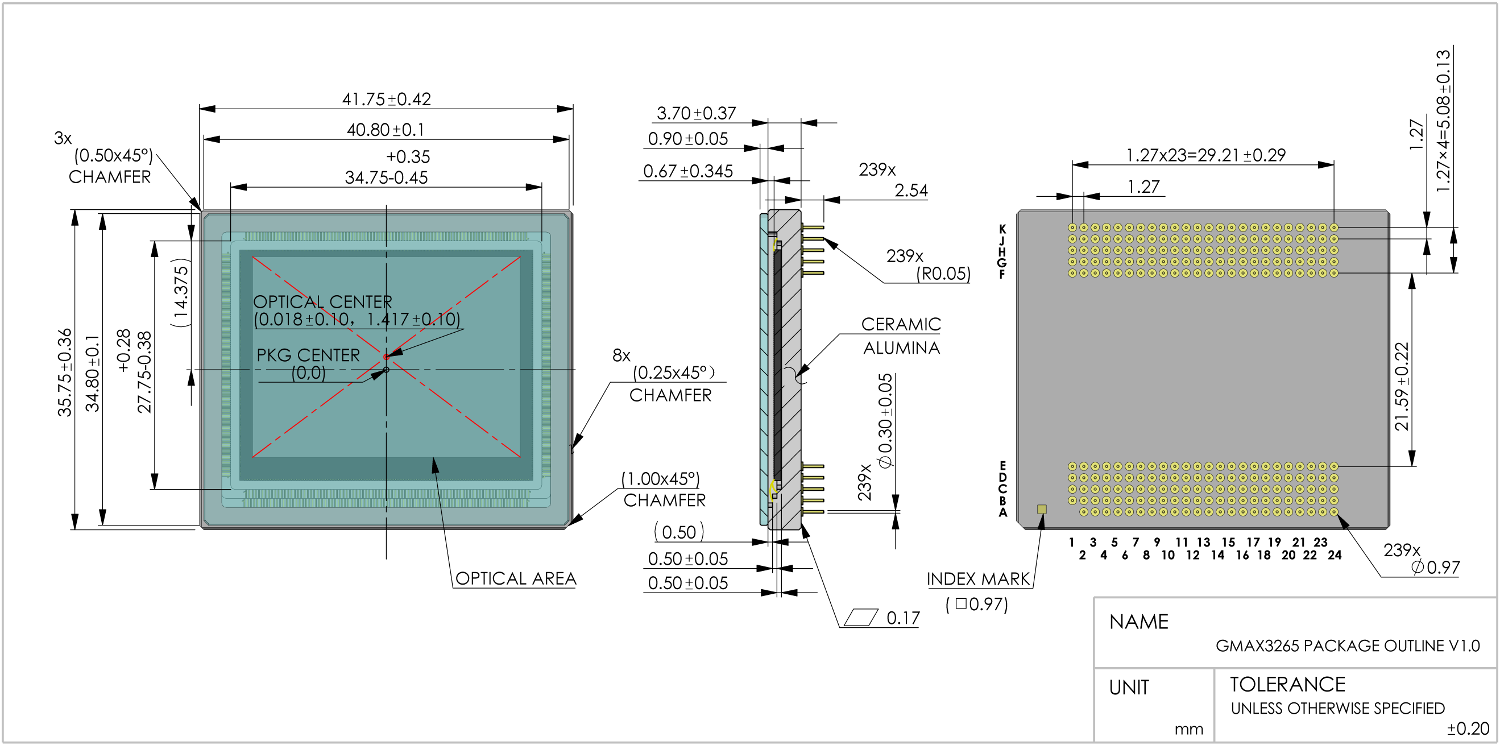

Package Drawing

Package Drawing

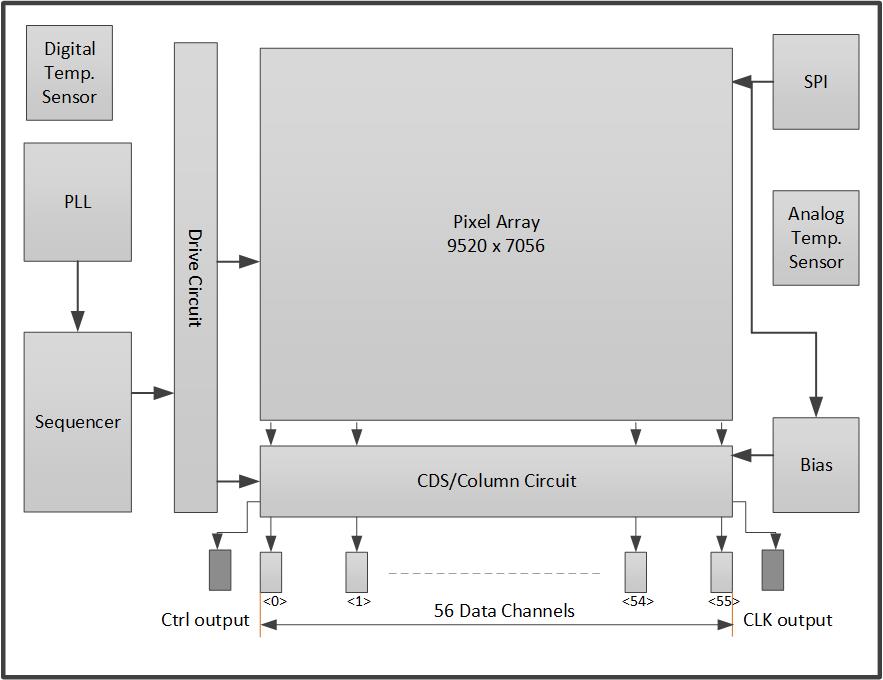

Block diagram

Block diagram

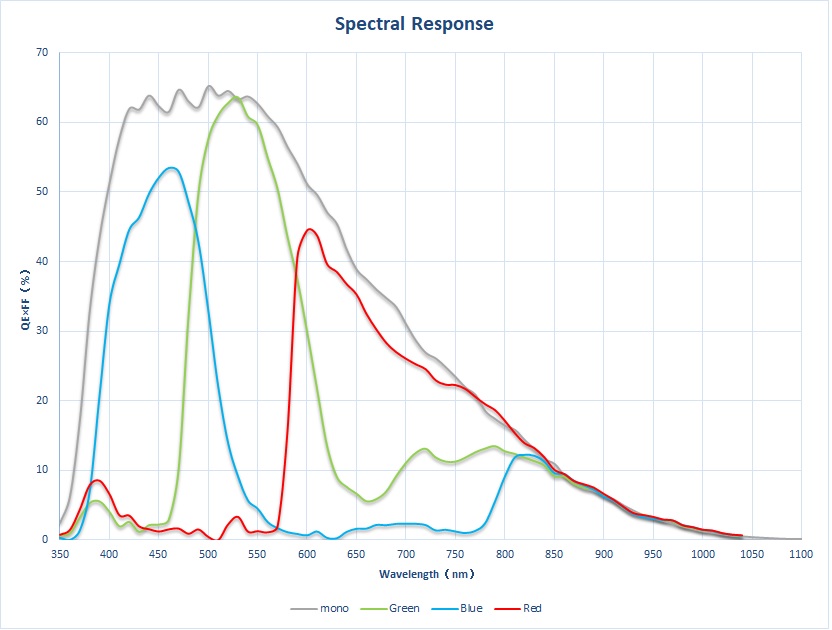

QE Diagram
