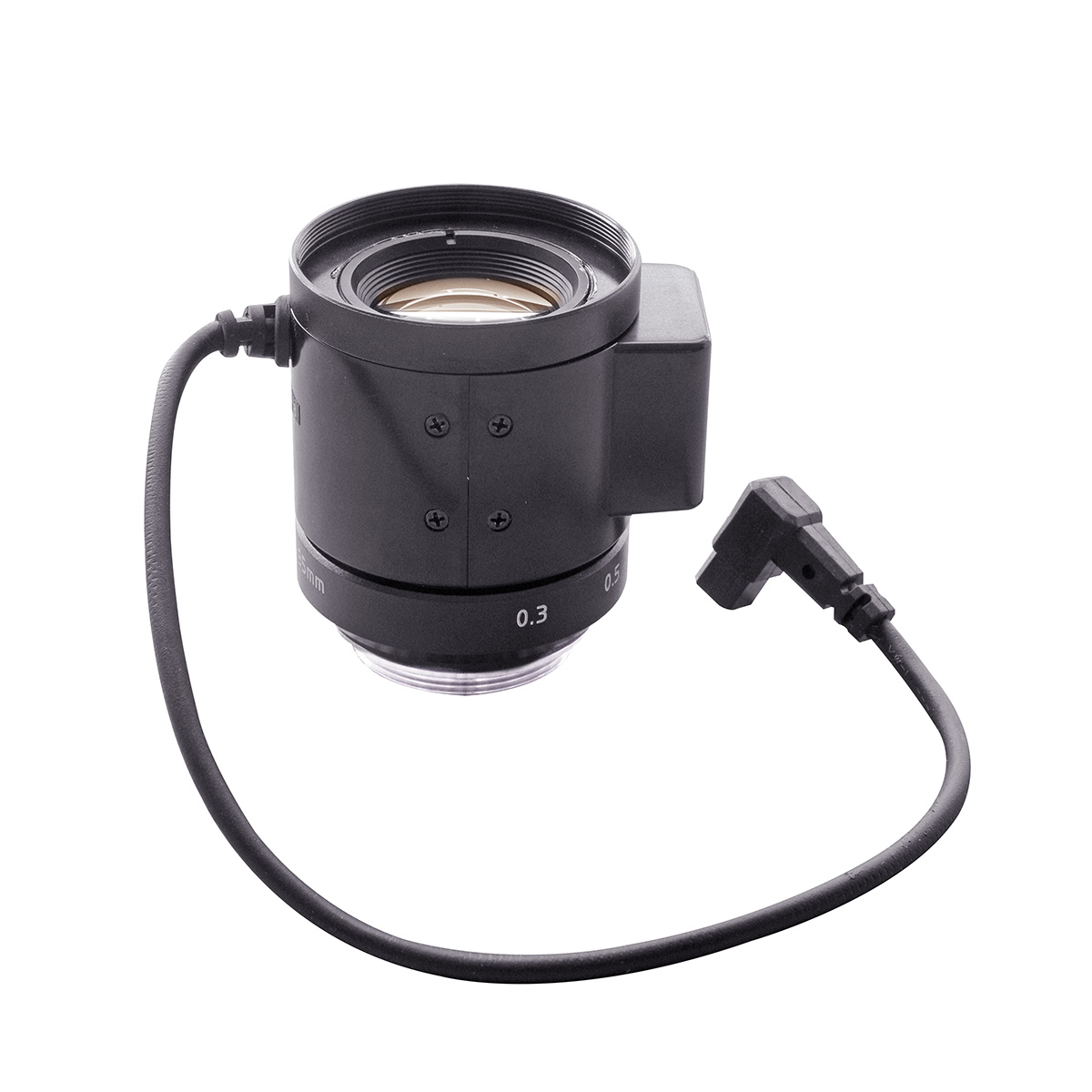

LM35JC5MM-IR

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0151
Origin: Japan
Manufacturer: Kowa
Focal length35 mm
Pixel size3.5 µm
MountC-Mount
Control IrisP-Iris
ApertureF2–40
Design WavelengthVIS 380–780; IR-corrected (Day & Night) nm
Focus range [m]0.5–∞ m
Control FocusManual
Distortion−0.3 %
Backfocus [mm]19.2 mm
Filter threadM35.5 × P0.5
Dimension [mm]Ø49 × 50 mm
Weight100 g
Operating Temperature−10 °C – +50 °C

To the product series

  • Up to 5 Megapixel
  • P-Iris lens
  • Metal mount
  • IR-corrected
  • Metal housing
  • Application: ITS/traffic monitoring







Documents for download:

Datasheet
MTF
Relative Illumination
Transmission data



Other versions of the article and matching products:

  • LM25JC5MM-IR: same series, next smaller focal length (25 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 01.12.2021
