LM25JC5MM-IR

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0150
Origin: Japan
Manufacturer: Kowa
Focal length25 mm
Pixel size3.5 µm
MountC-Mount
Iris ControlP-Iris
ApertureF1.4–38
Design WavelengthVIS 380–780; IR-corrected (Day & Night) nm
Focus range [m]0.5–∞ m
Focus ControlManual
Distortion−0.3 %
Backfocus [mm]12 mm
Filter threadM30.5 × P0.5
Dimension [mm]Ø50 × 51.4
Weight100 g
Operating Temperature−10 °C – +50 °C

To the product series

  • Up to 5 Megapixel
  • P-Iris lens
  • Metal mount
  • IR-corrected
  • Metal housing
  • Application: ITS/traffic monitoring






Documents for download:

Datasheet
MTF
Relative Illumination
Transmission data



More pictures of the product:

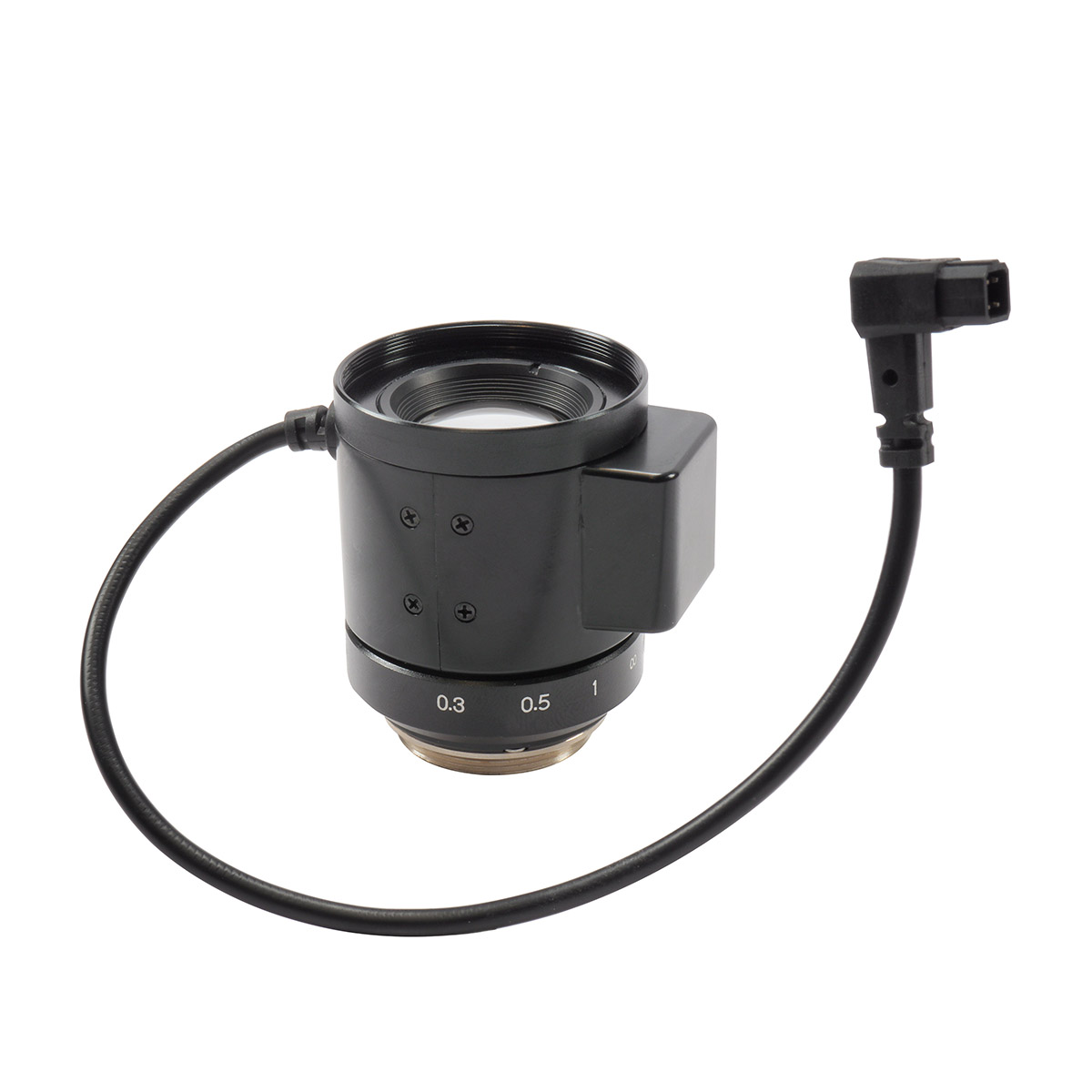

Cable

Cable

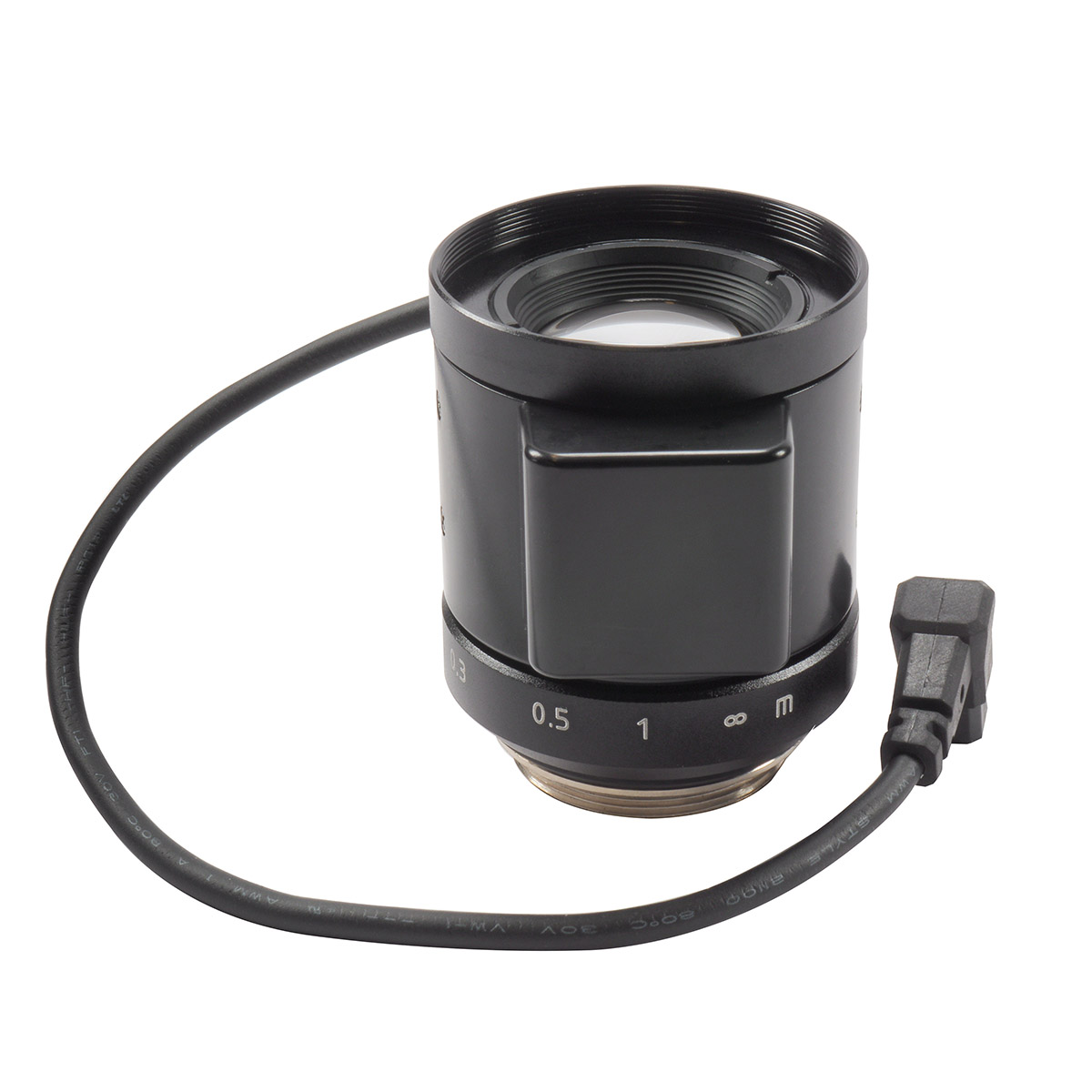

Back

Back


Other versions of the article and matching products:

  • LM16JC5MM-IR: same series, next smaller focal length (16 mm)
  • LM35JC5MM-IR: same series, next larger focal length (35 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 01.12.2021
