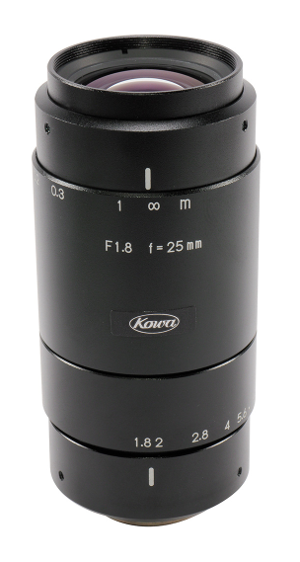

LM25SC

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0005
Origin: Japan
Manufacturer: Kowa
Focal length25 mm
MountC-Mount
ApertureF1.8–F16
Focus range [m]0.15–∞ m
Distortion−0.34 %
Dimension [mm]Ø43 × 89 mm
Weight245 g
RemarkDiscontinued! Replaced by LM25FC24M

To the product series

Build-to-order!

  • Produces sharp images with high-resolution and contrast from the center to the edges (less degradation of corner resolution).
  • A high-precision aspheric lens significantly reduces the distortion and allows a short minimum object distance.
  • Kowa's wide-band multi-coating effectively reduces glare and refraction effects and provides high transmittance from the visible wavelength range to the NIR.







Documents for download:

Datasheet
Transmission data
MTF
Field Curvature / Distortion
Relative Illumination



Other versions of the article and matching products:

  • LM25FC24M: Replaced by this model
  • LM16SC: same series, next smaller focal length (16mm)
  • LM35SC: same series, next larger focal length (35mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 01.28.2021
