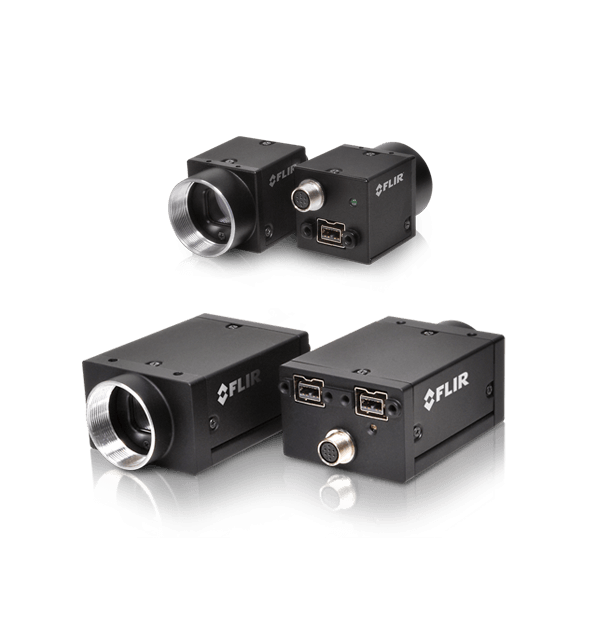

| Description | Camera by Teledyne FLIR |
| Articlenumber (Eureca): | 02.17.0147 |
| Origin: | Canada |
| Manufacturer: | FLIR |
| Resolution | 1624 x 1224 |
| Frame Rate | 15 fps |
| Megapixel | 2.0 MP |
| Chroma | Color |
| Sensor | Sony ICX274 |
| Sensor type | CCD |
| Readout | Global shutter |
| Sensor format | 1/1.8 ″ |
| Pixel size | 4.4 µm |
| Lens mount | C-Mount |
| ADC | 12-bit |
| Interface | FireWire 1394b |
| Power supply | 8 to 30 V |
| Dimension [mm] | 29 x 29 x 30 |
| Weight | 58 g |
This camera has been discontinued since 2019. This affects all firewire cameras with Sony ICX, Kodak Aptina MT9V022 and KAI0340 sensors. There are no more stocks available from the manufacturer!
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 03.17.2022
