LM50HC-VIS-SW

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0298
Origin: Japan
Manufacturer: Kowa
Focal length50 mm
Sensor format1 ″
Pixel size3.1 µm
MountC-Mount
Iris ControlManual
ApertureF2.5–16
TypeFixfocus
Design WavelengthVIS–SWIR (450–2000) nm
Focus range [m]0.5–∞ m
Focus ControlManual
Shooting range at MOD, horizontal127 mm
Shooting range at MOD, vertical95 mm
Resolution12 MPix
Distortion−0.41 %
Backfocus [mm]34.9 mm
Filter thread [mm]M30.5 × P0.5
Dimension [mm]Ø32 × 71
Weight155 g
Operating Temperature−10 °C – +50 °C

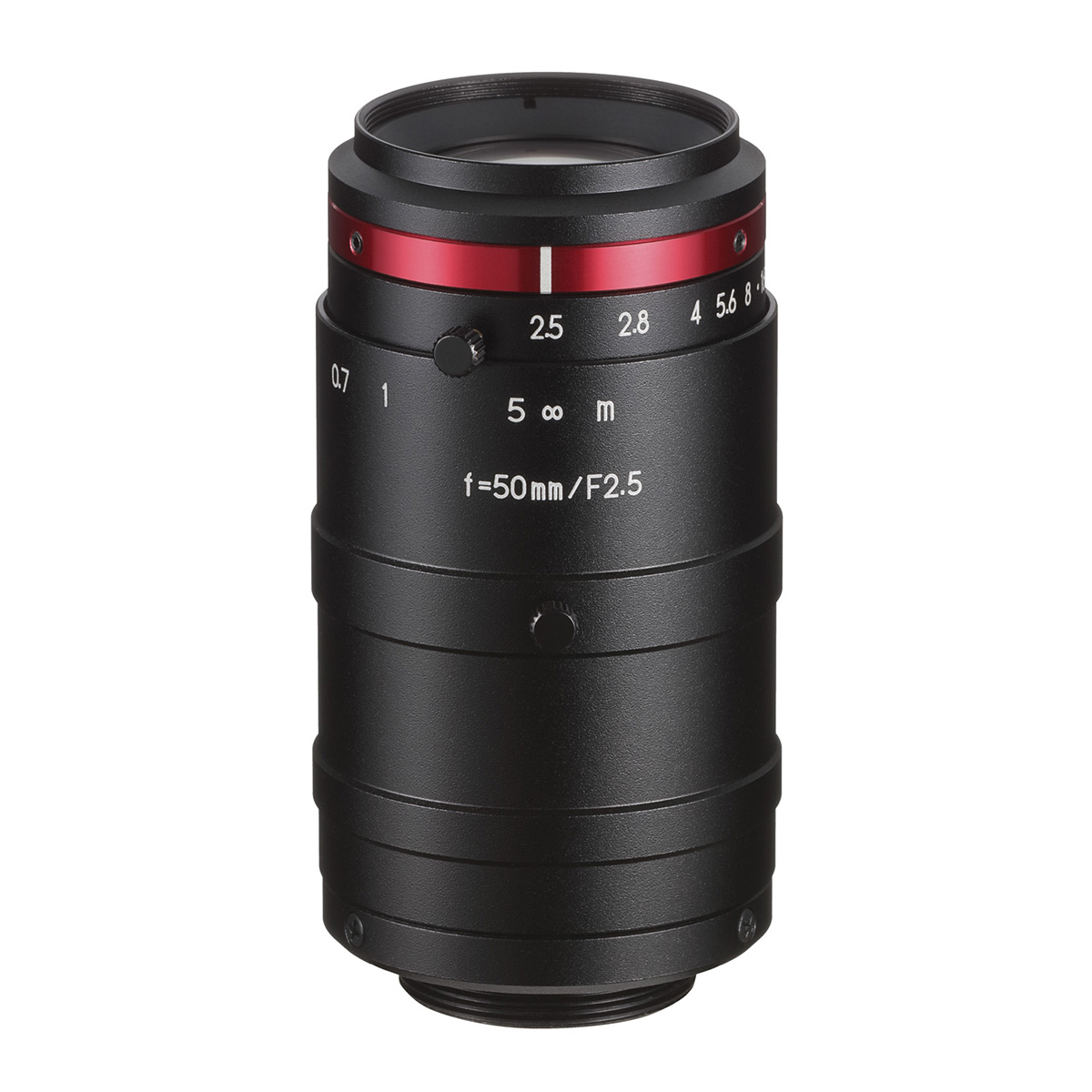

Side view lens

To the product series

  • 1" 12 Megapixel C-mount industrial lens
  • For sensors with a pixel size of 3.1 µm and larger
  • Suitable for Sony IMX990, IMX991 sensors and many more
  • High performance compact lens
  • Very low distortion







Documents for download:

Datasheet
Field Curvature / Distortion
MTF VIS
MTF SWIR
Relative Illumination
Transmission data

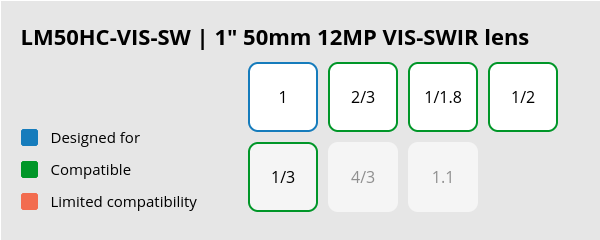

Compatible sensor sizes (inch)



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 08.19.2021
