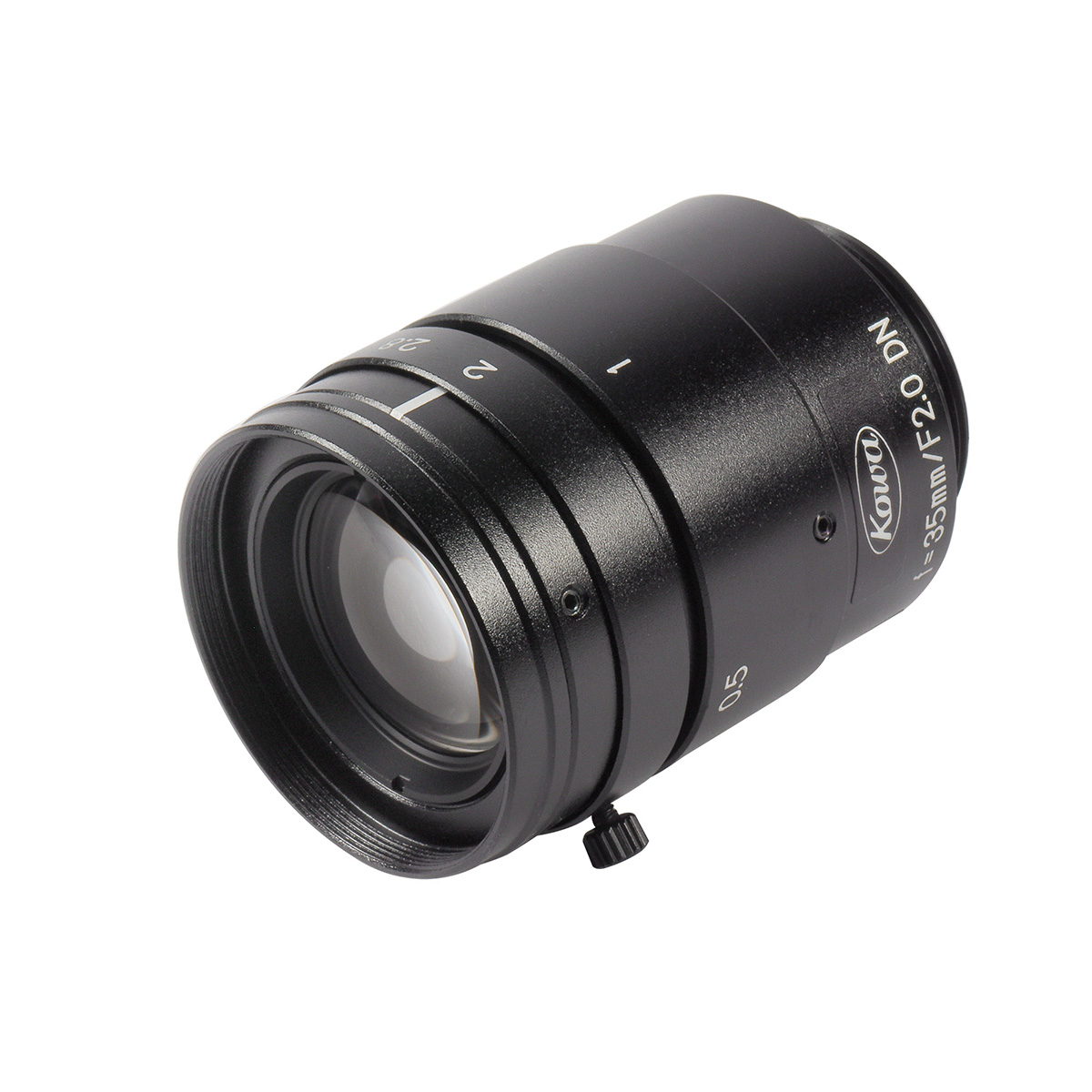

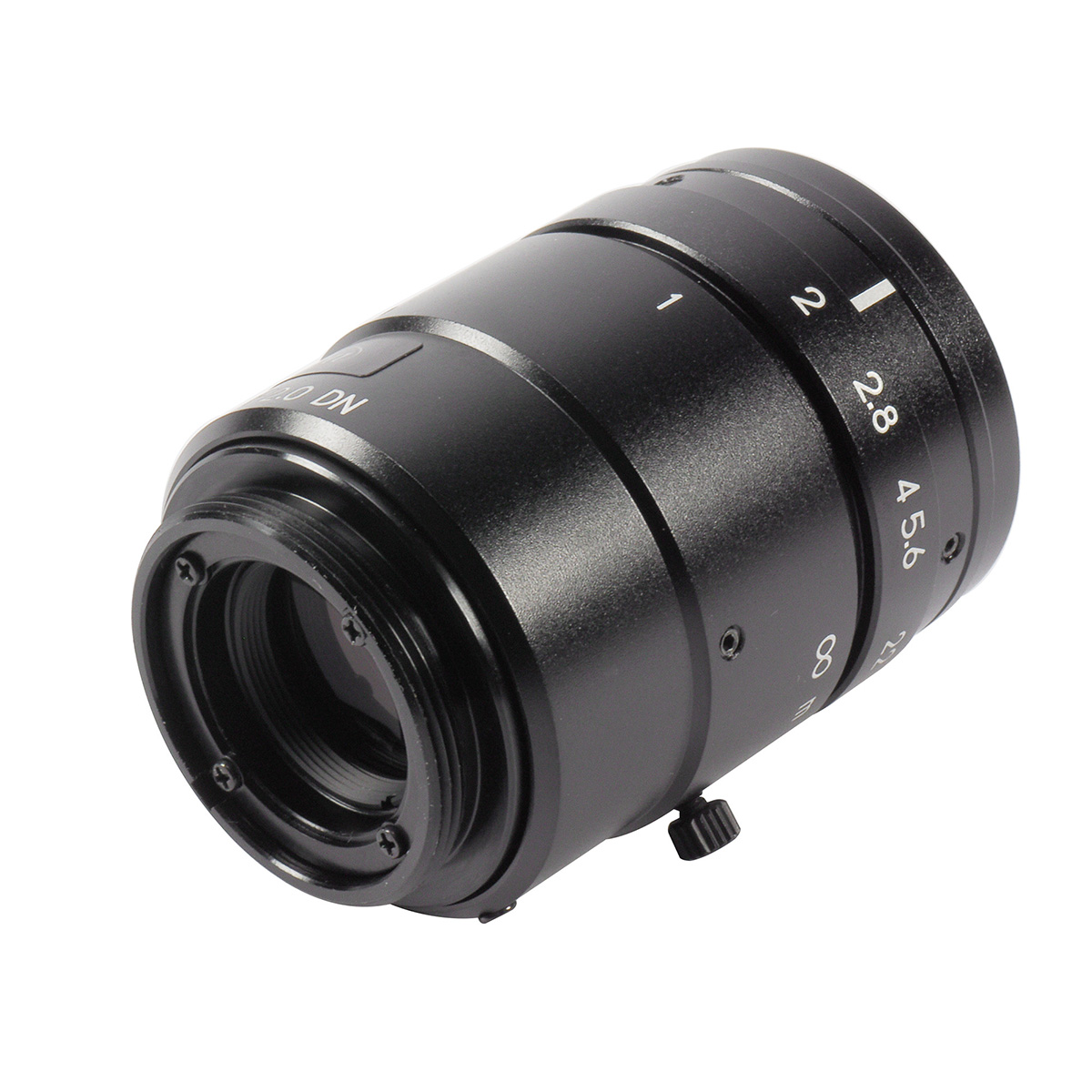

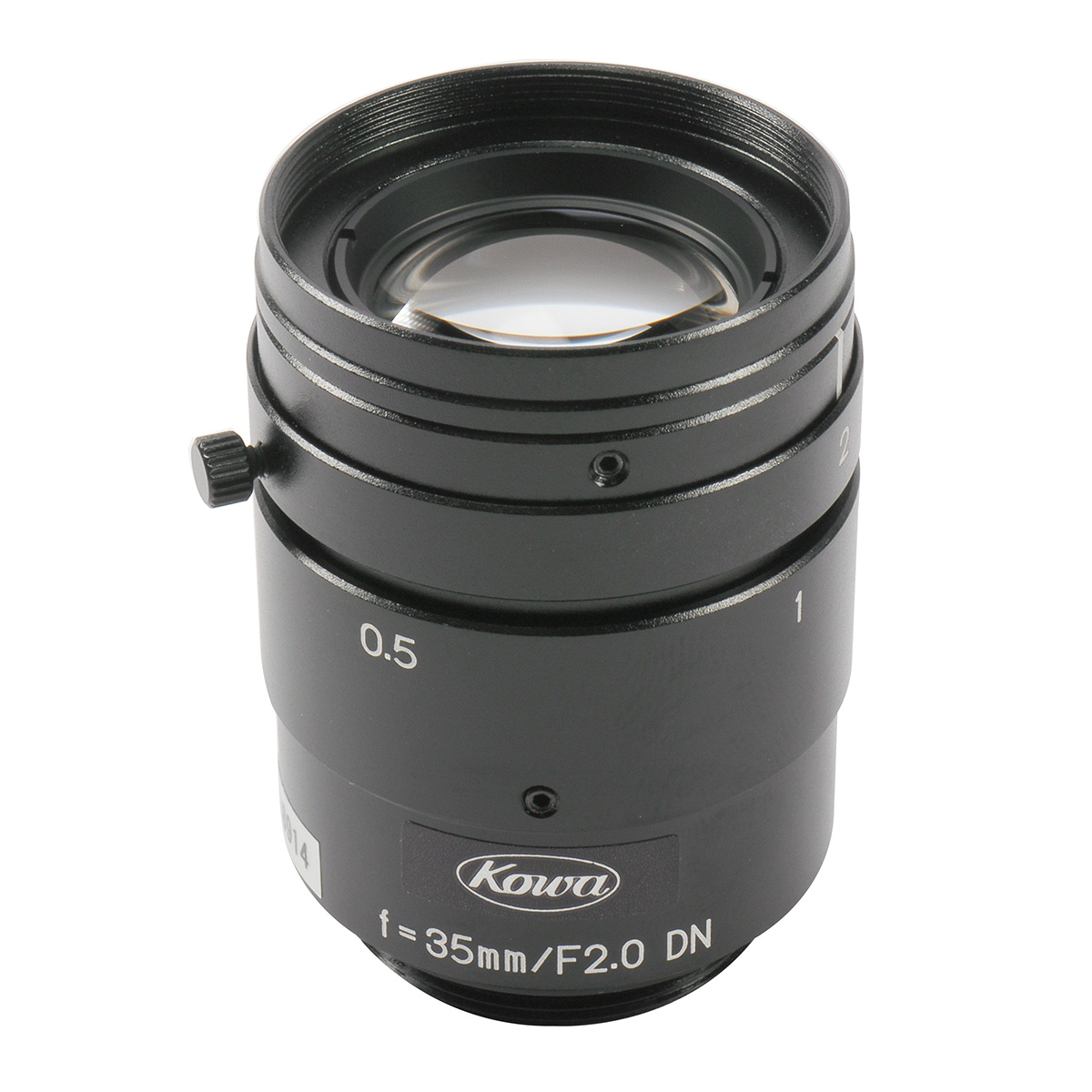

| Description | Lens by Kowa |
| Articlenumber (Eureca): | 06.17.0081 |
| Origin: | Japan |
| Manufacturer: | Kowa |
| Focal length | 35 mm |
| Pixel size | 3.5 µm |
| Mount | C-Mount |
| Iris Control | Manual |
| Aperture | F2–22 |
| Design Wavelength | VIS 380–780; IR-corrected (Day & Night) nm |
| Focus range [m] | 0.3–∞ m |
| Focus Control | Manual |
| Shooting range at MOD, horizontal | 75.8 mm |
| Shooting range at MOD, vertical | 56.6 mm |
| Distortion | −0.3 % |
| Backfocus [mm] | 19.2 mm |
| Filter thread | M30.5 × P0.5 |
| Dimension [mm] | Ø34 × 43 |
| Weight | 100 g |
| Operating Temperature | −10 °C – +50 °C |
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 01.12.2021
