DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0083
Origin: Japan
Manufacturer: Kowa
Focal length60 mm
Pixel size5 µm
Iris ControlManual
Design WavelengthVIS 380–780; IR-corrected (Day & Night) nm
Focus range [m]1–∞ m
Focus ControlManual
Shooting range at MOD, horizontal216.9 mm
Shooting range at MOD, vertical162.1 mm
Distortion−0.06 %
Backfocus [mm]15.7 mm
Filter threadM37.5 × P0.5
Dimension [mm]Ø49.2 × 54.6
Weight200 g
Operating Temperature−10 °C – +50 °C

To the product series

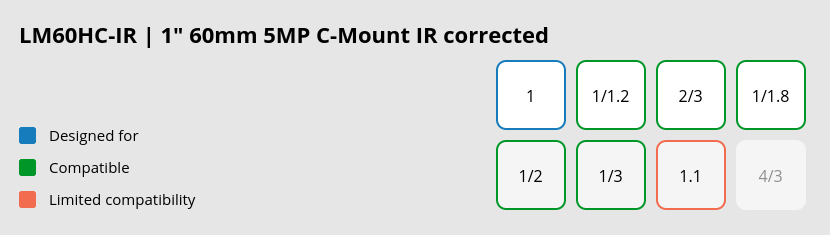

  • For sensors with a pixel size from 5.0 µm
  • Suitable for Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
  • Very good brightness in the peripheral areas
  • Powerful compact lens
  • Very low distortion
  • IR-corrected
  • Application: ITS/traffic monitoring

Documents for download:

Relative Illumination
Transmission data

Other versions of the article and matching products:

  • LM50HC-IR: same series, next smaller focal length (50 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 01.11.2021
