LM3QS28

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0292
Origin: Japan
Manufacturer: Kowa
Focal length3 mm
Pixel size3.2 µm
MountS-Mount
ApertureF2.8
Design WavelengthVIS 380–780 nm
Focus range [m]0.1–∞ m
Shooting range at MOD, horizontal86.7 mm
Shooting range at MOD, vertical70.6 mm
Distortion0.02 %
Backfocus [mm]2.6 mm
Dimension [mm]Ø16 × 22.3 mm
Weight6 g
Operating Temperature−10 °C – +50 °C

To the product series

These lenses can be customized upon request:

  • Modification of the aperture
  • Adding an IR cut filter
  • Gluing the inner glass elements for robustness against shocks and vibrations
  • Even a completely new optical and mechanical design is possible.
  • Application: Machine Vision







Documents for download:

Datasheet
Field Curvature / Distortion
MTF
Relative Illumination
Transmission data

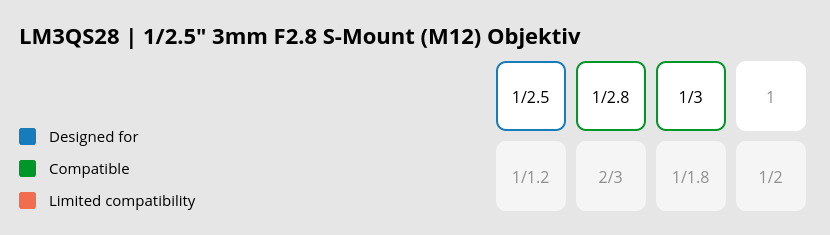

Compatible sensor sizes (inch)



Other versions of the article and matching products:

  • LM3QS56: same series, aperture F5.6
  • LM3QS40: same series, aperture F4.0

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 01.28.2021
