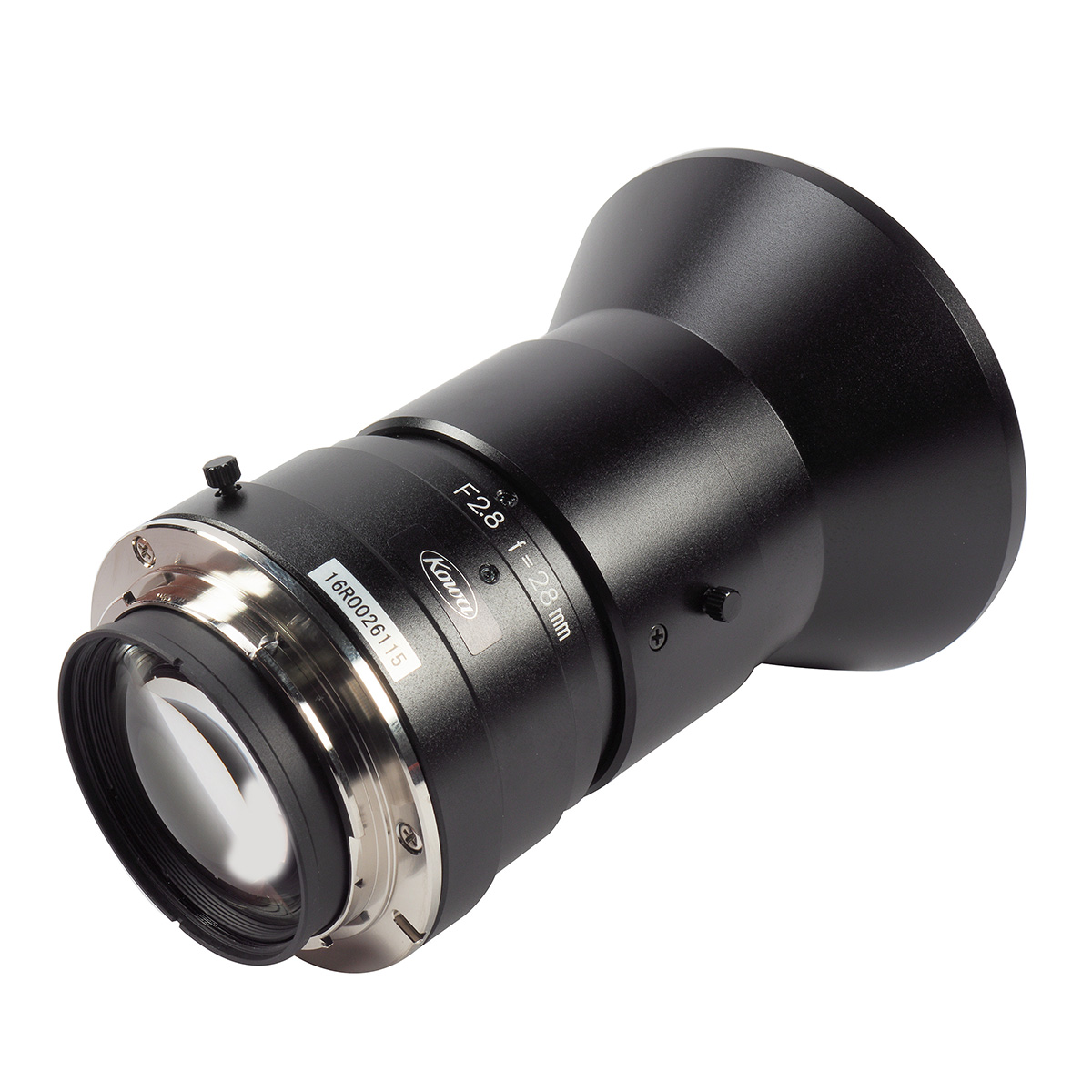

LM28LF

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0086
Origin: Japan
Manufacturer: Kowa
Focal length28 mm
Sensor formatØ43.3 mm
Pixel size7.5 µm
MountF-Mount
Iris ControlManual
ApertureF2.8–F16
Design WavelengthVIS 380–780 nm
Focus range [m]0.3–∞ m
Focus ControlManual
Filter threadM72 × P0.75
Dimension [mm]Ø75 × 98
Weight500 g

To the product series

  • For sensors with a pixel size from 7.5 µm
  • Optimized for 4K line scan cameras
  • Large image circle of 46 mm






Documents for download:

Datasheet
Transmission data
Field Curvature / Distortion
MTF
Relative Illumination



More pictures of the product:

Front View

Front View

Mount

Mount


Other versions of the article and matching products:

  • LM35LF: same series, next larger focal length (35mm)
  • LM28LF-48: same lens, TFL-II mount

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 11.24.2020
