LM50HC-SW

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0078
Origin: Japan
Manufacturer: Kowa
Focal length50 mm
MountC-Mount
Iris ControlManual
ApertureF1.4–F16
Design WavelengthSWIR 1000–2000 nm
Focus range [m]0.6–∞ m
Focus ControlManual
Distortion0.05 %
Backfocus [mm]14.8 mm
Filter threadM40.5 × P0.5
Dimension [mm]Ø49 × 48
Weight200 g
Operating Temperature−10 °C – +50 °C

To the product series

  • Optimized for SWIR: High transmission from 800 nm up to 1900 nm
  • For applications such as solar cell inspection, waste sorting and biological research
  • Application: Machine Vision






Documents for download:

Datasheet
Field Curvature / Distortion
MTF
Relative Illumination
Transmission data



More pictures of the product:

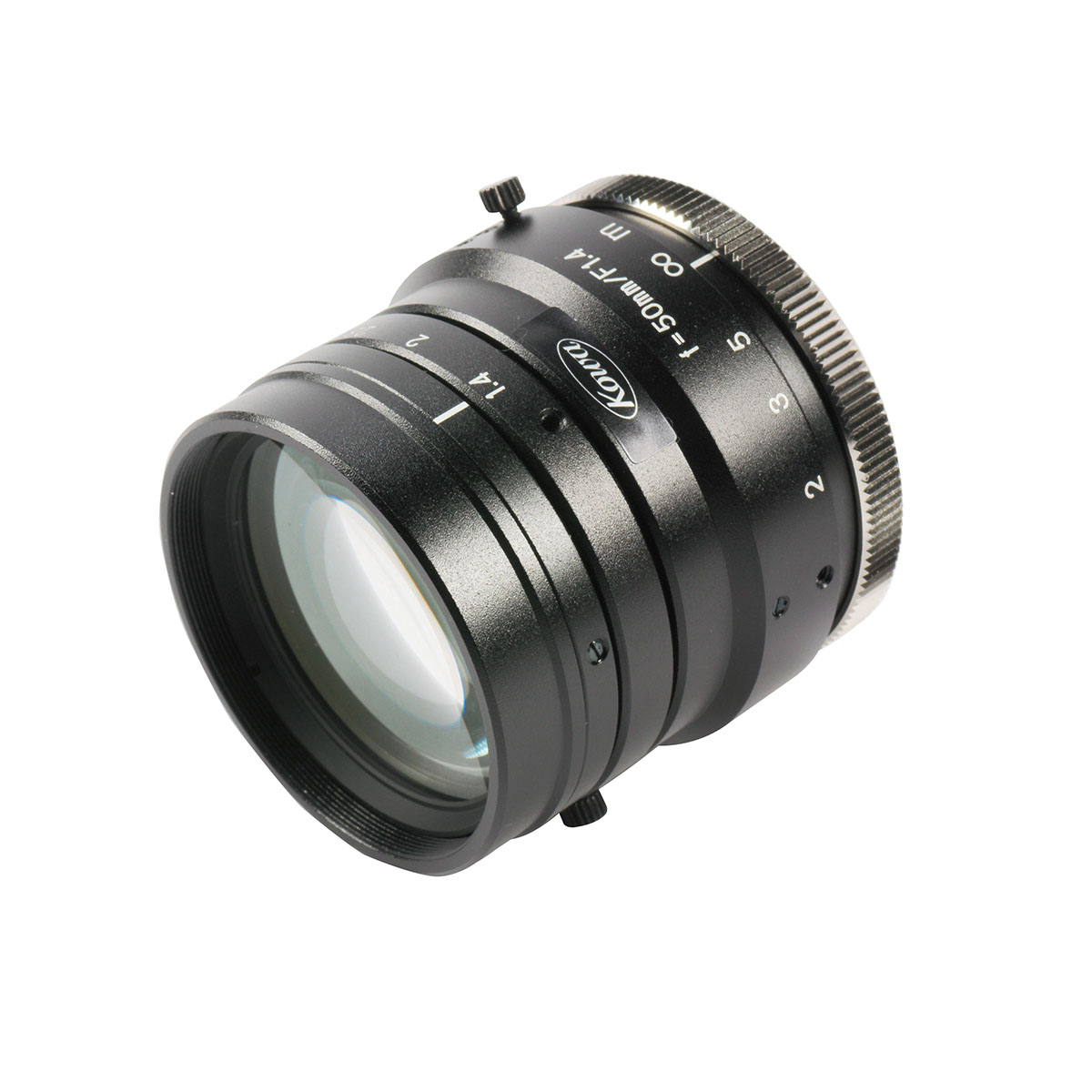

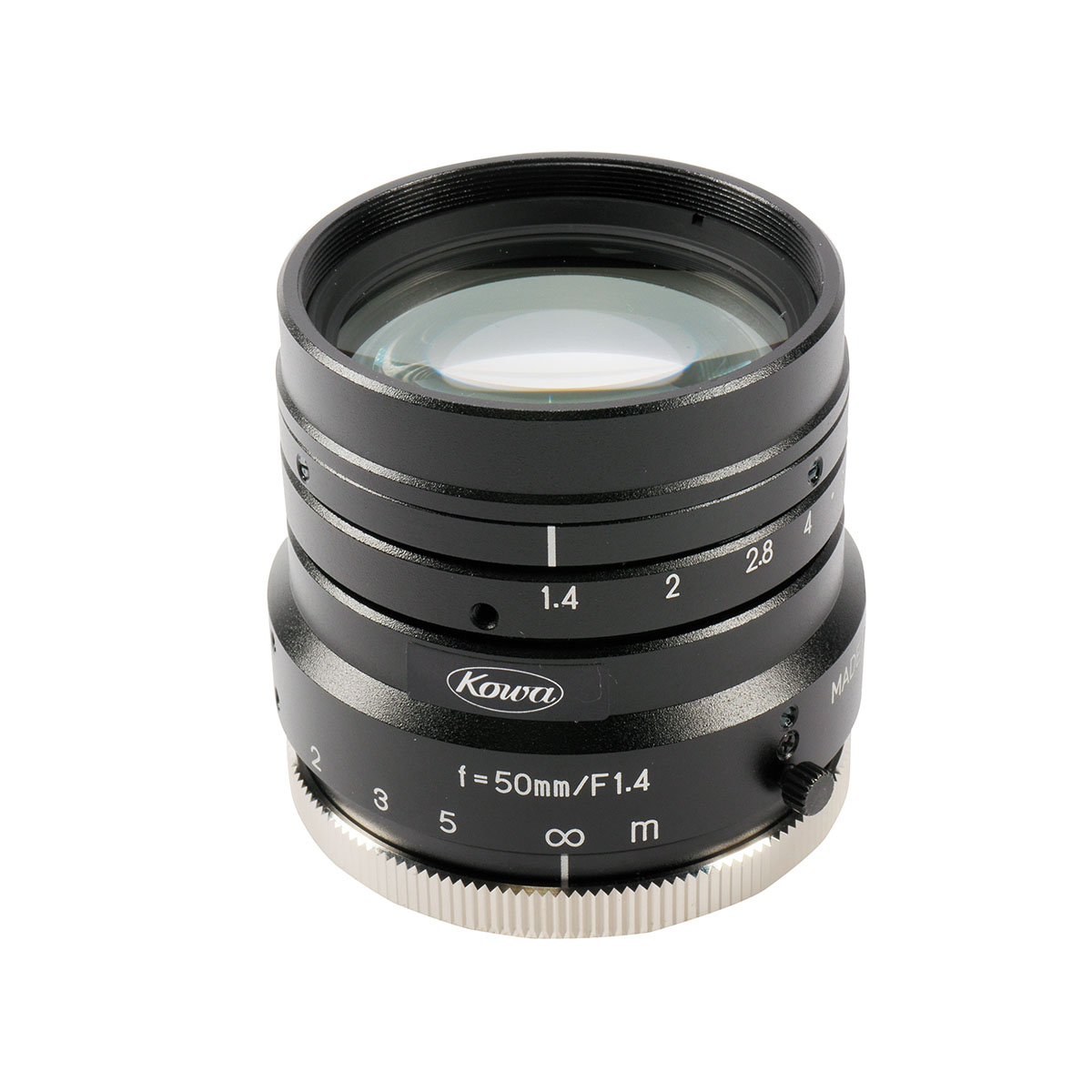

Front View

Front View

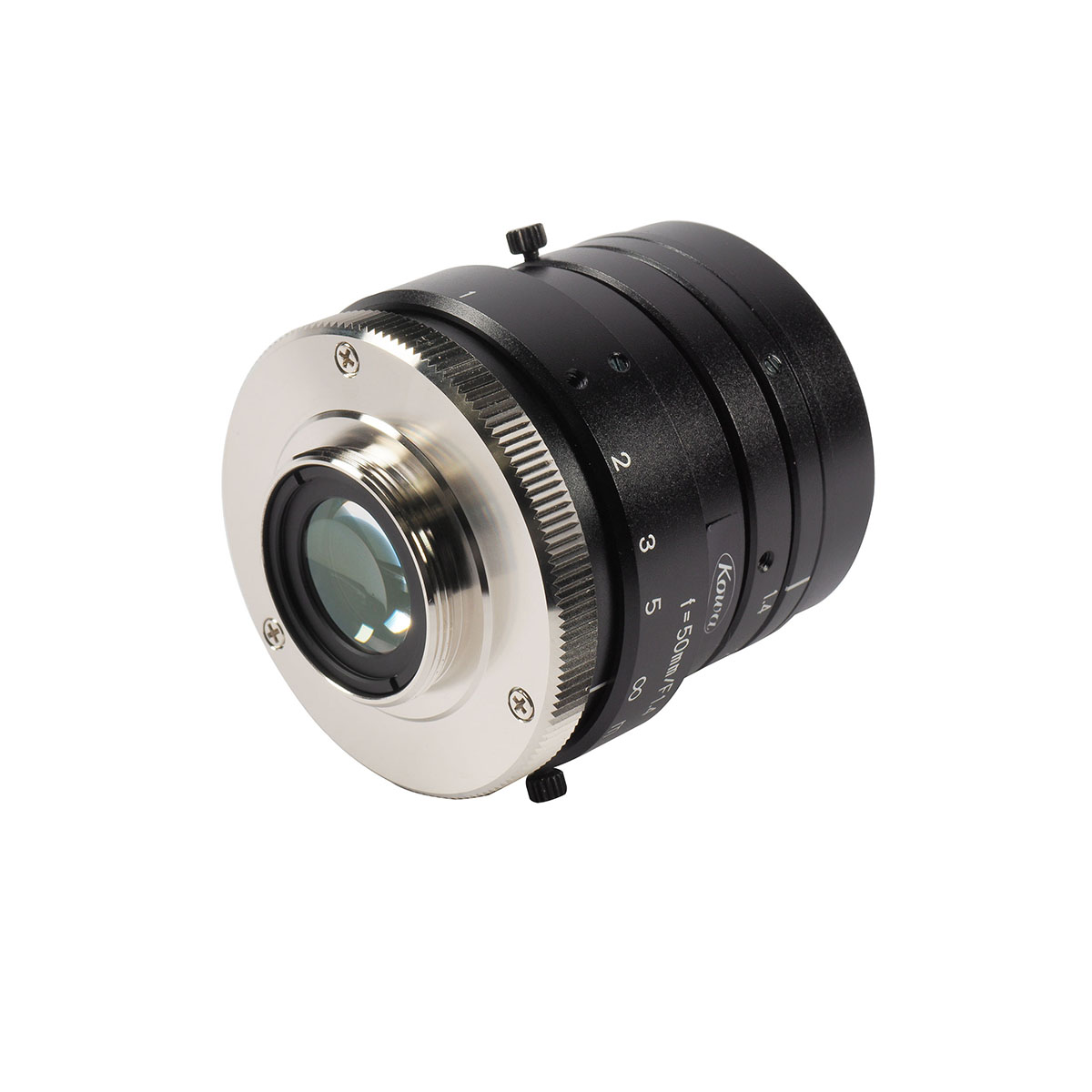

Mount View

Mount View

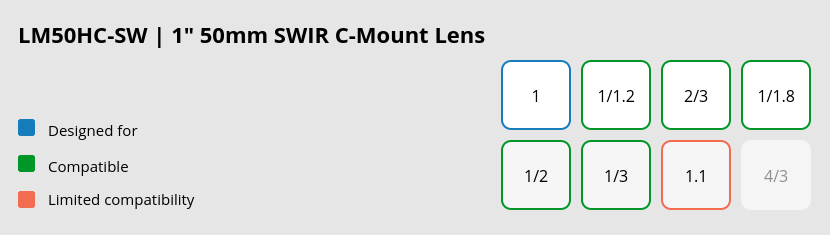

Compatible sensor sizes (inch)

Compatible sensor sizes (inch)


Other versions of the article and matching products:

  • LM35HC-SW: same series, next smaller focal length (35mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 12.13.2020
