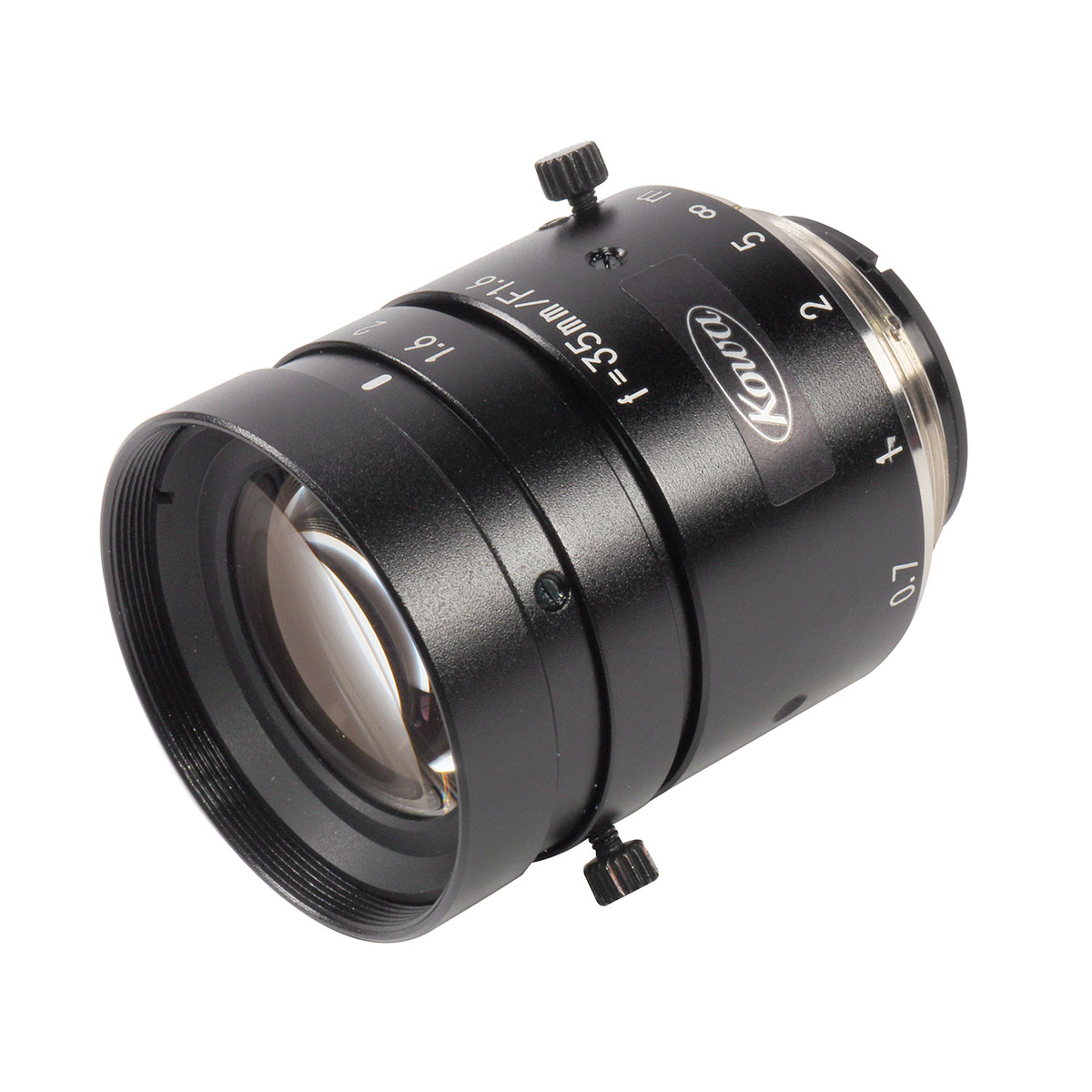

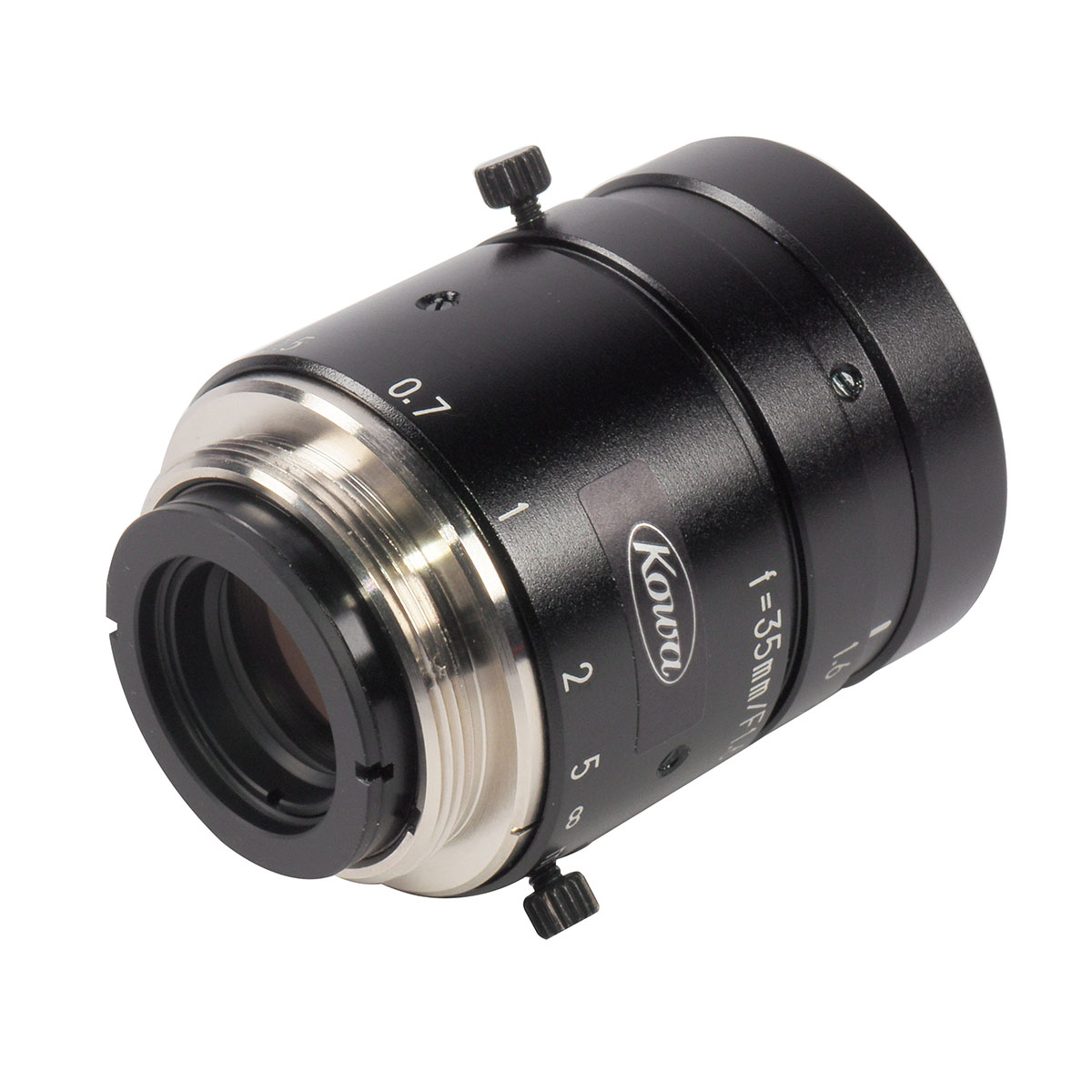

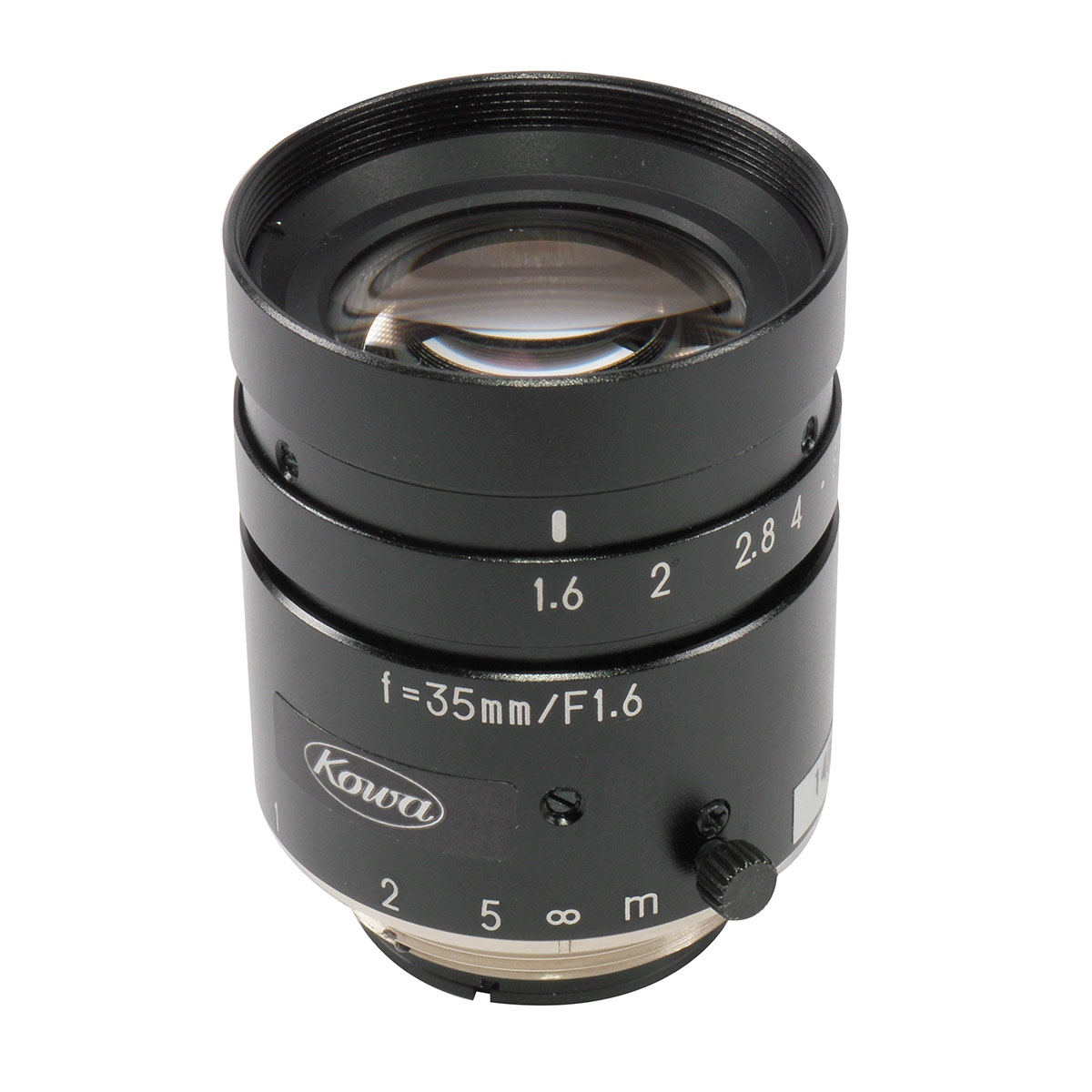

LM35JC

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0065
Origin: Japan
Manufacturer: Kowa
Focal length35 mm

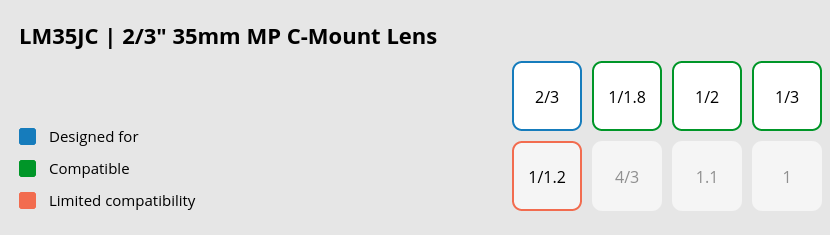

Sensor format2/3 ″
Pixel size5 µm
MountC-Mount
Iris ControlManual
ApertureF1.6–F16
Design WavelengthVIS 380–780 nm
Focus range [m]0.3–∞ m
Focus ControlManual
Shooting range at MOD, horizontal76 mm
Shooting range at MOD, vertical56.9 mm
Distortion−0.21 %
Backfocus [mm]14.9 mm
Filter threadM30.5 × P0.5
Dimension [mm]Ø32 × 36.5
Weight85 g
Operating Temperature−10 °C – +50 °C

To the product series

  • For sensors with a pixel size from 5.0 µm
  • Suitable for e2v EV76C560, CMOSIS CMV2000 and Aptina MT9M001 sensors and many more







Documents for download:

Datasheet
Field Curvature / Distortion
MTF
Relative Illumination
Transmission data



Other versions of the article and matching products:

  • LM25JC: same series, next smaller focal length (25 mm)
  • LM50JC: same series, next larger focal length (50 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 12.16.2020
